| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

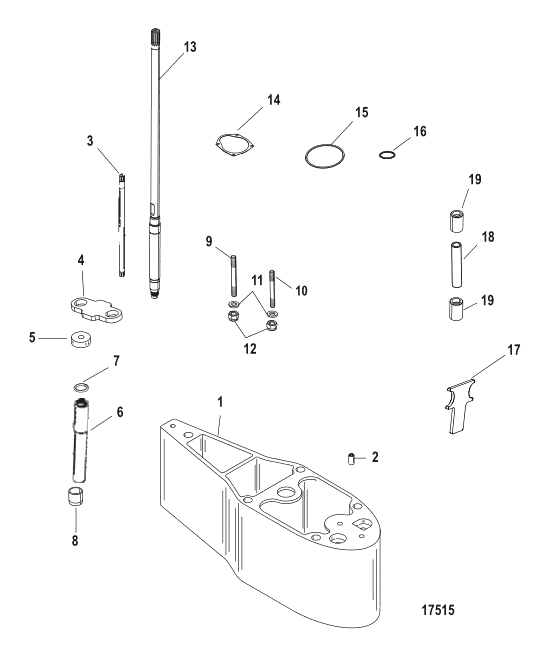

| - | 12092A10 | EXTENSION KIT (Black) Driveshaft Housing | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 12092A10 | EXTENSION KIT (Gray) Driveshaft Housing | 12092A11 | NLA |
|
$0.00 | $0.00 | 1 | |
| - | 12092A13 | EXTENSION KIT (Black) Driveshaft Housing | ACT | $1,120.71 | $1,027.39 | 1 | |||
| - | 12092A14 | EXTENSION KIT (Gray) Driveshaft Housing | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 12092A3 | ----SPACER KIT (Black) | ACT | $382.58 | $360.28 | 1 | |||
| 1 | 12092A4 | ----SPACER KIT (Gray) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 43044 | --------PIN Dowel - Without Hole (.375 x .625) | ACT | $2.50 | $2.44 | 1 | |||
| 2 | 8M0084244 | --------PIN Dowel - With Hole (.375 x .625) | 43043 | SS |
|
$3.30 | $3.22 | 1 | |
| 3 | 43049A1 | --------SHIFT SHAFT ASSEMBLY (12092A10 and 12092A11) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 853908A1 | --------SHIFT SHAFT ASSEMBLY (12092A13 and 12092A14) | ACT | $97.42 | $93.70 | 1 | |||
| 4 | 11288001 | ----BUMPER Bottom Yoke | 11288 | SS |
|
$18.83 | $18.50 | 1 | |
| 5 | 11289 | ----SPACER | ACT | $9.40 | $9.17 | 1 | |||
| 6 | 17243A1 | ----TUBE ASSEMBLY Water - Extension | ACT |
|
$58.50 | $56.27 | 1 | ||
| 7 | 8M0204645 | --------O-RING (.796 x .139) | 21836 | SS |
|
$2.39 | $2.33 | 1 | |
| 8 | 38970 | --------SEAL | ACT | $5.10 | $4.98 | 1 | |||
| 9 | 903503 | ----STUD (M10 x 190) | ACT | $25.50 | $25.04 | 4 | |||
| 10 | 903502 | ----STUD (M10 x 227) | ACT | $86.08 | $82.80 | 1 | |||
| 11 | 45176 | ----WASHER (.453 x .812 x .10 | ACT | $1.50 | $1.47 | 5 | |||
| 12 | 40140 | ----NUT (M10) | 13914 | SS |
|
$3.39 | $3.30 | 5 | |
| 13 | 43032A4 | ----DRIVESHAFT ASSEMBLY | ACT | $729.86 | $686.65 | 1 | |||
| 14 | 430341 | ----GASKET Aluminum Cover | ACT | $4.80 | $4.69 | 1 | |||
| 15 | 8M0214974 | ----O-RING (3.609 x .139) | 97386 | SS |
|
$8.01 | $7.81 | 1 | |
| 16 | 8M0204681 | ----O-RING (1.424 x .103) | 45710 | SS |
|
$3.79 | $3.69 | 1 | |
| 17 | 8M0000516 | ----BUMPER Top Yoke (1.78) (12092A10 and 12092A11) | 888821 | SS |
|
$15.60 | $15.22 | 1 | |
| 17 | 88882 | ----BUMPER Top Yoke Top Yoke (1.90) (12092A13 and 12092A14) | ACT | $10.90 | $10.63 | 1 | |||
| 18 | 8M4501430 | ----TUBE Water (4.60 Inches) | 8289371 | SS |
|
$43.24 | $42.47 | 1 | |
| 19 | 430232 | ----SEAL Water Tube | ACT | $11.90 | $11.61 | 2 |
