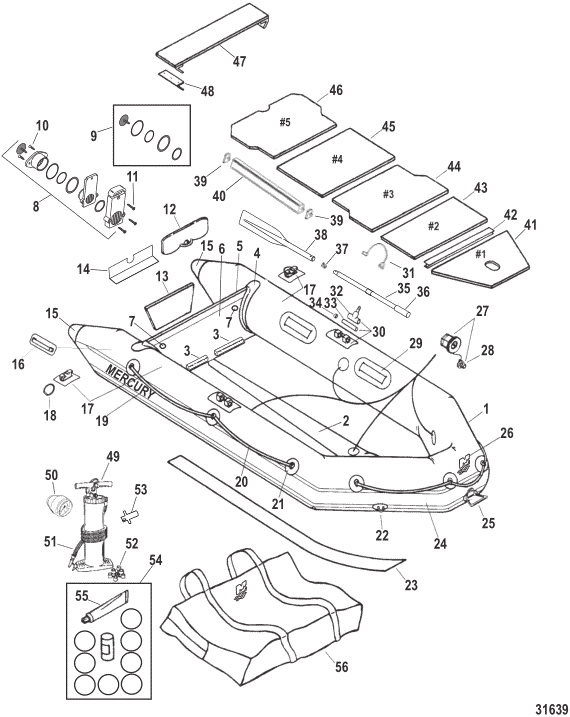

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 889365004 | SKIN ASSEMBLY PVC (11 Feet 2 Inches) Dark Green | NLA |  | $0.00 | $0.00 | 1 | ||
| 2 | 880976003 | ----KEEL PVC (L233 cm) Black | ACT | | $0.00 | $0.00 | 1 | ||
| 3 | 899677 | ----RETAINER (L20 cm) Black | NLA | | $1.98 | $1.95 | 2 | ||
| 4 | 809782005 | ----HOLDER Transom - PVC Black (T24 mm) | ACT | $0.00 | $0.00 | 2 | |||
| 5 | 855403009 | ----CAP Transom Cover (W24 mm x 90 cm) PVC Black | ACT | $0.00 | $0.00 | 1 | |||
| 6 | 827686T10 | ----TRANSOM ASSEMBLY ABS Coated - Black (T24 mm) | NLA | | $0.00 | $0.00 | 1 | ||
| 7 | 898172 | --------TOWING HOLE SET (13 mm x T24 mm) Stainless Steel | NLA | | $3.49 | $3.43 | 2 | ||
| 8 | 899764A02 | ----DRAIN VALVE ASSEMBLY Black (24 mm) | NLA | | $7.29 | $7.19 | 1 | ||
| 9 | 899676A02 | --------REPAIR KIT Drain Valve | ACT | $19.70 | $19.21 | 1 | |||
| 12 | 811317 | ----PAD Transom - Aluminum | ACT | $30.33 | $29.91 | 1 | |||
| 13 | 8113362 | ----PLATE Transom - Black Wood | NLA | | $8.70 | $8.58 | 1 | ||
| 14 | 899878001 | ----PROTECTOR Transom Bottom - PVC Black | NLA | | $1.01 | $1.00 | 1 | ||
| 15 | 899877002 | ----END CONE CAP PVC - Black With Flat End (120 mm x H96 mm) | ACT | $8.87 | $8.75 | 2 | |||
| 16 | 8590072 | ----HANDLE/LIFTING Side - PVC Black | NLA | | $4.96 | $4.91 | 2 | ||
| 17 | 859006005 | ----RETAINER Oar And Rope Holder - PVC Black | NLA | | $2.19 | $2.16 | 2 | ||
| 18 | 899691 | --------BUNGEE STRAP Black | NLA | | $0.36 | $0.36 | 2 | ||
| 19 | 883901006 | ----LOGO Side - Raised Mercury - PVC - Black On Dark Green | ACT | $0.00 | $0.00 | 2 | |||
| 20 | 8097783 | ----ROPE (12.00 Feet) Black | NLA | | $10.19 | $10.05 | 1 | ||
| 21 | 859008003 | ----HOLDER Rope - PVC Black | NLA | | $1.54 | $1.53 | 8 | ||
| 22 | 811309004 | ----D RING Large - Stainless Steel On Dark Green PVC Fabric | NLA | | $4.43 | $4.37 | 2 | ||
| 23 | 824412 | ----RUBSTRAKE Bottom - PVC Black With Three Ridges (L3.5 m x W8 cm) | NLA | | $21.58 | $21.27 | 1 | ||
| 24 | 808575013 | ----RUBSTRAKE Side - PVC - Two Black Lines On Dark Green | ACT | $0.00 | $0.00 | 1 | |||
| 25 | 809777005 | ----HANDLE/LIFTING Bow - Black Nylon On Dark Green PVC Fabric | ACT | $9.39 | $9.22 | 1 | |||
| 26 | 899680 | ----LOGO Bow - PVC - Black M And Wave On Dark Green | ACT | $0.00 | $0.00 | 1 | |||
| 27 | 879184A02 | ----VALVE ASSEMBLY Air - Black - M Logo | ACT | | $26.59 | $26.11 | 4 | ||
| 28 | 879184003 | --------CAP ASSEMBLY Air Valve - Black - M Logo | ACT | $2.32 | $2.29 | 4 | |||
| 29 | 818701008 | ----WEBBING Seat - Black Web/PVC Dark Green Fabric | ACT | | $6.82 | $6.71 | 4 | ||
| 30 | 899684A01 | ----OARLOCK ASSEMBLY Black | NLA | | $15.32 | $15.12 | 2 | ||
| 31 | 8M0054770 | --------CAP/STRING AND CLIP Oarlock - Black | 811329 | SS | | $5.00 | $4.93 | 2 | |
| 32 | 824410 | --------HOLDER Oarlock - PVC Black | ACT | $9.07 | $8.95 | 2 | |||
| 33 | 824411 | --------PIN Oarlock | ACT | $1.62 | $1.60 | 2 | |||
| 34 | 809779 | --------CAP Oarlock - PVC Black | NLA | | $0.86 | $0.85 | 2 | ||
| 35 | 885159002 | OAR HANDLE ASSEMBLY (110 cm) Black - Center Hole Location | NLA | | $15.32 | $15.12 | 2 | ||
| 36 | 811836 | ----GRIP Oar Handle - Black | NLA | | $5.21 | $5.13 | 2 | ||
| 37 | 824417 | ----CLIP Oar Handle | ACT | $2.31 | $2.29 | 2 | |||
| 38 | 899688 | OAR BLADE Black - M Logo | NLA | | $16.95 | $16.74 | 2 | ||
| 39 | 8095221 | CAP Side Joiner - Front Starboard Or Rear Port | ACT | $2.31 | $2.29 | 2 | |||
| 39 | 8095231 | CAP Side Joiner - Rear Starboard Or Front Port | ACT | $2.31 | $2.29 | 2 | |||
| 40 | 889381 | SIDE JOINER (L100 cm) Aluminum | NLA | | $43.72 | $43.12 | 2 | ||
| 41 | 889366T01 | FLOORBOARD #1 Light Gray | NLA | | $61.08 | $59.30 | 1 | ||
| 42 | 811326001 | H FITTING I Shape Aluminum (600 mm x 13 mm) | NLA | | $14.01 | $13.82 | 1 | ||
| 42 | 811326 | H FITTING I Shape Aluminum (700 mm x 13 mm) | ACT | $16.33 | $16.10 | 3 | |||
| 43 | 891894T01 | FLOORBOARD #2 Lodestar Light Gray | NLA | | $73.30 | $71.16 | 1 | ||
| 44 | 889371T01 | FLOORBOARD #3 Lodestar Light Gray | NLA | | $71.57 | $69.48 | 1 | ||
| 45 | 889375T01 | FLOORBOARD #4 Lodestar Light Gray | NLA | | $75.06 | $72.88 | 1 | ||
| 46 | 889377T01 | FLOORBOARD #5 Lodestar Light Gray | NLA | | $69.84 | $67.82 | 1 | ||
| 47 | 880960002 | SEAT ASSEMBLY Wood - Black (L85 cm x W20 cm x T22 mm) | NLA | | $42.55 | $41.96 | 1 | ||
| 48 | 811313 | ----BRACKET Seat - Black Plastic | ACT | $8.36 | $8.24 | 2 | |||
| 49 | 889345Q01 | PUMP ASSEMBLY Air - Double Action | ACT | | $50.61 | $49.15 | 1 | ||
| 50 | 889346 | ----GAUGE Air Pump | ACT | $21.42 | $21.12 | 1 | |||
| 51 | 889348 | ----HOSE Air Pump | ACT | $14.01 | $13.82 | 1 | |||
| 52 | 889347 | ----ADAPTER SET Air Pump Hose | ACT | $17.25 | $16.94 | 1 | |||
| 53 | 8M0150135 | ADAPTER Air Pump | ACT | $3.10 | $3.03 | 1 | |||
| 54 | 883902002 | REPAIR KIT PVC - Black And Dark Green | ACT | | $6.97 | $6.88 | 1 | ||
| - | 896317 | ----REMOVER/INSTALLER TOOL Air Valve - Plastic | ACT | $3.33 | $3.29 | 1 | |||
| 55 | 808648 | ----CEMENT PVC (30 ml) | ACT | $6.97 | $6.88 | 1 | |||
| 56 | 811327T2 | BAG Storage/Carrying - Flap Style - M Logo | ACT | $128.37 | $122.71 | 1 |
