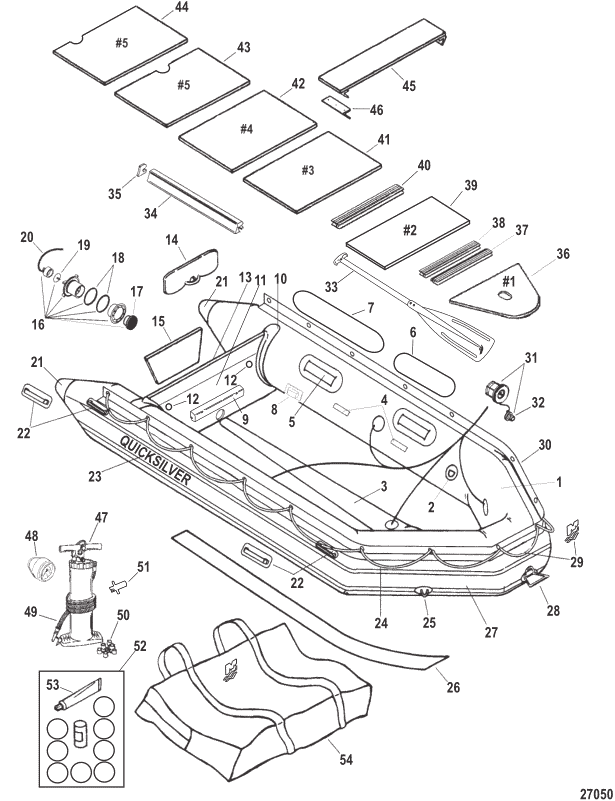

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 896491 | SKIN ASSEMBLY Achilles Hypalon - Red/Black (14 Feet 1 Inch) | ACT |  | $6,149.08 | $5,636.99 | 1 | ||
| 1 | 896491002 | SKIN ASSEMBLY Achilles Hypalon - Red/Black (14 Feet 1 Inch) | ACT | | $5,465.87 | $5,010.68 | 1 | ||
| 2 | 891697 | ----D RING Medium - Stainless Steel On Achilles Red Hypalon Fabric | ACT | $18.66 | $18.41 | 4 | |||
| 3 | 891692001 | ----KEEL Achilles Hypalon (L298 cm) Black | NLA | | $338.67 | $323.72 | 1 | ||
| 4 | 891696 | ----STRAP T Paddle - Red Hypalon Fabric With Black Velcro | ACT | $2.03 | $2.01 | 4 | |||
| 5 | 891695 | ----WEBBING Seat - Black Web/Hypalon Red Fabric | ACT | $15.93 | $15.72 | 4 | |||
| 6 | 879150132 | ----WEAR PATCH Hypalon - Red (L78.3 cm x W29 cm) | 899717001 | REP | | $0.00 | $0.00 | 2 | |
| 7 | 879150133 | ----WEAR PATCH Hypalon - Red (L123.3 cm x W29 cm) | 899718001 | REP | | $0.00 | $0.00 | 2 | |
| 8 | 891694 | ----STOPPER Side Joiner - Hypalon Black | NLA | | $6.79 | $6.71 | 4 | ||
| 9 | 896479 | ----RETAINER PVC (L30 x W3 x H2cm) Black | NLA | | $2.04 | $2.02 | 1 | ||
| 10 | 891693 | ----HOLDER Transom - Hypalon Black (T36 mm) | NLA | | $52.92 | $51.38 | 2 | ||
| 11 | 8095364 | ----TRANSOM ASSEMBLY PVC Coated - Black | NLA | | $202.58 | $193.63 | 1 | ||
| 11 | 809536T06 | ----TRANSOM ASSEMBLY PVC Coated - Black | NLA | | $243.65 | $229.45 | 1 | ||
| 12 | 898172003 | --------TOWING HOLE SET (13 mm x T36 mm) Stainless Steel | NLA | | $0.00 | $0.00 | 2 | ||
| 12 | 898172001 | --------TOWING HOLE SET (28 mm x T36 mm) Stainless Steel | NLA | | $4.23 | $4.17 | 2 | ||
| 13 | 8026072 | ----CAP Transom Cover (W36 mm x 117 cm) PVC Black | NLA | | $5.09 | $5.02 | 1 | ||
| 14 | 811317 | ----PAD Transom - Aluminum | ACT | $30.33 | $29.91 | 1 | |||
| 15 | 8113362 | ----PLATE Transom - Black Wood | NLA | | $8.70 | $8.58 | 1 | ||
| 16 | 830222A4 | ----PLUG ASSEMBLY Drain - Black (24 mm) | ACT | | $22.80 | $22.47 | 1 | ||
| 17 | 881829 | --------FILTER/SCREEN Drain Plug - Light Gray | ACT | $2.25 | $2.22 | 1 | |||
| 18 | 830221 | --------GASKET Drain Plug | NLA | | $1.12 | $1.11 | 2 | ||
| 19 | 824409 | --------CHECK VALVE Drain Plug | ACT | $1.16 | $1.15 | 1 | |||
| 20 | 8097802 | --------CAP/STRING AND CLIP Drain Plug - Black | ACT | $6.31 | $6.23 | 1 | |||
| 21 | 899877004 | ----END CONE CAP Hypalon - Black With Flat End (120 mm x H96 mm) | ACT | $0.00 | $0.00 | 2 | |||
| 22 | 891703 | ----HANDLE/LIFTING Side - Black | ACT | $37.33 | $36.80 | 6 | |||
| 23 | 883915001 | ----LOGO Side - Raised Quicksilver - Hypalon - Black On Red | NLA | | $11.06 | $10.91 | 2 | ||
| 24 | 8097783 | ----ROPE (12.00 Feet) Black | NLA | | $10.19 | $10.05 | AR | ||
| 25 | 891702 | ----D RING Large - Stainless Steel On Achilles Black Hypalon Fabric | NLA | | $13.61 | $13.43 | 2 | ||
| 26 | 891701 | ----RUBSTRAKE Bottom - Hypalon Black With Three Ridges (L3.5 m x W8 cm) | NLA | | $56.27 | $54.12 | 1 | ||
| 27 | 891700 | ----RUBSTRAKE Side - Hypalon - With One Red Line On Black (L9.5 m x W10 cm) | NLA | | $255.45 | $244.20 | 1 | ||
| 28 | 891699 | ----HANDLE Bow Lifting - Chrome/Black Fabric | NLA | | $47.68 | $47.01 | 1 | ||
| 29 | 883916001 | ----LOGO- M Bow - Hypalon - Black On Red | ACT | $0.00 | $0.00 | 1 | |||
| 30 | 809784016 | ----LACING CUFF ASSEMBLY Hypalon Black Hogging With Eyelets (L8.15 m) | 809784009 | SS | | $0.00 | $0.00 | 1 | |
| 31 | 879184A02 | ----VALVE ASSEMBLY Air - 8 Slots - Black | 8098871 | SS | | $26.59 | $26.11 | 4 | |
| 32 | 879184003 | --------CAP ASSEMBLY Air Valve - Black | 8096962 | SS | | $2.32 | $2.29 | 4 | |
| 33 | 8809991 | T PADDLE (130 cm) Black | ACT | $33.27 | $32.81 | 2 | |||
| 34 | 809521008 | SIDE JOINER (L90 cm) Aluminum | NLA | | $142.60 | $136.31 | 4 | ||
| 35 | 809522004 | CAP Side Joiner - Front Port Or Rear Starboard | NLA | | $1.77 | $1.75 | 4 | ||
| 35 | 809522005 | CAP Side Joiner - Rear Port Or Front Starboard | NLA | | $1.68 | $1.66 | 4 | ||
| 36 | 896467A01 | FLOORBOARD #1 Fiberglass - Dark Gray (L61 cm x W99 cm x T12 mm) | 896467 | SS/NLA | | $104.75 | $100.11 | 1 | |
| 37 | 809524003 | H CHANNEL Tongue Style - A Shape (L90 cm x D15 mm) Aluminum | ACT | $23.33 | $22.99 | 1 | |||
| 38 | 809525003 | H CHANNEL Groove Style - H Shape (L90 cm x D15 mm) | NLA | | $17.44 | $17.19 | 1 | ||
| 39 | 896468A01 | FLOORBOARD #2 Fiberglass - Dark Gray (L30 cm x W101/112 cm x T12 mm) | 896468 | SS/NLA | | $314.24 | $300.39 | 1 | |
| 40 | 896478002 | H CHANNEL Groove - M Shape (L100 cm x W24 mm x T12 mm) | 896478 | SS/NLA | | $20.95 | $20.65 | 1 | |
| 41 | 896469T | FLOORBOARD #3 Aluminum (L71 cm x W110 cm x T22 mm) | 896469 | SS/NLA | | $314.23 | $300.36 | 1 | |
| 42 | 896470T | FLOORBOARD #4 Aluminum (L71 cm x W110 cm x T22 mm) | 896470 | SS/NLA | | $312.49 | $298.69 | 1 | |
| 43 | 896471T | FLOORBOARD #5 Aluminum (L71 cm x W110 cm x T22 mm) | 896471 | SS/NLA | | $336.19 | $321.35 | 1 | |
| 44 | 896471T01 | FLOORBOARD #5 Aluminum (L71 cm x W110 cm x T22 mm) | ACT | | $443.51 | $423.94 | 1 | ||
| 45 | 809527006 | SEAT ASSEMBLY Aluminum (L110 cm x W20 cm x T15 mm) | NLA | | $59.34 | $57.61 | 1 | ||
| 46 | 811313 | ----BRACKET Seat - Black Plastic | ACT | $8.36 | $8.24 | 2 | |||
| 47 | 889345Q01 | PUMP ASSEMBLY Air - Double Action | ACT | | $50.61 | $49.15 | 1 | ||
| 48 | 889346 | ----GAUGE Air Pump | ACT | $21.42 | $21.12 | 1 | |||
| 49 | 889348 | ----HOSE Air Pump | ACT | $14.01 | $13.82 | 1 | |||
| 50 | 889347 | ----ADAPTER SET Air Pump Hose | ACT | $17.25 | $16.94 | 1 | |||
| 51 | 8M0150135 | ADAPTER Air Pump | ACT | $3.10 | $3.03 | 1 | |||
| 52 | 896345A01 | REPAIR KIT Hypalon - Red/Black | ACT | | $23.33 | $23.01 | 1 | ||
| 53 | 891690 | ----CEMENT Hypalon (30 ml) | ACT | $11.64 | $11.47 | 1 | |||
| 54 | 811826T2 | BAG Storage/Carrying With M Logo | NLA | | $108.21 | $103.46 | 1 | ||
| 54 | 811827T1 | BAG Storage/Carrying With M Logo | NLA | | $71.39 | $69.33 | 1 |
