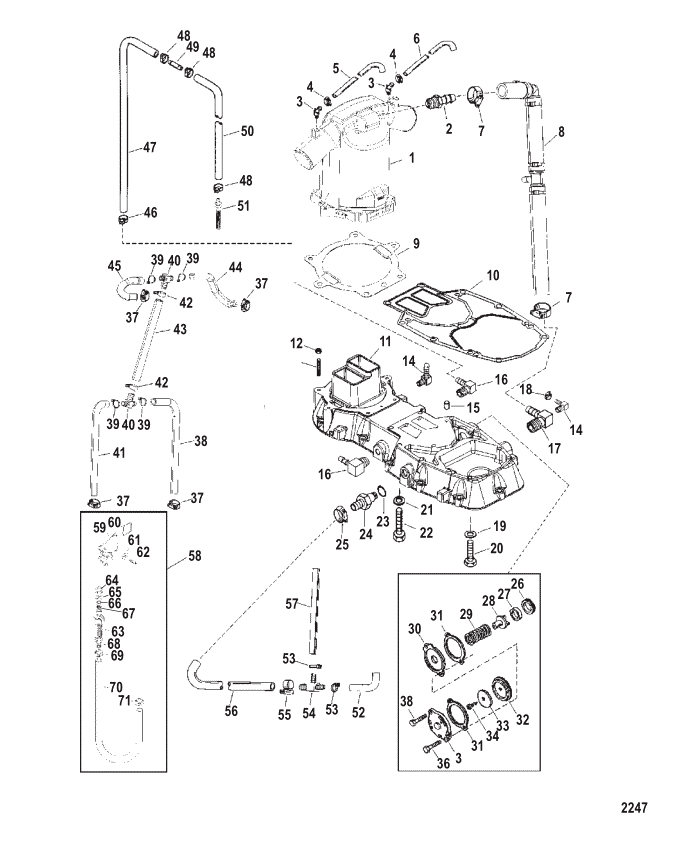

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 879890A3 | CHAMBER KIT Expansion | ACT | $1,247.93 | $1,144.01 | 1 | |||
| 2 | 42683 | CONNECTOR (.750-14) | ACT | $30.58 | $30.03 | 1 | |||
| 3 | 884591 | FITTING 45 Degree (1.25-27) | ACT | $36.00 | $35.35 | 2 | |||
| 4 | 815504104 | CLAMP Worm Gear | ACT | $6.80 | $6.64 | 2 | |||
| 5 | 885340 | HOSE Molded (19.30 Inches) | ACT | $14.00 | $13.66 | 1 | |||
| 6 | 885341 | HOSE Molded (10.24 Inches) | ACT | $9.30 | $9.07 | 1 | |||
| 7 | 815504310 | CLAMP Worm Gear | ACT | $17.99 | $17.56 | 2 | |||
| 8 | 42850A3 | HOSE ASSEMBLY | ACT | $51.33 | $49.38 | 1 | |||
| 9 | 880738 | GASKET Expansion Chamber To Adaptor | ACT |
|
$27.00 | $26.52 | 1 | ||
| 10 | 884428001 | GASKET Block To Adaptor Plate | 884428 | SS |
|
$59.75 | $57.47 | 1 | |
| 11 | 880040 | ADAPTOR Engine | ACT | $1,231.21 | $1,128.68 | 1 | |||
| 12 | 826365 | NUT (M8) | ACT | $5.90 | $5.76 | 6 | |||
| 13 | 884824 | STUD (M8 x 50) | ACT | $8.01 | $7.81 | 6 | |||
| 14 | 629101 | FITTING Elbow - 90 Degree (.125-27) | ACT | $13.40 | $13.07 | 2 | |||
| 15 | 43044 | PIN Dowel - Without Hole (.375 x .625) Locating | ACT | $2.50 | $2.44 | 2 | |||
| 16 | 8533394 | FITTING 90 Degree | ACT | $21.25 | $20.87 | 2 | |||
| 17 | 8603462 | ELBOW 90 Degree | ACT | $52.67 | $50.66 | 1 | |||
| 18 | 815504104 | CLAMP Worm Gear | ACT | $6.80 | $6.64 | 1 | |||
| 19 | 4002319 | WASHER | ACT | $3.20 | $3.13 | 8 | |||
| 20 | 40001209 | SCREW (M10 x 60) | ACT | $3.30 | $3.22 | 8 | |||
| 21 | 4002319 | WASHER | ACT | $3.20 | $3.13 | 2 | |||
| 22 | 40001228 | SCREW (M10 x 120) | ACT | $2.00 | $1.96 | 2 | |||
| 23 | 45711 | O-RING (.612 x .103) Strainer Fitting | ACT |
|
$1.80 | $1.76 | 1 | ||
| 24 | 884491 | FITTING Strainer | ACT | $30.83 | $30.28 | 1 | |||
| 25 | 815504206 | CLAMP Worm Gear | ACT | $6.80 | $6.64 | 1 | |||
| 26 | 814190 | CARRIER | ACT | $11.60 | $11.32 | 1 | |||
| 27 | 814191 | GROMMET | ACT | $8.90 | $8.68 | 1 | |||
| 28 | 814189 | POPPET | ACT | $10.90 | $10.63 | 1 | |||
| 29 | 64878 | SPRING (Black) | ACT | $6.80 | $6.64 | 1 | |||
| 30 | 65664A1 | PLATE ASSEMBLY Relief Valve | ACT |
|
$29.92 | $29.38 | 1 | ||
| 31 | 88907003 | ----GASKET | 88907 | SS |
|
$3.80 | $3.71 | 2 | |
| 32 | 648771 | DIAPHRAGM | ACT | $11.79 | $11.51 | 1 | |||
| 33 | 76451 | WASHER | ACT | $2.81 | $2.75 | 1 | |||
| 34 | 69570 | SCREW (#10-16 x .750) | ACT | $1.80 | $1.76 | 1 | |||
| 35 | 65663A2 | COVER ASSEMBLY Relief Valve - Includes One Gasket #31 | ACT | $62.08 | $59.72 | 1 | |||
| 36 | 81893435 | SCREW (M8 x 35) | ACT | $4.00 | $3.91 | 2 | |||
| 37 | 855228 | CLAMP (25.6 mm) | 888988014 | SS |
|
$4.50 | $4.39 | 4 | |
| 38 | 888154 | HOSE Molded | ACT | $50.08 | $48.18 | 1 | |||
| 39 | 816311T | TIE STRAP (8.00 Inches) | ACT | $0.59 | $0.58 | 4 | |||
| 40 | 887775 | FITTING Tee | ACT | $30.92 | $30.36 | 2 | |||
| 41 | 888155 | HOSE Molded | ACT | $12.40 | $12.10 | 1 | |||
| 42 | 815504310 | CLAMP Worm Gear | ACT | $17.99 | $17.56 | 2 | |||
| 43 | 8M0062634 | HOSE (44.00 Inches Bulk) Cut 11.500 Inches | 4285069 | SS |
|
$41.00 | $40.26 | 1 | |
| 44 | 888152 | HOSE Molded | ACT | $42.17 | $41.41 | 1 | |||
| 45 | 888153 | HOSE Molded | ACT | $11.00 | $10.73 | 1 | |||
| 46 | 816311T | TIE STRAP (8.00 Inches) | ACT | $0.59 | $0.58 | 1 | |||
| 47 | 8M0038468 | HOSE (9.00 Feet Bulk) Cut 42.00 Inches - Siphon | 85861079 | REP |
|
$43.50 | $42.72 | 1 | |
| 48 | 816311T | TIE STRAP (8.00 Inches) | ACT | $0.59 | $0.58 | 3 | |||
| 49 | 858456 | SIPHON BREAK | ACT | $3.30 | $3.22 | 1 | |||
| 50 | 8M0038468 | HOSE (9.00 Feet Bulk) Cut 18.00 Inches - Siphon | 85861079 | REP |
|
$43.50 | $42.72 | 1 | |
| 51 | 8348084 | STRAINER Siphon Hose | ACT | $21.25 | $20.87 | 1 | |||
| 52 | 858807 | HOSE To Fuel Rail Bottom | ACT | $13.40 | $13.07 | 1 | |||
| 53 | 816311T | TIE STRAP (8.00 Inches) | ACT | $0.59 | $0.58 | 2 | |||
| 54 | 884273 | CONNECTOR Tee | NLA |
|
$0.00 | $0.00 | 1 | ||
| 55 | 815504206 | CLAMP Worm Gear | ACT | $6.80 | $6.64 | 1 | |||
| 56 | 884496 | HOSE Molded To Compressor | ACT | $27.67 | $27.17 | 1 | |||
| 57 | 85833939 | HOSE (17.00 Inches Bulk) Cut As Required - To Strainer Fitting | ACT | $13.10 | $12.78 | 1 | |||
| 58 | 820543A6 | ADAPTOR KIT Flushing Complete | ACT |
|
$120.08 | $113.09 | 1 | ||
| 59 | 820543A6 | ----CLIP Flushing Assembly Holder | 850160 | REP |
|
$120.08 | $113.09 | 1 | |
| 60 | 850390 | ----DECAL Flushing Adaptor | ACT | $1.50 | $1.47 | 1 | |||
| 61 | 4002314 | ----WASHER | ACT | $3.70 | $3.61 | 3 | |||
| 62 | 88417 | ----SCREW (#12-24 x .620) | ACT | $1.80 | $1.76 | 3 | |||
| 63 | 820543A5 | ----ADAPTER ASSEMBLY Flushing | ACT |
|
$32.08 | $31.51 | 1 | ||
| 64 | 821908 | --------PLUG Top | ACT | $7.40 | $7.22 | 1 | |||
| 65 | 821915 | --------WASHER | ACT | $4.20 | $4.10 | 1 | |||
| 66 | 30641 | --------O-RING (.299 x .103) | ACT | $3.20 | $3.13 | 1 | |||
| 67 | 8219631 | --------CHECK VALVE | ACT | $18.25 | $17.92 | 1 | |||
| 68 | 33066 | --------CONNECTOR (.500-14) Straight - Brass | ACT | $19.08 | $18.74 | 1 | |||
| 69 | 815504206 | ----CLAMP Worm Gear | ACT | $6.80 | $6.64 | 1 | |||
| 70 | 855258112 | ----HOSE (60.00 Inches Bulk) Cut As Required | ACT | $45.00 | $44.19 | 1 | |||
| 71 | 815504206 | ----CLAMP Worm Gear | ACT | $6.80 | $6.64 | 1 | |||
| - | 889439A01 | GASKET/SEAL SET Powerhead | ACT |
|
$259.58 | $244.45 | 1 | ||
| - | 889424A1 | SEAL/GASKET SET Jet Drive Housing | ACT |
|
$389.36 | $372.17 | 1 | ||
| - | 889437A2 | POWERHEAD ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 |
