| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

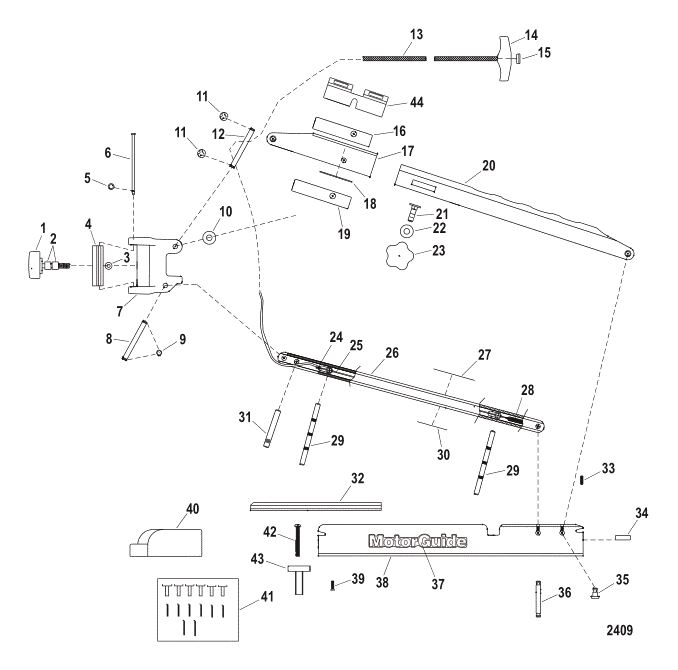

| - | 8M4501607 | MOUNT ASSEMBLY Complete | MST91642A | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | MM5892 | ----KNOB KIT Door | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | MRK02106T | --------SPACER Door Knob | MRK02106 | SS |
|
$0.55 | $0.55 | 2 | |
| 3 | MRK17103T | --------WASHER (.335 x .630 x .06 | MRK17103 | SS |
|
$2.19 | $2.16 | 1 | |
| 4 | 8M0058304 | ----DOOR | MAK01204 | SS |
|
$27.99 | $27.63 | 1 | |
| 5 | MAK04604T | ----RING Retaining | MAK04604 | SS |
|
$3.29 | $3.28 | 1 | |
| 6 | MRK10405T | ----PIN Door/Bracket | MRK10405 | SS |
|
$4.39 | $4.37 | 1 | |
| 7 | MAK01105T | ----BRACKET | MAK01105 | SS |
|
$27.49 | $27.26 | 1 | |
| 8 | MDK10703T | ----PIN Bow Arm | MDK10703 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 9 | MRK04601T | ----RING Retaining (.375) | MRK04601 | SS |
|
$4.40 | $4.30 | 2 | |
| 10 | MRK17101T | ----WASHER Nylon | MRK17101 | SS |
|
$4.40 | $4.30 | 4 | |
| 11 | MBK04601T | ----E RING | MBK04601 | SS |
|
$1.09 | $1.08 | 2 | |
| 12 | MNK10305T | ----PIN Bracket/Clutch Channel | MNK10305 | SS |
|
$11.99 | $11.85 | 1 | |
| 13 | M879193A1 | ----ROPE/HANDLE KIT Nylon | MAK343012 | SS |
|
$6.09 | $6.04 | 1 | |
| 14 | MAK372012 | --------HANDLE/BUTTON KIT | ACT |
|
$5.49 | $5.43 | 1 | ||
| 14 | MAK07201T | ------------HANDLE Rope | MAK07201 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 15 | NSS | ------------------------NOT SOLD SEPARATE Rope Handle Button |
|
$0.00 | $0.00 | 1 | |||
| 16 | MRK10006 | ----PAD Friction - Starboard | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | MNK36105T | ----CHANNEL Clutch | MNK36105 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 18 | MRK10007 | ----PAD Clutch | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | MRK10008 | ----PAD Friction - Port | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | MNK30805T | ----CHANNEL Top | MNK30805 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 21 | MRK02504T | ----BOLT Clutch | MRK02504 | SS |
|
$4.39 | $4.37 | 2 | |
| 22 | MXT01101T | ----WASHER (.400 x .810 x .06 | MXT01101 | SS |
|
$4.40 | $4.30 | 2 | |
| 23 | MRK08204T | ----KNOB Clutch | MRK08204 | SS |
|
$8.79 | $8.72 | 2 | |
| 24 | MRK02104 | ----BUSHING Rope | NLA |
|
$0.00 | $0.00 | 1 | ||
| 25 | M899516T | ----LOCKSLIDE ASSEMBLY | MNK313052 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 26 | MNK00905 | ----BOW ARM | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | MAK05601T | ----DECAL Mount Warning | MAK05601 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 28 | MRK01401T | ----SPRING | MRK01401 | SS |
|
$6.59 | $6.55 | 1 | |
| 29 | MNK10605T | ----PIN Lockslide | MNK10605 | SS/NLA |
|
$0.00 | $0.00 | 2 | |
| 30 | MBK05601T | ----DECAL Prop Warning | MBK05601 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 31 | M899433T | ----PIN Tension | MDK10801C | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 32 | M899447T | ----PAD Motor (13.00 Inches) | MRK100031 | SS/NLA |
|
$0.00 | $0.00 | 2 | |
| 33 | MXP14201T | ----SET SCREW (#10-24) | MXP14201 | SS/NLA |
|
$0.00 | $0.00 | 4 | |
| 34 | MAK01601T | ----REST Rubber | MAK01601 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 35 | MBK10601T | ----PIN Angle Lock | MBK10601C | SS/NLA |
|
$0.00 | $0.00 | 2 | |
| 36 | MRK10703T | ----PIN Bracket/Bow Arm | MRK10701 | SS |
|
$9.35 | $9.28 | 1 | |
| 37 | MRK19006T | ----DECAL MotorGuide | MRK19006 | SS/NLA |
|
$0.00 | $0.00 | 2 | |
| 38 | MNK01005 | ----DECK CHANNEL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 39 | MXT13701T | ----SCREW (#10-24 x .750) | MXT13701 | SS |
|
$3.29 | $3.25 | 2 | |
| 40 | MDK03401T | ----DECKET | MDK03401 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 41 | M899403T | ----MOUNTING KIT Isolator | MRK174065 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 42 | MXT13601T | --------SCREW (.250-20 x 2.250) | MXT13601 | SS |
|
$2.19 | $2.17 | 6 | |
| 42 | MXT13602T | --------SCREW (.250-20 x 3.00) | MXT13602 | SS |
|
$2.99 | $2.96 | 2 | |
| 43 | MAK01501T | --------ISOLATOR Mounting | MAK01501 | SS/NLA |
|
$0.00 | $0.00 | 6 | |
| 44 | MRK07906T | ----INSERT Clutch | MRK07906 | SS/NLA |
|
$0.00 | $0.00 | 1 |
