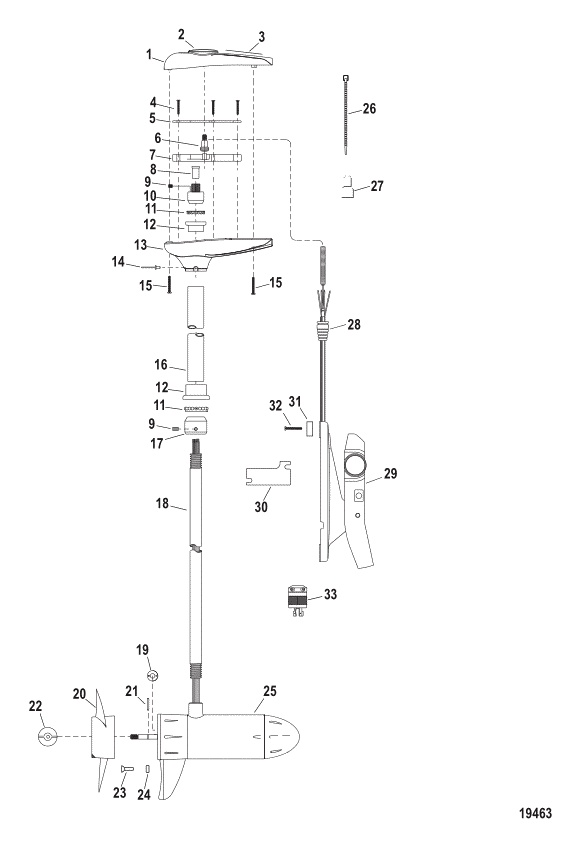

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MTF05340T | COVER ASSEMBLY Top | MTF05338 | SS/NLA |  | $0.00 | $0.00 | 1 | |
| 2 | MM5921 | ----INDICATOR KIT Top Cover | NLA | | $0.00 | $0.00 | 1 | ||
| 3 | MTF19006T | DECAL Top Cover MotorGuide Digital Pro 6700 Series 24 Volts 67 Lbs Thrust | MTF19006 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 4 | MXF13301T | SCREW (#6 x 1.125) | MAF13301 | SS | | $4.99 | $4.96 | 6 | |
| 5 | MAF12701T | COVER Rack Guide | MAF12701 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 6 | MAF06901T | GEAR Indicator | MAF06901 | SS | | $3.29 | $3.25 | 1 | |
| 7 | MAF12601T | RACK GUIDE | MAF12601 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 8 | MKP02101T | BUSHING Pivot Shaft | MKP02101 | SS | | $1.99 | $1.95 | 1 | |
| 9 | M899381T | SET SCREW (.250-20 x .312 | MAF14201B | SS | | $0.48 | $0.48 | 3 | |
| 10 | M879293A1 | NUT ASSEMBLY Pinion | MAF39804 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 10 | M879293A1 | NUT KIT Pinion | NLA | | $0.00 | $0.00 | 1 | ||
| 11 | MFM00501T | BEARING Ball (1.546 Outsi Open Style - 15 Balls | MFM00501 | SS | | $2.72 | $2.69 | 2 | |
| 11 | MFM00501T | BEARING Ball (1.546 Outsi Open Style - 15 Balls | MFM00501 | SS | | $2.72 | $2.69 | 1 | |
| 11 | MFM00502T | BEARING Ball (1.477 Outsi Sealed Style - 41 Balls | MFM00502 | SS/NLA | | $7.24 | $7.20 | 1 | |
| 12 | 8M0094911 | RETAINER CUP Bearing (1.5 | MFM00701 | SS/NLA | | $0.00 | $0.00 | 2 | |
| 12 | 8M0094911 | RETAINER CUP Bearing (1.5 | MFM00701 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 12 | 879330T58 | RETAINER CUP Bearing (1.4 | MFM00702 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 13 | M899372T | COVER Bottom | MTF004067 | SS | | $8.99 | $8.87 | 1 | |
| 14 | MLF11104T | RIVET (.125 x .375) | MLF11103 | SS | | $2.19 | $2.17 | 3 | |
| 15 | MAT14101T | SCREW (#8 x .625) Stainle | MAT14101 | SS | | $0.49 | $0.48 | 3 | |
| 16 | MBF16506T | TUBE Outer (20.00 Inches) | MAF16506 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 17 | MSS00601S | CONE Bearing | MAF00605 | NLA | | $0.00 | $0.00 | 1 | |
| 17 | MSS00601S | CONE AND BEARING KIT | NLA | | $0.00 | $0.00 | 1 | ||
| 17 | MSS00601T | CONE Bearing | MSS00601 | SS | | $6.99 | $6.92 | 1 | |
| 18 | MAF04922T | COLUMN (45.00 Inches) Stainless Steel | MAF04912 | SS | | $68.99 | $67.15 | 1 | |
| 19 | MAR17501T | WASHER (.385 x .885 x .09 | MAR17501 | SS | | $1.75 | $1.73 | 1 | |
| 20 | MGA089G | PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub | MAF174555 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 20 | MGA089G | PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub | MAF174755 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 20 | MAF12415T | ----PROPELLER 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub | MAF12415 | SS | | $43.99 | $43.19 | 1 | |
| 21 | MBR10202T | ----PIN Prop Drive (.156 x 1. | MBR10202 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 22 | MAR09902T | ----PROP NUT | MAR09901 | SS/NLA | | $3.32 | $3.29 | 1 | |
| 22 | MAR09902T | ----PROP NUT | MAR09902 | SS/NLA | | $3.32 | $3.29 | 1 | |
| 23 | MDK13301T | SCREW (.250-20 x .750) | MDK13301 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 24 | M879341T | ANODE Zinc | MAR00202 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 24 | M879341T | ANODE Aluminum | NLA | | $0.00 | $0.00 | 1 | ||
| 25 | 8M0056703 | LOWER UNIT ASSEMBLY Complete (72# - Variable) | MUC397022 | SS | | $496.09 | $476.72 | 1 | |
| 26 | 816311T | TIE STRAP (.16 x 7/8.00 I | MAF03001 | SS | | $0.59 | $0.58 | AR | |
| 26 | MAF03002T | TIE STRAP (.29/.31 x 7/9. | MAF03002 | SS | | $3.29 | $3.25 | AR | |
| 27 | MBF02901T | CONNECTOR Pigtail (#18-8) | MBF02901 | SS/NLA | | $0.00 | $0.00 | 2 | |
| 27 | MBF02902T | CONNECTOR Pigtail (#22-14 | MBF02902 | SS | | $0.55 | $0.55 | 4 | |
| 28 | MAP07104T | GROMMET | MAP07101 | SS/NLA | | $2.41 | $2.38 | 1 | |
| 29 | M899416T | FOOT PEDAL ASSEMBLY Complete (69.00 Inches) | MXP300202 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 30 | M899464T | WEIGHT PLATE ASSEMBLY | MLP312315 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 31 | MKP02301T | ----PAD Foot Pedal | MKP02301 | SS/NLA | | $0.00 | $0.00 | 4 | |
| 32 | MXF13501T | ----SCREW (#6 x .500) | MXF13501 | SS/NLA | | $0.00 | $0.00 | 4 | |
| 33 | MTF02901T | PLUG Special | MTF029012 | SS/NLA | | $0.00 | $0.00 | 1 | |
| - | 8M4501607 | MOUNT ASSEMBLY Complete Model 20.5 | MST9205BF | SS/NLA | | $0.00 | $0.00 | 1 |
