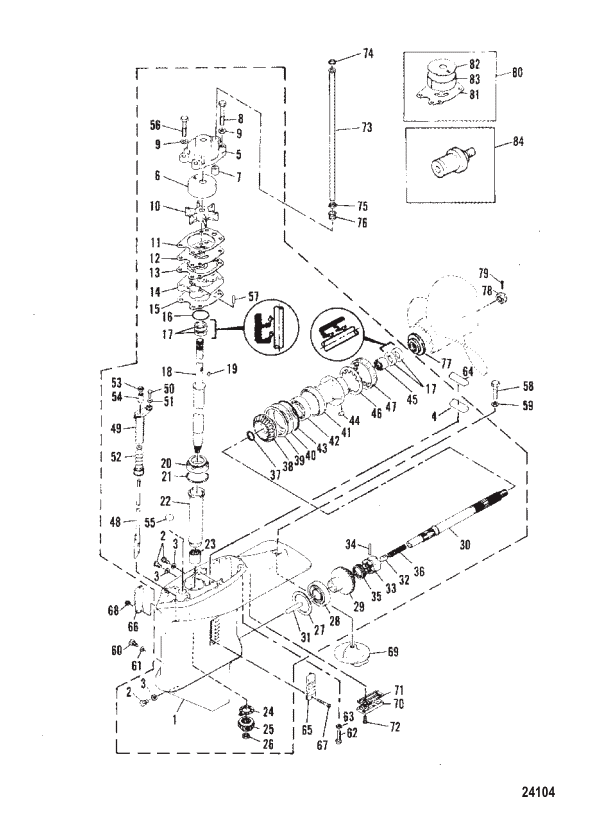

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 0-1 | 7994M | GEAR HOUSING ASSEMBLY (SHORT SHAFT) | 7122M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 0-1 | 7995M | GEAR HOUSING ASSEMBLY (LONG SHAFT) | 7123M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 9573M | ----GEAR HOUSING ASSEMBLY | 7121M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 2 | 81924M | ----PLUG | NLA |
|
$23.45 | $22.88 | 3 | ||
| 3 | 81987 | ----GASKET | 81987M | SS |
|
$3.80 | $3.71 | 3 | |
| 4 | 81449M | ----GUIDE SEAL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 83396M | ----COVER WATER PUMP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 83403M | ----INSERT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 81426M | ----SEAL | ACT |
|
$18.80 | $18.34 | 1 | ||
| 8 | 84057M | ----BOLT | 82469M | SS/NLA |
|
$0.00 | $0.00 | 2 | |
| 9 | 82217M | ----WASHER | NLA |
|
$3.45 | $3.36 | 4 | ||
| 10 | 99971M | ----IMPELLER | 83397M | SS |
|
$82.42 | $79.27 | 1 | |
| 11 | 83398 | ----GASKET WATER PUMP | 83398M | SS |
|
$7.40 | $7.22 | 1 | |
| 12 | 83400M | ----FACE PLATE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 83399 | ----GASKET WATER PUMP | 83399M | SS |
|
$8.01 | $7.81 | 1 | |
| 14 | 8M0070508 | ----BASE WATER PUMP | 83864M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 15 | 83865 | ----GASKET WATER PUMP | 83865M | SS |
|
$9.70 | $9.46 | 1 | |
| 16 | 82275M | ----O-RING | ACT |
|
$8.20 | $8.00 | 1 | ||
| 17 | 854017 | ----SEAL Oil | 83406M | SS |
|
$12.30 | $12.00 | 4 | |
| 18 | 83866M | ----DRIVESHAFT (SHORT SHAFT) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 83867M | ----DRIVESHAFT (LONG SHAFT) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 83895M | ----DRIVESHAFT (SUPER LONG SHAFT) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 83444M | ----KEY WATER PUMP | NLA |
|
$7.64 | $7.45 | 1 | ||
| 20 | 82319T | ----BEARING TAPERED ROLLER | 82319M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 21 | 81467M | ----SHIM PINION GEAR ADJUST (0.05 MM) | NLA |
|
$0.00 | $0.00 | AR | ||
| 21 | 81468M | ----SHIM PINION GEAR ADJUST (0.08 MM) | NLA |
|
$0.00 | $0.00 | AR | ||
| 21 | 19148002 | ----SHIM PINION GEAR ADJUST (0.12 MM) | 81469M | SS/NLA |
|
$0.00 | $0.00 | AR | |
| 21 | 19148004 | ----SHIM PINION GEAR ADJUST (0.30MM) | 81470M | SS/NLA |
|
$1.94 | $1.90 | AR | |
| 21 | 19153M | ----SHIM PINION GEAR ADJUST (0.50 MM) | 81471M | SS/NLA |
|
$0.00 | $0.00 | AR | |
| 22 | 83868M | ----SLEEVE DRIVESHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 82316T | ----BEARING NEEDLE | 82316M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 24 | 81455M | ----BEARING THRUST | NLA |
|
$0.00 | $0.00 | 1 | ||
| 25 | 83869T | ----GEAR Pinion GEAR | 83869M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 26 | 81772M | ----NUT PINION | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | 81456M | ----SHIM FORWARD GEAR ADJUST (0.05 MM) | NLA |
|
$4.47 | $4.37 | AR | ||
| 27 | 81457M | ----SHIM FORWARD GEAR ADJUST (0.08 MM) | NLA |
|
$0.00 | $0.00 | AR | ||
| 27 | 19148003 | ----SHIM FORWARD GEAR ADJUST (0.12 MM) | 81458M | SS/NLA |
|
$0.00 | $0.00 | AR | |
| 27 | 19158M | ----SHIM FORWARD GEAR ADJUST (0.30 MM) | 81459M | SS/NLA |
|
$0.00 | $0.00 | AR | |
| 27 | 81460M | ----SHIM FORWARD GEAR ADJUST (0.50 MM) | NLA |
|
$0.00 | $0.00 | AR | ||
| 28 | 82320T | ----BEARING TAPERED ROLLER | 82320M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 29 | 83877T | ----GEAR FORWARD | 83877M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 30 | 94531M | ----SHAFT PROPELLER | 83878M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 31 | 83419M | ----FOLLOWER Cam | NLA |
|
$0.00 | $0.00 | 1 | ||
| 32 | 81475M | ----SLIDE SHIFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 33 | 81473T | ----CLUTCH SLIDING | 81473M | SS |
|
$275.42 | $259.38 | 1 | |
| 34 | 81903M | ----PIN CROSS | NLA |
|
$0.00 | $0.00 | 1 | ||
| 35 | 81474M | ----RING CROSS PIN | NLA |
|
$0.00 | $0.00 | 1 | ||
| 36 | 83429M | ----SPRING COMPRESSION | NLA |
|
$0.00 | $0.00 | 1 | ||
| 37 | 81837M | ----WASHER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 38 | 83879T | ----GEAR REVERSE | 83879M | SS |
|
$324.08 | $305.19 | 1 | |
| 39 | 81462M | ----SHIM REVERSE GEAR ADJUST (0.05 MM) | NLA |
|
$0.00 | $0.00 | AR | ||
| 39 | 81463M | ----SHIM REVERSE GEAR ADJUST (0.08 MM) | NLA |
|
$0.00 | $0.00 | AR | ||
| 39 | 19163002 | ----SHIM REVERSE GEAR ADJUST (0.12 MM) | 81464M | SS/NLA |
|
$0.00 | $0.00 | AR | |
| 39 | 19163001 | ----SHIM REVERSE GEAR ADJUST (0.30 MM) | 81465M | SS/NLA |
|
$6.53 | $6.36 | AR | |
| 39 | 81461M | ----WASHER REVERSE GEAR ADJUST (0.50 MM) | NLA |
|
$0.00 | $0.00 | AR | ||
| 40 | 81461M | ----WASHER THRUST | NLA |
|
$0.00 | $0.00 | 1 | ||
| 41 | 8M0121494 | ----CARRIER Bearing | 83880M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 42 | 82296T | ----BEARING BALL | 82296M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 43 | 82289M | ----O-RING | ACT | $12.90 | $12.58 | 1 | |||
| 44 | 81916M | ----KEY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 45 | 82317M | ----BEARING NEEDLE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 46 | 81877M | ----WASHER CLAW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 47 | 8M0059031 | ----NUT | 81450M | SS |
|
$39.92 | $39.20 | 1 | |
| 48 | 83881M | ----SHIFT CAM (SHORT SHAFT) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 48 | 83882M | ----SHIFT CAM (LONG SHAFT) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 48 | 83902M | ----SHIFT CAM (SUPER LONG SHAFT) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 49 | 83883M | ----BUSHING SHIFT CAM | NLA |
|
$0.00 | $0.00 | 1 | ||
| 50 | 82423M | ----BOLT | 82451M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 51 | 82214M | ----WASHER | NLA |
|
$5.93 | $5.78 | 1 | ||
| 52 | 82881M | ----BOOT SHIFT ROD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 53 | 81767M | ----NUT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 54 | 80652M | ----CONNECTOR SHIFT ROD | ACT | $16.75 | $16.45 | 1 | |||
| 55 | 83857M | ----PLUG | NLA |
|
$0.00 | $0.00 | 1 | ||
| 56 | 85277614 | ----BOLT | 82468M | SS |
|
$10.00 | $9.76 | 2 | |
| 57 | 82354M | ----PIN DOWEL | NLA |
|
$0.00 | $0.00 | 2 | ||
| 58 | 94532M | BOLT | 83860M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 59 | 82218M | LOCKWASHER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 60 | 83392M | SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 61 | 95610 | GASKET | 81986M | SS |
|
$11.50 | $11.22 | 1 | |
| 62 | 95416M | BOLT | 82465M | SS/NLA |
|
$0.00 | $0.00 | 6 | |
| 63 | 82215M | LOCKWASHER | ACT | $0.40 | $0.40 | 6 | |||
| 64 | 81448M | SEAL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 65 | 19166M | COVER WATER INLET | 81443M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 66 | 19167M | COVER WATER INLET | 81444M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 67 | 83858M | SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 68 | 8528165 | NUT | 81781M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 69 | 83859T | TRIM TAB | 83859M | SS |
|
$62.17 | $59.80 | 1 | |
| 70 | 83862M | PLATE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 71 | 83861M | GASKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 72 | 83870M | SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 73 | 83451M | TUBE WATER (SHORT SHAFT) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 73 | 83452M | TUBE WATER (LONG SHAFT) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 73 | 83903M | TUBE Water WATER (SUPER LONG SHAFT) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 74 | 81852M | WASHER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 75 | 81989M | O-RING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 76 | 81427M | SEAL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 77 | 73345A1 | THRUST WASHER | 73345 | SS |
|
$17.34 | $17.02 | 1 | |
| 78 | 859935 | NUT PROPELLER | 81775M | SS |
|
$9.32 | $9.15 | 1 | |
| 79 | 95295 | PIN COTTER | 84428M | SS |
|
$7.19 | $7.03 | 1 | |
| 80 | 83884M | PUMP KIT Water - Chrome | NLA |
|
$0.00 | $0.00 | 1 | ||
| 81 | 83448M | ----FACE PLATE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 82 | 83449M | ----INSERT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 83 | 83450M | ----INNER PLATE CARTRIDGE | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 94533M | GASKET SET | 84362M | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| - | 84363T | REPAIR KIT | 84363M | SS |
|
$165.08 | $155.46 | 1 |
