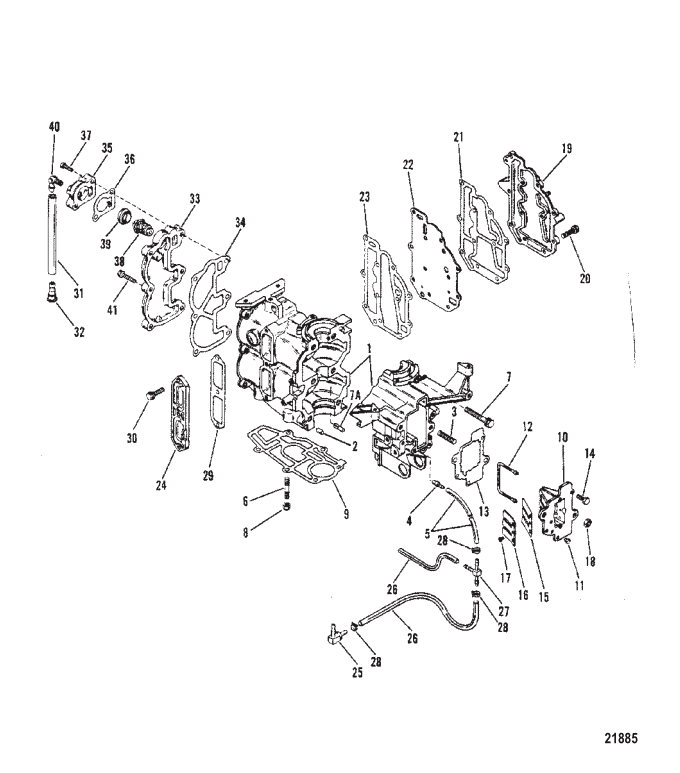

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9727T2 | CYLINDER BLOCK | 9727A2 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 2 | 85171 | ----PIN Dowel CYLINDER BLOCK | ACT |
|
$4.50 | $4.39 | 2 | ||
| 3 | 424632 | ----STUD CARBURETOR | 42463 | SS |
|
$16.50 | $16.09 | 2 | |
| 4 | 426982 | ----CHECK VALVE BLEED HOSE | 42698 | SS |
|
$36.66 | $36.01 | 1 | |
| 5 | 99130100 | ----HOSE BLEED | 1383556 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 6 | 8161949 | ----STUD CYLINDER BLOCK | 42984 | SS |
|
$12.20 | $11.90 | 2 | |
| 7 | 421251 | ----SCREW (M8 x 55) CRANKCASE TO CYLINDER BLOCK | NLA |
|
$0.00 | $0.00 | 6 | ||
| 7A | 17866 | ----PIN Groove | ACT |
|
$3.10 | $3.03 | 1 | ||
| 8 | 401386 | NUT (M6) CYLINDER BLOCK STUD | 400634 | SS |
|
$5.10 | $4.98 | 2 | |
| 9 | 191861 | GASKET Powerhead | ACT |
|
$9.70 | $9.46 | 1 | ||
| 10 | 828435A3 | REED BLOCK ASSEMBLY | 42381A2 | SS |
|
$156.42 | $147.30 | 1 | |
| 11 | 42657A3 | ----CHECK VALVE | 42657A1 | SS |
|
$7.30 | $7.12 | 1 | |
| 12 | 42137 | SEAL REED BLOCK | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 195982 | GASKET REED BLOCK | ACT |
|
$9.90 | $9.66 | 1 | ||
| 14 | 4000171 | SCREW (M6 x 16) REED BLOCK | ACT | $1.10 | $1.08 | 3 | |||
| 15 | 825141 | REED | 4204410 | SS |
|
$9.90 | $9.66 | 2 | |
| 16 | 828435A3 | STOP Reed | 179031 | REP |
|
$156.42 | $147.30 | 2 | |
| 17 | 4005764 | SCREW (M3.5 x 8) REED ATTACHING | NLA |
|
$0.00 | $0.00 | 6 | ||
| 18 | 400213 | NUT (M8) Stainless Steel CARBURETOR STUD | ACT | $2.90 | $2.83 | 2 | |||
| 19 | 8M0048005 | COVER EXHAUST | 42521 | SS |
|
$67.08 | $64.53 | 1 | |
| 20 | 40062129 | SCREW (M6 x 25) EXHAUST COVER TO CYLINDER BLOCK | ACT |
|
$1.10 | $1.08 | 11 | ||
| 21 | 19185 | GASKET EXHAUST COVER | ACT |
|
$11.80 | $11.51 | 1 | ||
| 22 | 42365 | PLATE Baffle | 423651 | SS |
|
$45.25 | $44.44 | 1 | |
| 23 | 19184 | GASKET BAFFLE PLATE | ACT |
|
$10.40 | $10.15 | 1 | ||
| 24 | 19107F1 | COVER Intake | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 17863A1 | COVER ASSEMBLY Intake | NLA |
|
$0.00 | $0.00 | 1 | ||
| 25 | 56759 | ----FITTING Barbed | ACT |
|
$11.60 | $11.32 | 1 | ||
| 25 | 15133 | ----FITTING | ACT |
|
$21.17 | $20.79 | 1 | ||
| 26 | 99130100 | ----HOSE | 1383556 | SS/NLA |
|
$0.00 | $0.00 | 2 | |
| 27 | 59169003 | ----FITTING | 59169 | SS |
|
$6.00 | $5.86 | 1 | |
| 28 | 56762 | ----TIE STRAP (4.00 Inches) | ACT | $0.50 | $0.49 | AR | |||
| 29 | 192031 | GASKET INTAKE COVER | ACT |
|
$6.80 | $6.64 | 1 | ||
| 30 | 40062129 | SCREW (M6 x 25) COVER TO CYLINDER BLOCK | ACT |
|
$1.10 | $1.08 | 3 | ||
| 31 | 8M0108355 | LINE (57.00 Inches Bulk) TELL TALE | 99127109 | SS |
|
$52.33 | $50.55 | 1 | |
| 32 | 94848 | FITTING TELL TALE HOSE-BOTTON COWL | ACT | $4.80 | $4.69 | 1 | |||
| 33 | 8906A02 | COVER ASSEMBLY | 8906A1 | SS |
|
$88.33 | $84.96 | 1 | |
| 34 | 19207002 | ----GASKET | 192071 | SS |
|
$9.40 | $9.17 | 1 | |
| 35 | 8M0039352 | ----COVER THERMOSTAT | 146732 | SS |
|
$21.84 | $21.44 | 1 | |
| 36 | 19205002 | ----GASKET | 192051 | SS |
|
$3.00 | $2.93 | 1 | |
| 37 | 40062129 | ----SCREW (M6 x 25) | ACT |
|
$1.10 | $1.08 | 2 | ||
| 38 | 14586 | THERMOSTAT (120 Degree) | ACT | $40.99 | $40.16 | 1 | |||
| 39 | 8M0204714 | GASKET THERMOSTAT | 62386 | SS |
|
$2.89 | $2.82 | 1 | |
| 40 | 291112 | CONNECTOR (STRAIGHT) | 29111 | SS |
|
$9.60 | $9.37 | 1 | |
| 41 | 40062129 | SCREW (M6 x 25) COVER ATTACHING | ACT |
|
$1.10 | $1.08 | 6 | ||
| - | 42364A92 | GASKET SET Engine | ACT | $112.00 | $105.48 | 1 | |||
| - | 19072T88 | POWERHEAD ASSEMBLY Complete | 19072A88 | SS/NLA |
|
$0.00 | $0.00 | 1 |
