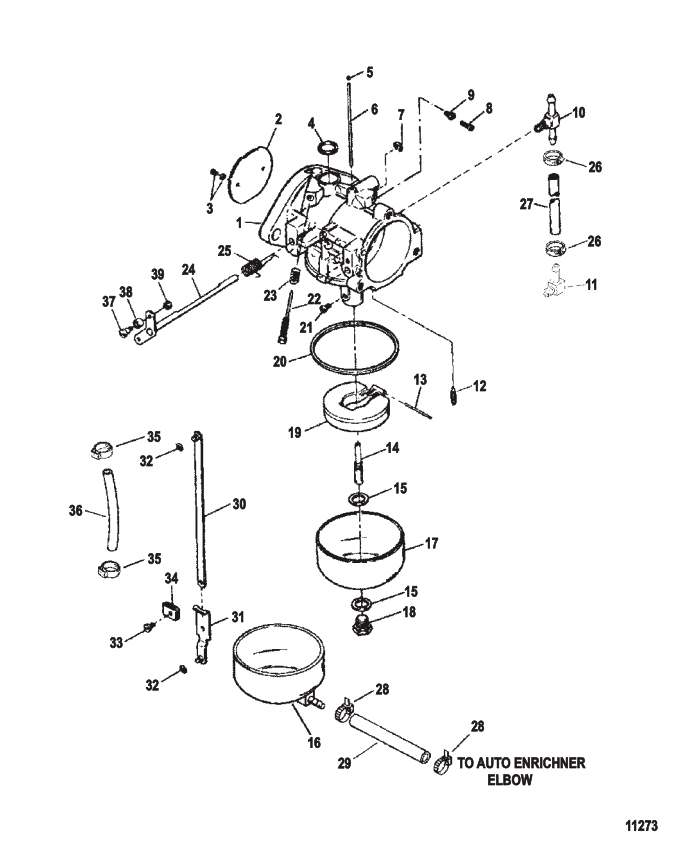

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 826706T2 | CARBURETOR Top | 8267061 | SS/NLA |  | $169.63 | $159.75 | 1 | |
| 1 | 826707T2 | CARBURETOR Bottom | 8267071 | SS/NLA | | $161.14 | $151.76 | 1 | |
| 2 | F10361 | ----SHUTTER Throttle | NLA | | $3.99 | $3.92 | 1 | ||
| 3 | 803176 | ----SCREW Shutter | F10328 | SS | | $3.50 | $3.42 | 2 | |
| 4 | FO16128 | ----PLUG Welch | ACT | | $3.70 | $3.61 | 1 | ||
| 5 | FO10588 | ----PLUG | ACT | | $7.20 | $7.03 | 7 | ||
| 6 | FO16993 | ----TUBE By Pass | ACT | $13.50 | $13.17 | 1 | |||
| 7 | FO16620 | ----E RING Throttle Shaft | NLA | | $6.93 | $6.77 | 1 | ||
| 8 | F10275 | ----SCREW Sealing | ACT | $3.70 | $3.61 | 1 | |||
| 9 | F10273 | ----JET (.047) Idle Air | ACT | $17.67 | $17.35 | 1 | |||
| 10 | 64706001 | ----FITTING (T) (T) | F85314-1 | SS | | $33.51 | $32.93 | 1 | |
| 11 | F84314-2 | ----ELBOW (L) (L) | NLA | | $8.06 | $7.86 | 1 | ||
| 12 | F10265 | ----NEEDLE Inlet | ACT | | $19.29 | $18.82 | 1 | ||
| 13 | FO13944 | ----PIN Float | ACT | | $5.40 | $5.27 | 1 | ||
| 14 | FO16133 | ----NOZZLE Main | ACT | | $26.75 | $26.27 | 1 | ||
| 15 | FO5323 | ----GASKET Fuel Bowl | ACT | | $3.80 | $3.71 | 2 | ||
| 16 | 809181 | ----BOWL Fuel | NLA | | $11.42 | $11.22 | 1 | ||
| 17 | FO16130 | ----BOWL Fuel | ACT | | $15.40 | $15.02 | 1 | ||
| 18 | FO16132 | ----SCREW Fuel Bowl | ACT | $9.40 | $9.17 | 1 | |||
| 19 | 891730A01 | ----FLOAT Fuel Bowl | F10346 | SS | | $36.17 | $35.52 | 1 | |
| 20 | FO15623 | ----GASKET Fuel Bowl | ACT | | $4.10 | $4.00 | 1 | ||
| 21 | FO13193 | ----JET Main (.088) Main Fuel | ACT | | $17.00 | $16.58 | 1 | ||
| 21 | FO13949 | ----JET (.086) Main Fuel | ACT | | $17.00 | $16.58 | OPT | ||
| 21 | 3517 | ----JET (.084) Main Fuel | ACT | | $3.90 | $3.81 | OPT | ||
| 21 | 3518 | ----JET (.082) Main Fuel | ACT | | $3.90 | $3.81 | OPT | ||
| 21 | 6201 | ----JET (.080) Main Fuel | ACT | | $15.40 | $15.02 | OPT | ||
| 21 | 6247 | ----JET Main (.090) Main Fuel | ACT | | $14.90 | $14.53 | 1 | ||
| 21 | FO13193 | ----JET Main (.088) Main Fuel | ACT | | $17.00 | $16.58 | OPT | ||
| 21 | FO13949 | ----JET (.086) Main Fuel | ACT | | $17.00 | $16.58 | OPT | ||
| 21 | 3517 | ----JET (.084) Main Fuel | ACT | | $3.90 | $3.81 | OPT | ||
| 21 | 3518 | ----JET (.082) Main Fuel | ACT | | $3.90 | $3.81 | OPT | ||
| 22 | F10268 | ----SCREW Idle Mixture | ACT | $19.00 | $18.66 | 1 | |||
| 23 | 27160 | ----SPRING Idle Mixture Screw | ACT | | $3.90 | $3.81 | 1 | ||
| 24 | FO17884 | ----SHAFT AND LEVER Throttle Throttle | NLA | | $96.92 | $93.22 | 1 | ||
| 25 | FO16143 | ----SPRING Throttle Shaft | ACT | | $15.90 | $15.51 | 1 | ||
| 26 | F698772 | CLAMP Worm Gear | ACT | $5.50 | $5.37 | 2 | |||
| 27 | 82722881 | HOSE (38.00 Inches Bulk) | NLA | | $53.67 | $50.98 | 1 | ||
| 28 | 56762 | TIE STRAP (4.00 Inches) | ACT | $0.50 | $0.49 | 2 | |||
| 29 | 82724316 | HOSE (4.750 Inches Bulk) | NLA | | $6.38 | $6.27 | 1 | ||
| 30 | FA178233 | TIE BAR ASSEMBLY Throttle | NLA | | $10.19 | $10.00 | 1 | ||
| 31 | FA85193 | END ASSEMBLY Tie bar | NLA | | $7.11 | $6.98 | 1 | ||
| 32 | 21058 | E RING Retaining | NLA | | $0.82 | $0.81 | 2 | ||
| 33 | F1064 | SCREW (#8-32 x .375) | ACT | $1.10 | $1.08 | 1 | |||
| 34 | F1693 | NUT (#8-32) | ACT | $2.90 | $2.83 | 1 | |||
| 35 | 56762 | TIE STRAP (4.00 Inches) | ACT | $0.50 | $0.49 | 2 | |||
| 36 | 7381567 | TUBING (42.00 Inches Bulk) | ACT | | $29.99 | $29.39 | 1 | ||
| 37 | 830110 | SHAFT Throttle Roller | NLA | | $5.49 | $5.37 | 1 | ||
| 38 | 819225 | ROLLER | NLA | | $1.16 | $1.14 | 1 | ||
| 39 | 8267094 | NUT (#8-32) | F1997 | SS | | $1.64 | $1.62 | 1 | |
| - | FK10023 | GASKET SET Carburetor Carburetor | ACT | $10.70 | $10.44 | 1 | |||
| - | FK10103-2 | REPAIR KIT Carburetor | ACT | $114.58 | $107.91 | 1 |
