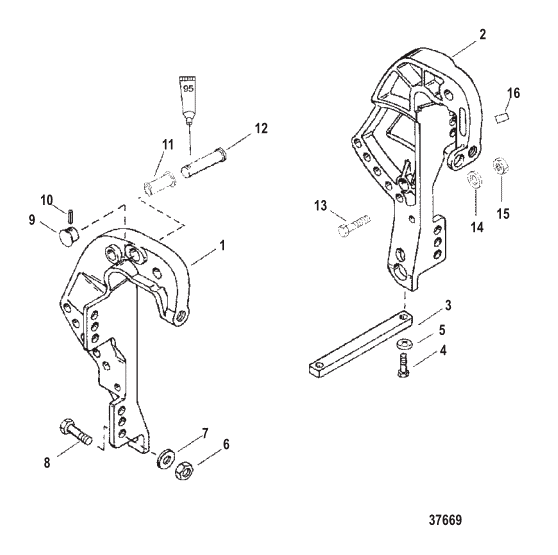

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 821774T8 | CLAMP BRACKET | 821774A1 | SS |
|
$391.14 | $373.88 | 1 | |
| 1 | 821774T8 | CLAMP BRACKET | 821774A2 | SS |
|
$391.14 | $373.88 | 1 | |
| 2 | 821773T1 | CLAMP BRACKET | 821773A1 | SS |
|
$384.75 | $362.32 | 1 | |
| 2 | 821773A2 | CLAMP BRACKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 8252711 | ANODE | 825271 | SS |
|
$19.80 | $19.31 | 1 | |
| 4 | 8M0204707 | SCREW (M6 x 25) | 4000330 | SS |
|
$4.00 | $3.91 | 2 | |
| 5 | 8M0204649 | WASHER (.281 x .500 x .06 | 29245 | SS |
|
$1.20 | $1.18 | 2 | |
| 6 | 82671117 | NUT | 8M0027784 | SS |
|
$9.00 | $8.78 | 4 | |
| 7 | 8M0204648 | WASHER (1.5 x 3.05 x 0.13 | 28421 | SS |
|
$4.00 | $3.91 | 4 | |
| 8 | 814259 | SCREW (.500-20 x 4.00) | ACT | $19.08 | $18.74 | 4 | |||
| 9 | 822401 | CAP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 25319 | PIN (.125 x 0.75 Inches) | ACT | $5.10 | $4.98 | 1 | |||
| 11 | 823589 | BUSHING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 8224001 | PIN | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 4009040 | SCREW (M10 x 40) Stainless Steel | ACT | $14.10 | $13.75 | 2 | |||
| 14 | 4002319 | WASHER | ACT | $3.20 | $3.13 | 2 | |||
| 15 | 40140 | NUT (M10) | 13914 | SS |
|
$3.39 | $3.30 | 2 | |
| 16 | 8237011 | DECAL Co-Pilot | ACT | $2.60 | $2.54 | 1 |
