| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

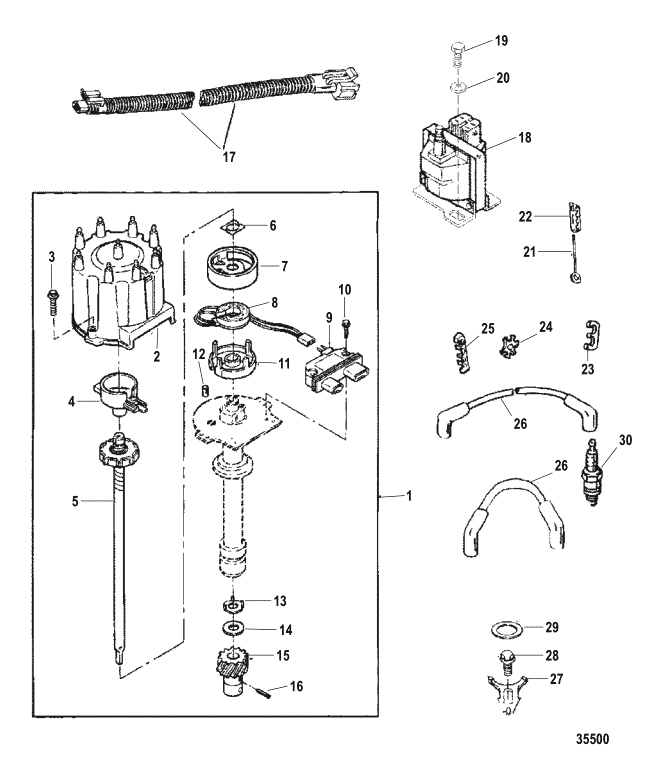

| 1 | 805222A1 | DISTRIBUTOR ASSEMBLY | ACT |
|
$1,105.50 | $1,013.44 | 1 | ||
| 2 | 808483T3 | ----CAP | 808483 | SS |
|
$45.99 | $45.07 | 1 | |
| 3 | 808491 | ----SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 4 | 8M6001253 | ----ROTOR | 808484 | SS |
|
$17.79 | $17.42 | 1 | |
| 5 | 808485T | ----SHAFT ASSEMBLY Main | 808485 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 6 | 808487 | ----RETAINER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 808486 | ----SHIELD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 811639T | ----COIL | 811639 | SS |
|
$41.99 | $41.17 | 1 | |
| 9 | 8M6008208 | ----MODULE | 811637 | SS |
|
$262.92 | $247.59 | 1 | |
| 10 | 811638 | ----SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 11 | 811641 | ----POLE PIECE | ACT | $43.08 | $42.29 | 1 | |||
| 12 | 808488 | ----PIN | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 46350 | ----WASHER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 808489 | ----WASHER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 808490 | ----GEAR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 34109 | ----PIN | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 817376T01 | HARNESS ASSEMBLY Distributor Module to Ignition Coil | 817376T | REP |
|
$90.25 | $86.81 | 1 | |
| 18 | 806673T1 | COIL Ignition | 806673T | SS |
|
$226.25 | $213.06 | 1 | |
| 19 | 86750 | SCREW (.312-18 x .620) | ACT | $1.00 | $0.98 | 2 | |||
| 20 | 20084 | WASHER (.328 x .562 x .06 | ACT | $2.83 | $2.77 | 2 | |||
| 21 | 90096A1 | STUD ASSEMBLY (#10-32 x Special) | ACT |
|
$15.60 | $15.22 | 2 | ||
| 22 | 72821 | ----RETAINER | ACT | $5.50 | $5.37 | 2 | |||
| 23 | 54676 | RETAINER Two Wire | ACT | $5.20 | $5.08 | 2 | |||
| 24 | 32783 | RETAINER Three Wire | ACT | $4.10 | $4.00 | 2 | |||
| 25 | 32784 | RETAINER Four Wire | NLA |
|
$0.00 | $0.00 | 2 | ||
| 26 | 816608Q70 | CABLE KIT Ignition (SPARK PLUGS AND COIL) | 816608A70 | SS |
|
$107.99 | $101.79 | 1 | |
| 27 | 88731 | CLAMP | 52185 | SS |
|
$10.00 | $9.76 | 1 | |
| 28 | 805559 | SCREW (.375-16 x .875) Stainless Steel | ACT | $10.30 | $10.05 | 1 | |||
| 29 | 344863 | GASKET | ACT |
|
$2.70 | $2.64 | 1 | ||
| 30 | 816336Q | SPARK PLUG | 816336 | SS |
|
$6.69 | $6.54 | 8 | |
| - | 861246A05 | GASKET SET | 861246A98 | SS |
|
$826.71 | $777.78 | 1 |
