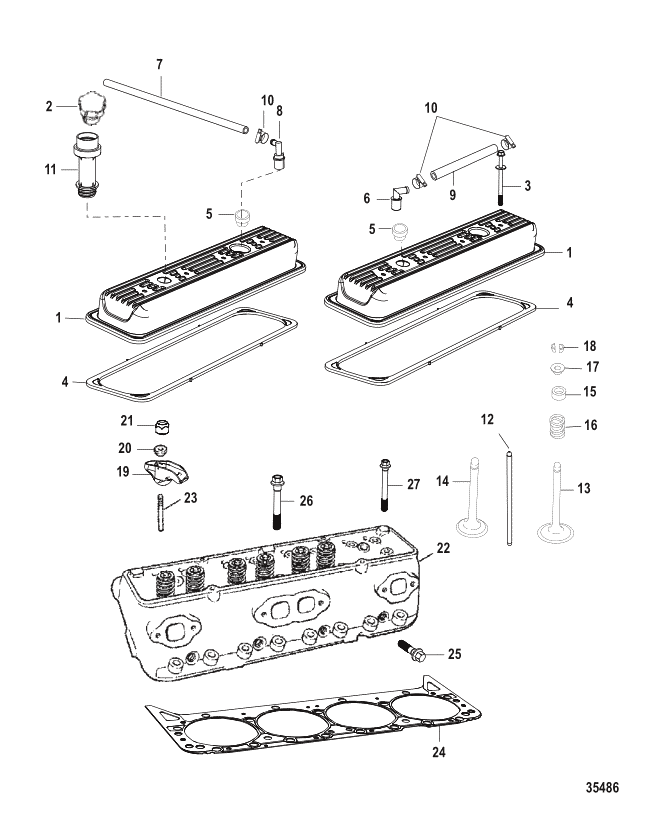

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 809995 | COVER Rocker (W/ OIL FILL HOLE) | ACT | $241.92 | $227.82 | 1 | |||
| 1 | 809996 | COVER Rocker (W/O OIL FILL HOLE) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 18710002 | CAP Oil Fill | 187101 | SS |
|
$38.92 | $38.22 | 1 | |
| 3 | 8M0084557 | SCREW | 17344 | SS |
|
$33.92 | $33.31 | 8 | |
| 4 | 8M0150306 | GASKET Rocker Cover | 17467 | SS |
|
$112.25 | $105.71 | 2 | |
| 5 | 8M0071559 | GROMMET | 52188 | SS |
|
$8.50 | $8.29 | 2 | |
| 6 | 97850T | ELBOW 90 Degree Breather | 97850 | SS |
|
$5.70 | $5.56 | 1 | |
| 7 | 8M0062321 | HOSE | 80617435 | SS |
|
$53.42 | $51.38 | 1 | |
| 8 | 8M2017060 | VALVE PCV | 861476 | SS |
|
$13.20 | $12.94 | 1 | |
| 9 | 8M0086022 | HOSE Breather | 1589418 | SS |
|
$36.33 | $35.68 | 1 | |
| 10 | 815504105 | CLAMP Worm Gear (11-18 mm) | ACT | $4.06 | $3.96 | 2 | |||
| 11 | 807688T | TUBE Oil Fill | ACT | $106.58 | $100.37 | 1 | |||
| 12 | 173391 | PUSH ROD | ACT | $46.67 | $45.83 | 16 | |||
| 13 | 8M0231307 | VALVE Exhaust (STANDARD) | 8243171 | SS |
|
$117.50 | $110.65 | 8 | |
| 13 | 8243181 | VALVE Exhaust (.030 O.S.) | NLA |
|
$0.00 | $0.00 | AR | ||
| 14 | 8M0146076 | VALVE Intake (STANDARD) | 809992 | REP |
|
$56.25 | $55.13 | 8 | |
| 15 | 8M0050563 | SEAL (INTAKE AND EXHAUST) | 976641 | SS |
|
$11.80 | $11.51 | 16 | |
| 16 | 483471 | SPRING | ACT | $45.00 | $44.19 | 16 | |||
| 17 | 483481 | CAP | ACT | $19.60 | $19.12 | 16 | |||
| 18 | 547971 | KEY | ACT | $17.10 | $16.68 | 32 | |||
| 19 | 8M0173156 | ARM KIT Rocker | 35329 | REP |
|
$74.00 | $71.18 | 16 | |
| 20 | 35331 | ----BALL Rocker Arm | NLA |
|
$0.00 | $0.00 | 16 | ||
| 21 | 34516 | ----NUT | ACT | $20.70 | $20.19 | 16 | |||
| 22 | 97181 | CYLINDER HEAD ASSEMBLY |
|
$0.00 | $0.00 | 2 | |||
| 23 | 34522 | ----STUD (.003 O.S.) | ACT |
|
$15.10 | $14.73 | AR | ||
| 23 | 34521 | ----STUD (.013 O.S.) | NLA |
|
$0.00 | $0.00 | AR | ||
| 24 | 75611001 | GASKET | 75611 | SS |
|
$65.75 | $63.47 | 2 | |
| 25 | 11968 | SCREW (.437-14 x 1.750) | ACT | $16.30 | $15.90 | 16 | |||
| 26 | 119671 | SCREW (.437-14 x 3.00) | ACT | $17.10 | $16.68 | 4 | |||
| 27 | 11966 | SCREW (.437-14 x 3.750) | ACT | $16.50 | $16.09 | 14 | |||
| 28 | 92850 | CLAMP | ACT | $4.10 | $4.00 | 1 | |||
| 29 | 91034 | SPACER (.380 x 1.00 x .530) | ACT | $23.25 | $22.83 | 1 | |||
| 30 | 37612 | SCREW (.375-16 x 1.250) | ACT | $2.50 | $2.44 | 1 | |||
| - | 75611A98 | GASKET SET Engine Overhaul | ACT | $944.79 | $888.86 | 1 |
