Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

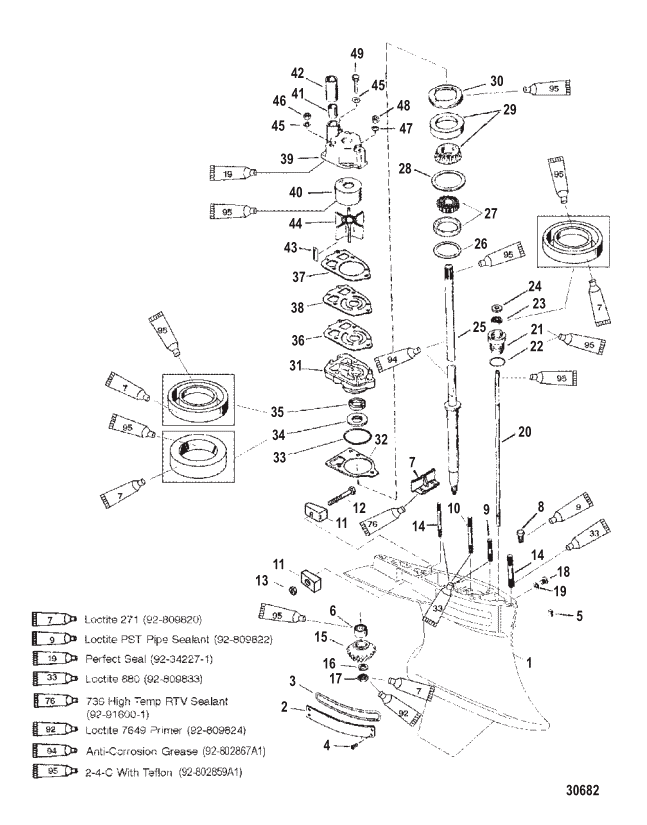

1 8M0084203 GEAR HOUSING ASSEMBLY Basic-Without Torque Tab 848474A39 SS/NLA $0.00 $0.00 1
2 847950T3 ----COVER 8479503 SS/NLA $0.00 $0.00 2
3 34776 ----O-RING ACT $8.56 $8.44 2
4 815904 ----SCREW (#10-32 x .500) ACT $2.38 $2.34 12
5 43044 ----PIN Dowel - Without Hole (.375 x .625) ACT $2.49 $2.43 2
6 42647A1 ----BEARING ASSEMBLY Roller ACT $65.99 $62.16 1
7 8M0039169 ----FILLER BLOCK 67891 SS $31.99 $31.34 1
8 847949 ----PLUG Pipe ACT $52.12 $49.82 1
9 8M0034463 ----STUD (.312-18/.324-24 x 3.380) 562972 SS $17.89 $17.52 1
10 69501 ----STUD (5/16 X 3-1/4 IN.) ACT $3.59 $3.50 1
11 59579 ----STUD (.437-14/.437-20 x 2.812) ACT $8.69 $8.49 3
11 786382 ----STUD (.437-14/.437-20 x 3.120) ACT $6.79 $6.64 1
11 8M0133358 ----STUD (.437-14/.437-20 x 2.060) 579203 SS $17.29 $16.94 2
11 74730 ----STUD NLA $0.00 $0.00 2
11 74732 ----STUD NLA $0.00 $0.00 3
11 78639 ----STUD NLA $0.00 $0.00 1
12 826134Q ----ANODE 826134 SS $16.49 $16.09 2
13 4000333 ----SCREW (M6 x 40) ACT $4.09 $4.00 1
14 401386 ----NUT (M6) 8268336 SS $5.09 $4.98 1
15 NSS NOT SOLD SEPARATE Pinion Gear-Part of 43-15845A2 or 43-817515A2 $0.00 $0.00 1
16 92721 WASHER ACT $1.50 $1.47 1
17 35921 NUT (.625-18) ACT $7.99 $7.81 1
18 79953Q04 SCREW KIT (.375-16 x .250) 79953A2 SS $7.49 $7.32 1
19 191833 ----WASHER Fiber 19183 ACT $1.45 $1.42 1
20 789022 SHIFT SHAFT (LOWER) ACT $84.99 $79.97 1
21 77631A2 BUSHING ASSEMBLY ACT $29.49 $28.97 1
22 25439 ----O-RING (.862 x .103) ACT $1.99 $1.95 1
23 8M0204708 ----SEAL Oil 8164641 SS $16.99 $16.58 1
24 77674 ----WASHER ACT $1.80 $1.76 1
25 8M0192233 DRIVESHAFT ASSEMBLY 848449A4 SS $1,631.19 $1,460.54 1
25 8M0192234 DRIVESHAFT ASSEMBLY 848449A5 SS $1,580.15 $1,414.84 1
25 848449A6 DRIVESHAFT ASSEMBLY NLA $0.00 $0.00 1
26 8M0063268 SHIM ASSEMBLY 38657A1 REP $30.89 $30.28 1
27 8M0146553 BEARING Tapered Roller 48939A2 SS $26.59 $26.11 1
28 8M0063267 SHIM SET 42637A1 REP $27.79 $27.25 AR
29 8M0146566 BEARING ASSEMBLY Roller/Cup 36387A1 SS $74.99 $70.48 1
30 8245191 RETAINER 824519 SS $6.99 $6.83 1
31 44292A3 BASE ASSEMBLY Water Pump ACT $43.49 $42.72 1
32 8M0204678 ----GASKET 426311 SS $4.09 $4.00 1
33 8M0142854 ----O-RING (2.175 x .175) 90011 SS $1.10 $1.08 1
34 89238 ----SEAL Oil ACT $21.19 $20.79 1
35 16977 ----SEAL Oil ACT $18.69 $18.33 1
36 18051 ----GASKET (LOWER) ACT $7.75 $7.65 1
37 858524 ----GASKET (UPPER) 856091 SS $4.09 $4.00 1
38 8M0204677 FACE PLATE 32435 SS $9.29 $9.07 1
39 847710T1 BODY ASSEMBLY Water Pump 847710A1 SS $165.23 $152.93 1
39 96148T1 BODY ASSEMBLY Water Pump 96148A1 SS $51.99 $48.89 1
40 48752T ----INSERT 48752 SS $12.39 $12.10 1
40 48752T ----INSERT 48752 SS $12.39 $12.10 1
41 88397 ----SEAL ACT $5.79 $5.66 1
41 38970 ----SEAL ACT $5.09 $4.98 1
42 847685 ----SLEEVE ACT $60.59 $57.90 1
42 29804T ----SLEEVE 29804 SS $8.99 $8.78 1
43 8M0214992 KEY 56654 SS $4.59 $4.49 1
44 89984T4 IMPELLER 899844 SS $49.49 $48.61 1
45 8M0204649 WASHER (.281 x .500 x .06 29245 SS $1.20 $1.18 2
46 8267119 NUT (.250-28) 13438 SS $2.59 $2.53 2
47 36001 WASHER ACT $1.50 $1.47 1
48 13436 NUT ACT $3.29 $3.21 1
49 8M0215009 SCREW (#14-8 x 2.25) 96411 SS $1.90 $1.86 1
- 89238A3 SEAL KIT Gear Housing ACT $165.68 $153.34 1
- 59579 STUD KIT 90415A24 REP $8.69 $8.49 1
- 90415A25 STUD KIT NLA $0.00 $0.00 1
