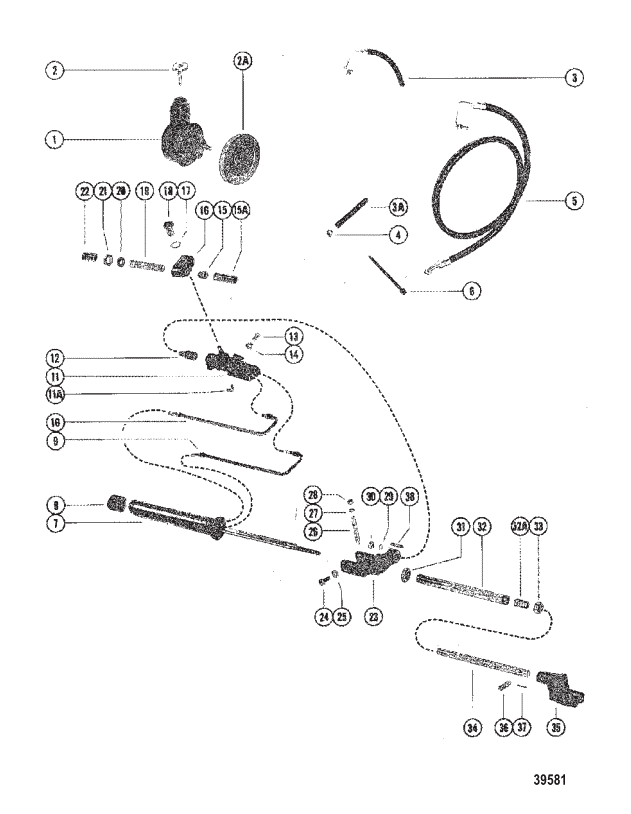

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 90507A5 | PUMP ASSEMBLY Power-Assisted Steering | 71317A8 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 90507A12 | PUMP ASSEMBLY Power-Assisted Steering | 90507A1 | SS |
|
$910.99 | $829.52 | 1 | |
| 2 | 39924 | ----CAP FILLER-HYDRAULIC PUMP | 38333 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 2A | 73873A1 | ----PULLEY HYDRAULIC PUMP | 73873 | SS |
|
$221.49 | $199.46 | 1 | |
| 3 | 9884339 | HOSE RETURN-VALVE TO OIL COOLER (32") | 65929 | SS |
|
$97.99 | $92.21 | 1 | |
| 3A | 9884339 | HOSE RETURN-OIL COLLER TO HYDRAULIC PUMP (40") | 8M0027775 | SS |
|
$97.99 | $92.21 | 1 | |
| 4 | 815504206 | CLAMP RETURN HOSE TO HYDRAULIC PUMP | 35830 | SS |
|
$6.79 | $6.64 | 3 | |
| 5 | 55116 | HOSE (72 Inches) PRESSURE-POWER STEERING (60")-NON METRIC | ACT | $127.49 | $114.72 | 1 | |||
| 5 | 90494 | HOSE PRESSURE-POWER STEERING (60")-METRIC | ACT | $196.99 | $177.53 | 1 | |||
| 6 | 61990 | TIE STRAP (14.00 Inches) HYDRAULIC HOSES | ACT | $0.70 | $0.69 | 1 | |||
| 7 | 57969A12 | CYLINDER BOOSTER | 57969 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| - | 58224 | ----O-RING KIT | 58224A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 8 | 26059 | CAP RUBBER-BOOSTER CYLINDER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 57633 | TUBE EXTENDING-POWER STEERING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 57634 | TUBE RETRACTING-POWER STEERING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 816458A1 | VALVE ASSEMBLY POWER STEERING | 52779A2 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| - | 58226A1 | ----O-RING KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11A | 67305 | FITTING Grease POWER STEERING VALVE | NLA |
|
$3.10 | $3.03 | 1 | ||
| 12 | 55109T | STUD ADAPTOR-POWER STEERING VALVE | 55109 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 13 | 37612 | SCREW (.375-16 x 1.250) CLAMPING | ACT | $2.49 | $2.43 | 1 | |||
| 14 | 35048 | LOCKWASHER (3/8) CLAMPING SCREW | 37459 | SS |
|
$1.20 | $1.18 | 1 | |
| 15 | 60773 | SLEEVE ADJUSTING-CABLE GUIDE TUBE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15A | 60652 | SLEEVE ADJUSTING-CABLE GUIDE TUBE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 55110T | ADAPTER CABLE GUIDE TUBE (DUAL) | 55110 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 17 | 20897 | LOCKWASHER DUAL ADAPTOR NUT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 55111 | NUT DUAL ADAPTOR TO POWER STEERING VALVE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 55112 | TUBE CABLE GUIDE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 37985 | WASHER CABLE GUIDE TUBE | NLA |
|
$0.00 | $0.00 | 2 | ||
| 21 | 8M0041651 | NUT (.875-14) CABLE GUIDE TUBE | 37984 | SS |
|
$15.89 | $15.51 | 2 | |
| 22 | 64414 | GUIDE CABLE GUIDE TUBE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 57286 | BRACKET MOUNTING-TRANSOM PLATE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 31832 | BOLT (.500-20 x 1.00) MOUNTING BRACKET TO TRANSOM PLATE | NLA |
|
$0.00 | $0.00 | 2 | ||
| 25 | 31848 | LOCKWASHER (.500) MOUNTING BRACKET SCREW | NLA |
|
$1.57 | $1.53 | 2 | ||
| 26 | 57968 | SCREW (.375-24 x 3.00) ADJUSTING-MOUNTING BRACKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | 35048 | LOCKWASHER (3/8) ADJUSTING SCREW | 37459 | SS |
|
$1.20 | $1.18 | 1 | |
| 28 | 46335 | NUT ADJUSTING SCREW | 24883 | SS |
|
$2.97 | $2.92 | 1 | |
| 29 | 20959 | WASHER VALVE ADAPTOR STUD | ACT | $2.59 | $2.53 | 1 | |||
| 30 | 898832 | NUT (.500-20) VALVE ADAPTOR STUD | 28040 | SS |
|
$3.69 | $3.59 | 1 | |
| 31 | 32882 | NUT (.875-14) MOUNTING TUBE | ACT | $9.49 | $9.27 | 1 | |||
| 32 | 57971 | TUBE MOUNTING-BOOSTER ROD EXTENSION | NLA |
|
$0.00 | $0.00 | 1 | ||
| 32A | 78498 | SPRING TORSION-MOUNTING TUBE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 33 | 55983 | NUT (.875-14) JAM-MOUNTING TUBE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 34 | 57970 | ROD Extender CYLINDER BOOSTER ROD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 35 | 86069T | ADAPTER ROD END | 86069 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 36 | 52798 | PIN Clevis STEERING CABLE AND CLEVIS ATTACHING | ACT | $7.49 | $7.32 | 2 | |||
| 37 | 46950 | COTTER PIN CLEVIS PIN RETAINING | ACT | $4.19 | $4.10 | 2 | |||
| 38 | 239281 | PIN MOUNTING BRACKET | 23928 | SS |
|
$4.39 | $4.30 | 1 |
