| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

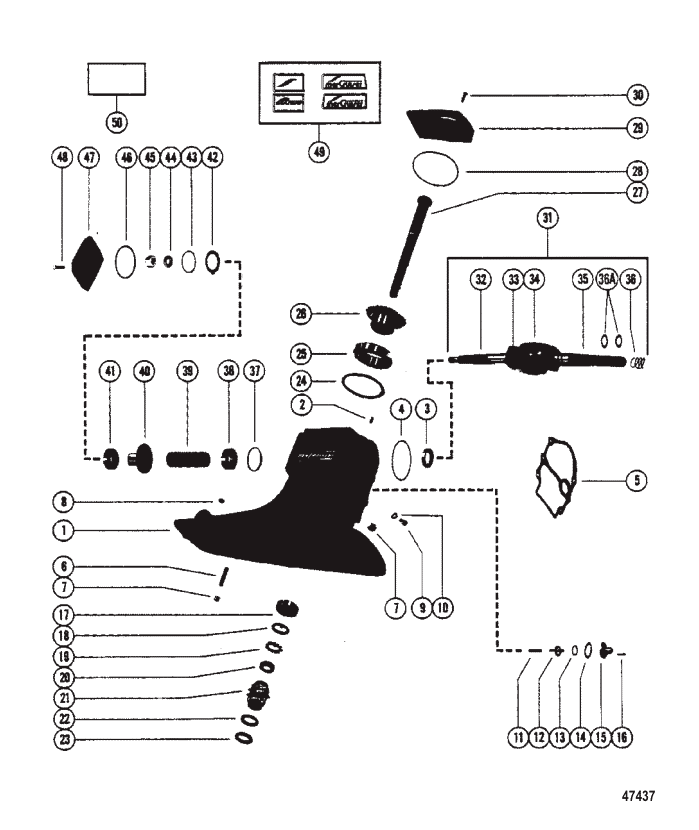

| 1 | 4847A5 | HOUSING ASSEMBLY Driveshaft | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 21934 | ----SCREW (.375-16 x .500) SET - DRIVE SHAFT HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 62818 | ----SEAL DRIVE SHAFT HOUSING | ACT | $29.92 | $29.38 | 1 | |||
| 4 | 62817 | O-RING DRIVE SHAFT HOUSING | ACT |
|
$8.80 | $8.59 | 1 | ||
| 5 | 54014Q1 | ----GASKET DRIVE SHAFT HOUSING TO BELL HOUSING | 54014A1 | SS |
|
$13.79 | $13.46 | 1 | |
| 6 | 54674 | ----STUD (.437-14/.437-20 x 2.250) DRIVE SHAFT HOUSING (2-1/4") | NLA |
|
$62.33 | $59.96 | 6 | ||
| 7 | 8M0204653 | NUT (.437-20) Stainless S DRIVE SHAFT HOUSING STUD | 34933 | SS |
|
$5.29 | $5.17 | 6 | |
| 8 | 47579 | PLUG TRIM TAB HOLE | ACT | $1.60 | $1.57 | 1 | |||
| 9 | 79953Q04 | SCREW (.375-16 x .250) VENT | 79953 | SS |
|
$7.49 | $7.31 | 1 | |
| 10 | 191833 | WASHER SEALING | 20260 | SS/NLA |
|
$1.45 | $1.42 | 1 | |
| 11 | 48442 | SPRING TENSION | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 48219 | CHECK VALVE | ACT | $72.83 | $70.06 | 1 | |||
| 13 | 48452 | QUAD RING | ACT | $6.70 | $6.54 | 1 | |||
| 14 | 66925 | GASKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 54168 | GUIDE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 22523 | SCREW (.190-32 x .75) | NLA |
|
$0.00 | $0.00 | 3 | ||
| 17 | 38356A1 | BEARING SET DRIVE SHAFT | ACT | $95.50 | $91.86 | 1 | |||
| 18 | 62795 | WASHER DRIVE SHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 62788 | LOCKWASHER DRIVE SHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 41527T | NUT DRIVE SHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | 62787A2 | COUPLING ASSEMBLY OIL SLINGER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 36178A02 | SHIM ASSEMBLY ROLLER BEARING TO COUPLING | 39899A1 | SS |
|
$17.99 | $17.56 | AR | |
| 23 | 62797 | WASHER ROLLER BEARING TO COUPLING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 846353A1 | SHIM SET TAPERED ROLLER BEARING | 32061A1 | NLA |
|
$128.24 | $121.20 | AR | |
| 25 | 62799A1 | BEARING SET DRIVE GEAR | ACT | $96.17 | $92.50 | 1 | |||
| 26 | 62879T1 | GEAR Driven DRIVE SHAFT (32 TEETH) | 62879T | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 27 | 62793T | DRIVESHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 28 | 67202 | O-RING TOP COVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 29 | 62911T | COVER TOP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 30 | 35047 | SCREW (.375-16 x 1.250) S COVER (1-1/4") | ACT | $3.80 | $3.71 | 4 | |||
| 31 | 62782A8 | UNIVERSAL JOINT ASSEMBLY (MERCURY MARINE TRANSMISSION) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 31 | 62782A4 | UNIVERSAL JOINT ASSEMBLY (BORG WARNER TRANSMISSION) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 32 | 62782A6 | ----STUB ASSEMBLY UNIVERSAL JOINT (GEAR END) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 33 | 75832T1 | ----CROSS AND BEARING | 75832A2 | SS |
|
$98.49 | $94.94 | 2 | |
| 34 | 393831 | ----SOCKET Center CENTER - UNIVERSAL JOINT | 39383T | SS |
|
$155.67 | $146.60 | 1 | |
| 35 | 62784A1 | ----STUB ASSEMBLY UNIV. JOINT (COUPLING END) | ACT |
|
$386.25 | $362.71 | 1 | ||
| 36 | 62727 | ----SPRING UNIVERSAL JOINT | ACT |
|
$21.33 | $20.95 | 1 | ||
| 35 | 57749A1 | ----YOKE ASSEMBLY UNIVERSAL (COUPLING END) | ACT |
|
$452.14 | $432.19 | 1 | ||
| 36A | 25439 | --------O-RING (.862 x .103) UNIVERSAL | ACT |
|
$2.00 | $1.96 | 2 | ||
| 37 | 62833A1 | SHIM SET ROLLER BEARING TO HOUSING | NLA |
|
$40.20 | $39.48 | AR | ||
| 38 | 38356A1 | BEARING SET UNIVERSAL JOINT | ACT | $95.50 | $91.86 | 1 | |||
| 39 | 62789 | SPACER TAPERED ROLLER BEARING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 40 | 62878 | GEAR (24 TEETH) | 62878T | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 41 | 8M0103475 | BEARING ASSEMBLY Tapered Roller PINION GEAR | 54038A1 | SS |
|
$143.83 | $135.45 | 1 | |
| 42 | 62786 | WASHER TAPERED ROLLER BEARING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 43 | 55499A1 | SHIM ASSEMBLY TAPERED ROLLER BEARING | ACT | $22.42 | $22.02 | AR | |||
| 44 | 48912 | WASHER PINION GEAR TO UNIVERSAL JOINT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 45 | 82671327 | NUT (1.00-14) PINION GEAR TO UNIVERSAL JOINT | 34862 | SS |
|
$9.90 | $9.66 | 1 | |
| 46 | 39695 | O-RING REAR COVER | ACT | $7.10 | $6.93 | 1 | |||
| 47 | 62785T | COVER REAR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 48 | 35047 | SCREW (.375-16 x 1.250) S REAR COVER (1-1/4") | ACT | $3.80 | $3.71 | 4 | |||
| 49 | 14489A90 | DECAL SET DRIVE SHAFT HOUSING (330 TR/TRS/370) | 14489A87 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 50 | 77386 | DECAL "228" | NLA |
|
$0.00 | $0.00 | 1 | ||
| 50 | 77412 | DECAL "330" | NLA |
|
$0.00 | $0.00 | 1 | ||
| 50 | 16416A87 | DECAL "420" | NLA |
|
$0.00 | $0.00 | 1 |
