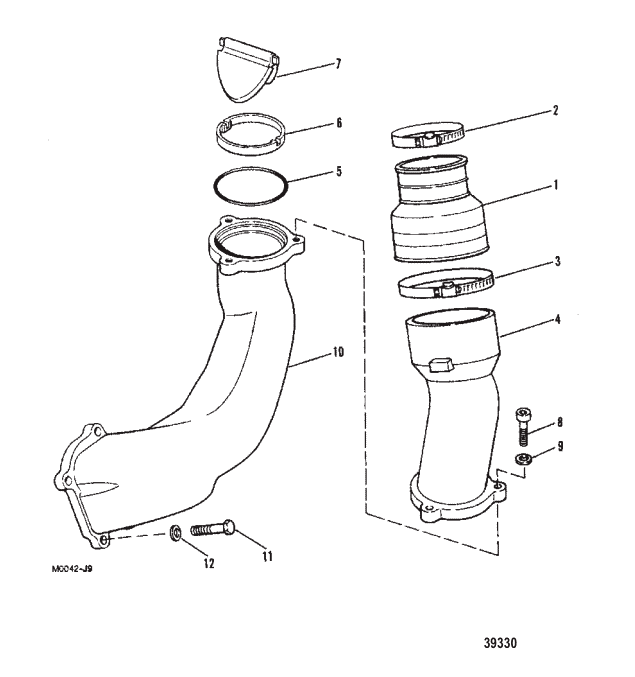

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 70981A3 | BELLOWS ASSEMBLY EXHAUST ELBOW TO ENGINE | ACT | $51.99 | $49.94 | 1 | |||
| 2 | 815504456 | CLAMP BELLOWS (SMALL) | 33683 | SS |
|
$18.50 | $18.04 | 2 | |
| 3 | 815504372 | CLAMP BELLOWS (LARGE) | 31765 | SS |
|
$16.50 | $16.09 | 2 | |
| 4 | 96107A1 | PIPE ASSEMBLY Exhaust UPPER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 35029 | O-RING (78.97 X 3.53 MM) EXHAUST ELBOW | ACT | $3.40 | $3.32 | 1 | |||
| 6 | 60931 | RETAINER WATER SHUTTER | ACT | $21.42 | $21.03 | 1 | |||
| 7 | 60930 | SHUTTER Water | ACT | $42.17 | $41.42 | 1 | |||
| 8 | 8M0113174 | SCREW (.375-16 x 1.25) PIPE TO ELBOW | 58640 | SS |
|
$7.30 | $7.12 | 3 | |
| 9 | 41471 | LOCKWASHER (.375) PIPE SCREW | ACT | $2.30 | $2.25 | 3 | |||
| 10 | 42421A13 | PIPE ASSEMBLY Exhaust LOWER | 95870A4 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 11 | 8M0113174 | SCREW (.375-16 x 1.25) ELBOW TO GIMBAL HOUSING | 58640 | SS |
|
$7.30 | $7.12 | 4 | |
| 12 | 41471 | LOCKWASHER (.375) ELBOW SCREW | ACT | $2.30 | $2.25 | 4 |
