| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

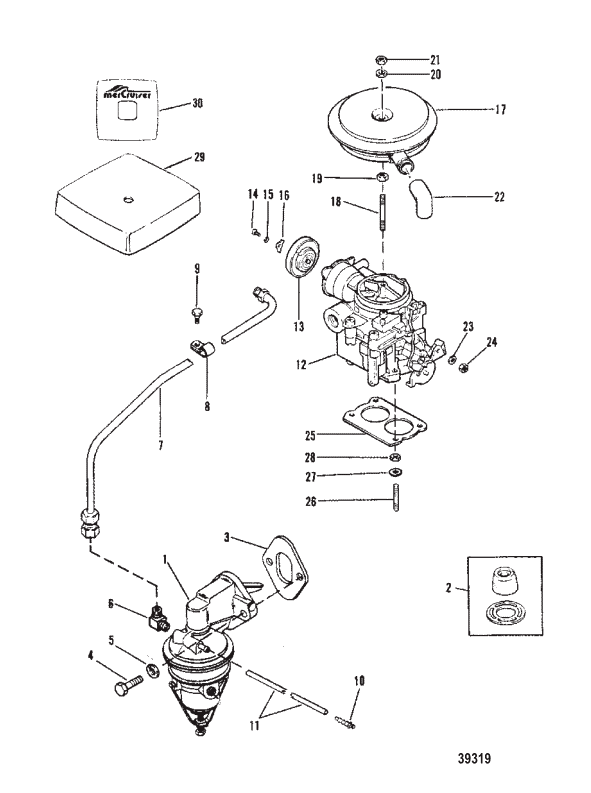

| 1 | 8M0073435 | PUMP ASSEMBLY Fuel Fuel | 42725A3 | SS |
|
$316.49 | $294.21 | 1 | |
| 2 | 8M0046752 | ----FILTER | 11004 | SS |
|
$18.59 | $18.20 | 1 | |
| 3 | 8M0108647 | GASKET FUEL PUMP | 431861 | SS |
|
$18.70 | $18.24 | 1 | |
| 4 | 31984 | SCREW (.312-18 x 1.375) FUEL PUMP TO BLOCK | ACT | $1.80 | $1.76 | 2 | |||
| 5 | 39107 | LOCKWASHER (.312-24) FUEL PUMP SCREW | ACT | $1.50 | $1.47 | 2 | |||
| 6 | 43276 | ELBOW (90 Degree) FUEL LINE | ACT | $19.70 | $19.21 | 1 | |||
| 7 | 147971 | LINE Fuel-PUMP TO CARBURETOR | 14797T1 | SS |
|
$68.67 | $66.05 | 1 | |
| 8 | 65653 | CLIP FUEL LINE TO ROCKER COVER | ACT | $4.99 | $4.88 | 1 | |||
| 9 | 32079 | SCREW (.250-20 x .560) CLIP TO ROCKER COVER | NLA |
|
$0.73 | $0.72 | 1 | ||
| 10 | 54090 | ELBOW VENT TUBE TO CARBURETOR | ACT | $19.00 | $18.66 | 1 | |||
| 11 | 7381567 | HOSE (34.00 Inches Bulk) VENT | 7381563 | SS |
|
$30.99 | $30.36 | 1 | |
| 12 | 860070A2 | CARBURETOR ASSEMBLY (MERCARB) | 9562A1 | SS |
|
$1,158.43 | $1,061.96 | 1 | |
| 13 | 70125A02 | ----COVER CHOKE | 70125A1 | SS |
|
$195.00 | $183.64 | 1 | |
| 14 | 33047 | ----SCREW CHOKE COVER TO CHOKE HOUSING | NLA |
|
$0.00 | $0.00 | 3 | ||
| 15 | 26995 | ----LOCKWASHER (#8) Stainless CHOKE COVER SCREW | ACT | $1.10 | $1.08 | 1 | |||
| 16 | 33036 | ----RETAINER CHOKE COVER SCREW | NLA |
|
$0.00 | $0.00 | 3 | ||
| 17 | 863200 | FLAME ARRESTOR | 85784A1 | SS |
|
$224.58 | $211.50 | 1 | |
| 18 | 70878 | STUD (1/4 x 2.125) FLAME ARRESTOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 8267139 | NUT FLAME ARRESTOR SCREW | 28941 | SS |
|
$2.60 | $2.54 | 1 | |
| 20 | 86400 | WASHER FLAME ARRESTOR STUD | ACT | $1.70 | $1.66 | 1 | |||
| 21 | 826709109 | NUT (.250-28) FLAME ARRESTOR STUD (TOP) | 20586 | SS |
|
$3.60 | $3.52 | 1 | |
| 22 | 807202 | HOSE VENT | 12558 | SS |
|
$22.42 | $22.02 | 1 | |
| 23 | 8M0204666 | WASHER (.203 x .500 x .03 THROTTLE CABLE | 56681 | SS |
|
$1.80 | $1.76 | 1 | |
| 24 | 8267086 | NUT (#10-32) THROTTLE CABLE TO CARBURETOR | 20190 | SS |
|
$1.70 | $1.66 | 1 | |
| 25 | 8079821 | GASKET CARBURETOR (MERCARB) | 701431 | SS |
|
$5.30 | $5.17 | 1 | |
| 26 | 8M0113177 | STUD (.312 x 1.500) CARBURETOR | 70236 | SS |
|
$5.50 | $5.37 | 4 | |
| 27 | 20084 | WASHER (.328 x .562 x .06 CARBURETOR STUD | ACT | $2.83 | $2.77 | 4 | |||
| 28 | 862902 | NUT (.9375-24) CARBURETOR STUD | 25594 | SS |
|
$2.39 | $2.33 | 4 | |
| 18 | 18020 | STUD FLAME ARRESTOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 29 | 17878A5 | COVER Carburetor - FLAME ARRESTOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 30 | 1372350 | DECAL COVER (2.5L) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 30 | 1372351 | DECAL COVER (3.0L) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 30 | 1372356 | DECAL COVER (3.0L-DIGITAL IGNITION) | NLA |
|
$0.00 | $0.00 | 1 |
