| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

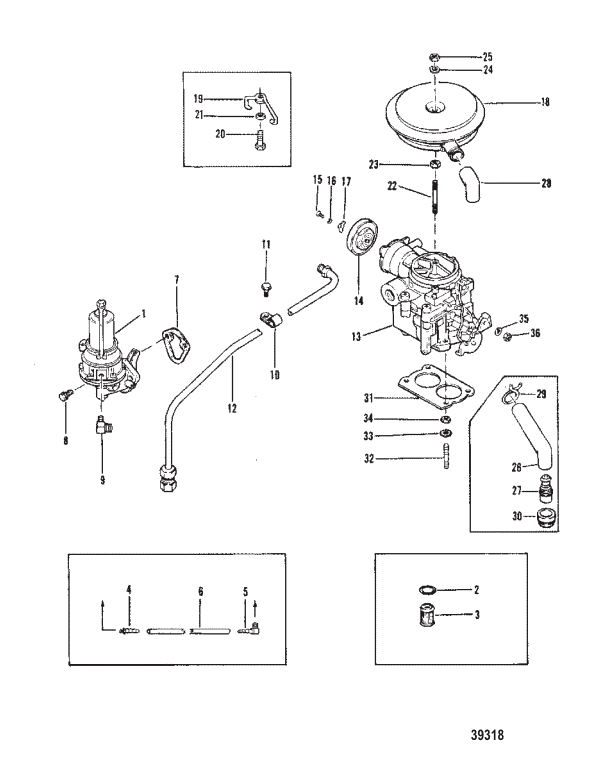

| 1 | 86234A05 | PUMP ASSEMBLY Fuel | 86234A4 | NLA |
|
$590.30 | $555.36 | 1 | |
| 2 | 49089A1 | ----DIAPHRAGM KIT FUEL PUMP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 49088Q2 | ----FILTER FUEL - FUEL PUMP | 49088 | SS |
|
$17.19 | $16.83 | 1 | |
| 4 | 73816 | CONNECTOR VENT TUBE TO CARBURETOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 54090 | ELBOW VENT TUBE TO CARBURETOR | ACT |
|
$19.00 | $18.66 | 1 | ||
| 5 | 73817 | CONNECTOR (90 Degree) VENT TUBE TO FUEL PUMP | ACT | $21.76 | $21.36 | 1 | |||
| 6 | 7381567 | HOSE (34.00 Inches Bulk) VENT | 7381563 | SS |
|
$30.99 | $30.36 | 1 | |
| 7 | 34213 | GASKET FUEL PUMP | ACT |
|
$4.00 | $3.91 | 1 | ||
| 8 | 45488 | BOLT (7/8 In.) FUEL PUMP TO CYLINDER BLOCK (3/4") | NLA |
|
$0.00 | $0.00 | 2 | ||
| 9 | 98646 | FITTING FUEL LINE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 65653 | CLIP FUEL LINE TO ROCKER COVER | ACT | $4.99 | $4.88 | 1 | |||
| 11 | 32079 | SCREW (.250-20 x .560) CLIP TO ROCKER COVER | NLA |
|
$0.73 | $0.72 | 1 | ||
| 12 | 41102A1 | LINE ASSEMBLY Fuel FUEL PUMP TO CARBURETOR | ACT | $79.83 | $76.79 | 1 | |||
| 13 | 8480A2 | CARBURETOR ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 860070A2 | CARBURETOR ASSEMBLY | 9562A1 | SS |
|
$1,158.43 | $1,061.96 | 1 | |
| 14 | 70125A02 | ----COVER CHOKE | 70125A1 | SS |
|
$195.00 | $183.64 | 1 | |
| 15 | 33047 | ----SCREW CHOKE COVER OT CHOKE HOUSING | NLA |
|
$0.00 | $0.00 | 3 | ||
| 16 | 26995 | ----LOCKWASHER (#8) Stainless CHOKE COVER SCREW | ACT | $1.10 | $1.08 | 1 | |||
| 17 | 33036 | ----RETAINER CHOKE COVER SCREW | NLA |
|
$0.00 | $0.00 | 3 | ||
| 18 | 86270 | FLAME ARRESTOR | 86270A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 18 | 863200 | FLAME ARRESTOR | 85784A1 | SS |
|
$224.58 | $211.50 | 1 | |
| 19 | 52734 | BAIL FLAME ARRESTOR TO CARBURETOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 65027 | SCREW (.250-28 x 1.00) FLAME ARRESTOR TO CARB. BAIL (1") | ACT |
|
$2.50 | $2.44 | 1 | ||
| 21 | 8M0204649 | WASHER (.281 x .500 x .06 FLAME ARRESTOR SCREW | 29245 | SS |
|
$1.20 | $1.18 | 1 | |
| 22 | 70878 | STUD (1/4 x 2.125) FLAME ARRESTOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 8267139 | NUT FLAME ARRESTOR SCREW | 28941 | SS |
|
$2.60 | $2.54 | 1 | |
| 24 | 86400 | WASHER FLAME ARRESTOR STUD | ACT | $1.70 | $1.66 | 1 | |||
| 25 | 826709109 | NUT (.250-28) FLAME ARRESTOR STUD (TOP) | 20586 | SS |
|
$3.60 | $3.52 | 1 | |
| 26 | 62060 | HOSE VENT | ACT |
|
$22.08 | $21.69 | 1 | ||
| 26 | 8M0062669 | HOSE VENT | 9331512 | SS |
|
$28.42 | $27.92 | 1 | |
| 27 | 47957 | CONNECTOR VENT HOSE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | 97850T | ELBOW 90 Degree VENT HOSE | 97850 | SS |
|
$5.70 | $5.56 | 1 | |
| 28 | 807202 | HOSE VENT | 12558 | SS |
|
$22.42 | $22.02 | 1 | |
| 29 | 64648 | CLAMP HOSE ATTACHING | NLA |
|
$0.00 | $0.00 | 2 | ||
| 30 | 8M0071559 | GROMMET ROCKER COVER | 52188 | SS |
|
$8.50 | $8.29 | 1 | |
| 31 | 64692 | GASKET CARBURETOR | ACT |
|
$4.00 | $3.91 | 1 | ||
| 31 | 8079821 | GASKET CARBURETOR | 70143 | SS |
|
$5.30 | $5.17 | 1 | |
| 32 | 8M0113177 | STUD (.312 x 1.500) CARBURETOR | 70236 | SS |
|
$5.50 | $5.37 | 4 | |
| 33 | 20084 | WASHER (.328 x .562 x .06 CARBURETOR STUD | ACT | $2.83 | $2.77 | 4 | |||
| 34 | 862902 | NUT (.9375-24) CARBURETOR STUD | 25594 | SS |
|
$2.39 | $2.33 | 4 | |
| 35 | 8M0204666 | WASHER (.203 x .500 x .03 THROTTLE CABLE | 56681 | SS |
|
$1.80 | $1.76 | 1 | |
| 36 | 8267086 | NUT (#10-32) THROTTLE CABLE TO CARBURETOR | 20190 | SS |
|
$1.70 | $1.66 | 1 |
