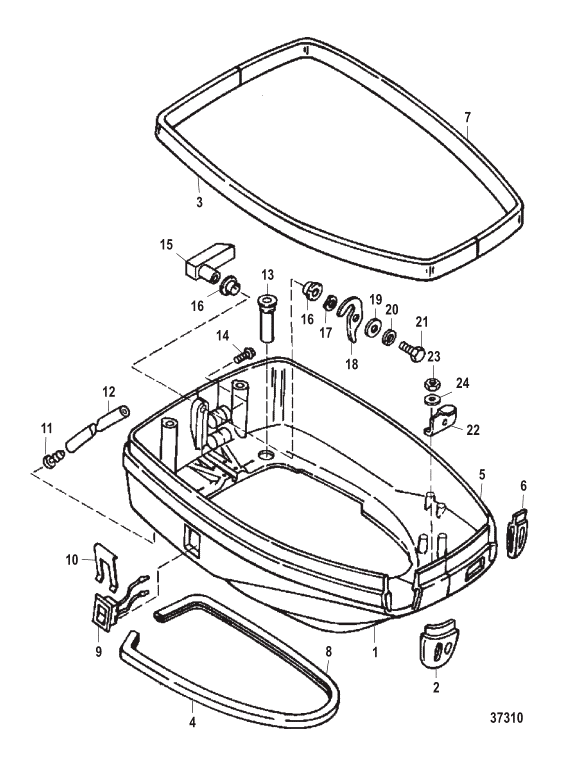

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0113918 | BOTTOM COWL ASSEMBLY Starboard | 821873A1 | SS |
|
$620.71 | $583.97 | 1 | |
| 1 | 821873A2 | BOTTOM COWL ASSEMBLY Starboard | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 821873A3 | BOTTOM COWL ASSEMBLY Starboard | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 822556003 | ----GROMMET | 822556 | SS |
|
$22.08 | $21.69 | 1 | |
| 3 | 8M0109216 | ----SEAL (36.00 Inches) | 8253182 | SS |
|
$57.17 | $54.99 | 1 | |
| 4 | 8238052 | ----SEAL Lower Cowl | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 8M0113919 | BOTTOM COWL ASSEMBLY Port | 821874A1 | SS |
|
$590.14 | $555.21 | 1 | |
| 5 | 821874A2 | BOTTOM COWL ASSEMBLY Port | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 821874A3 | BOTTOM COWL ASSEMBLY Port | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 822555001 | ----GROMMET | 822555 | SS |
|
$22.08 | $21.69 | 1 | |
| 7 | 8M0109216 | ----SEAL (36.00 Inches) | 8253182 | SS |
|
$57.17 | $54.99 | 1 | |
| 8 | 8238052 | ----SEAL Lower Cowl | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 8M0042301 | SWITCH | 850691 | SS |
|
$114.99 | $107.22 | 1 | |
| 10 | 8M0032848 | RETAINER (USE WHERE APPLICABLE) | 8124431 | SS |
|
$11.00 | $10.73 | 1 | |
| 11 | 813613 | FITTING | ACT | $8.01 | $7.81 | 1 | |||
| 12 | 8M0108349 | TUBING (28.00 Inches Bulk) | 83075780 | SS |
|
$64.75 | $62.28 | 1 | |
| 13 | 817519A2 | CHECK VALVE ASSEMBLY Drain | ACT | $17.50 | $17.07 | 2 | |||
| 14 | 82130040 | SCREW (M6 x 40) | ACT | $7.90 | $7.71 | 3 | |||
| 15 | 8M0041366 | HANDLE | 820000A2 | SS |
|
$69.92 | $67.25 | 1 | |
| 15 | 8M0041366 | HANDLE | 820000A3 | REP |
|
$69.92 | $67.25 | 1 | |
| 15 | 8M0041366 | HANDLE | 820000A6 | REP |
|
$69.92 | $67.25 | 1 | |
| 16 | 812707 | BUSHING | ACT | $8.30 | $8.10 | 2 | |||
| 17 | F2047 | WASHER Wave | ACT | $1.70 | $1.66 | 1 | |||
| 18 | 8M0001081 | CAM Latch Shaft | F481777 | SS |
|
$40.92 | $40.18 | 1 | |
| 19 | 8M0214930 | WASHER (6.60 X 17.0 X 1.5 | 4002316 | SS |
|
$1.00 | $0.98 | 1 | |
| 20 | 26992 | LOCKWASHER (.250) Stainle | ACT | $1.20 | $1.18 | 1 | |||
| 21 | 28635 | SCREW (.250-20 x .620) St | ACT | $1.80 | $1.76 | 1 | |||
| 22 | 822363T1 | RETAINER | 8223631 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 23 | 401386 | NUT (M6) | 8268336 | SS |
|
$5.10 | $4.98 | 2 | |
| 24 | 8M0214930 | WASHER (6.60 X 17.0 X 1.5 | 4002316 | SS |
|
$1.00 | $0.98 | 2 |
