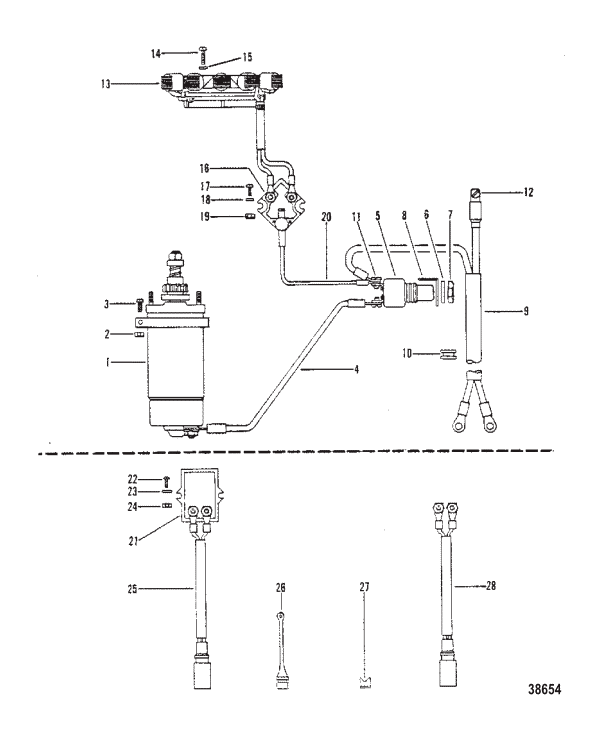

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 78011 | STARTER ASSY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 55511 | SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 3 | 8M0204647 | LOCKWASHER STARTER MOTOR SCREW | 26993 | SS |
|
$1.80 | $1.76 | 2 | |
| 4 | 76741A1 | WIRE ASSY STARTING SWITCH (YELLOW) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 73883 | SWITCH | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 30516 | WASHER STARTING SWITCH | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 74394 | NUT STARTING SWITCH | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 74515 | PROTECTOR STARTING SWITCH | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 72535A4 | CABLE ASSY BATTERY | ACT | $98.99 | $95.22 | 1 | |||
| 10 | 86361 | GROMMET BATTERY CABLE | ACT | $9.89 | $9.66 | 1 | |||
| 11 | 45742 | SCREW BATTERY CABLE ATTACHING | ACT | $1.10 | $1.08 | 1 | |||
| 12 | 98253 | SCREW BATTERY CABLE ATTACHING | ACT | $1.10 | $1.08 | 1 | |||
| 13 | 74367A15 | STATOR ASSY | 74367A12 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 14 | 73696 | SCREW LIGHTING STATOR ATTACHING (1-5/8") | NLA |
|
$0.00 | $0.00 | 2 | ||
| 15 | 26996 | LOCKWASHER LIGHTING STATOR SCREW | ACT | $1.20 | $1.18 | 2 | |||
| 16 | 8M0058226 | RECTIFIER ASSY | 62351A2 | SS |
|
$99.99 | $96.10 | 1 | |
| 17 | 48408 | SCREW RECTIFIER | ACT | $2.29 | $2.25 | 2 | |||
| 18 | 62769 | SPACER RECTIFIER SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 45076 | NUT RECTIFIER TERMINAL | ACT | $1.80 | $1.76 | 3 | |||
| 20 | 61393A9 | WIRE ASSY | NLA |
|
$17.51 | $17.07 | 1 | ||
| 21 | 95845T | REGULATOR-VOLTAGE | 95845 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 22 | 92799 | SCREW | ACT |
|
$1.80 | $1.76 | 2 | ||
| 23 | 62769 | SPACER VOLTAGE REGULATOR SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 24 | 45076 | NUT VOLTAGE REGULATOR TERMINAL | ACT |
|
$1.80 | $1.76 | 2 | ||
| 25 | 74725A2 | HARNESS ASSY (BLACK/RED) | ACT |
|
$26.59 | $26.11 | 1 | ||
| 26 | 71663 | PLUG HARNESS | ACT |
|
$7.29 | $7.12 | 1 | ||
| 27 | 74361 | PLUG HARNESS TO BOTTOM COWL | ACT |
|
$4.29 | $4.20 | 1 | ||
| 28 | 65017A4 | HARNESS ASSY LIGHTING (EXTERNAL) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 74367A15 | STATOR ASSY | 74367A12 | SS/NLA |
|
$0.00 | $0.00 | 1 |
