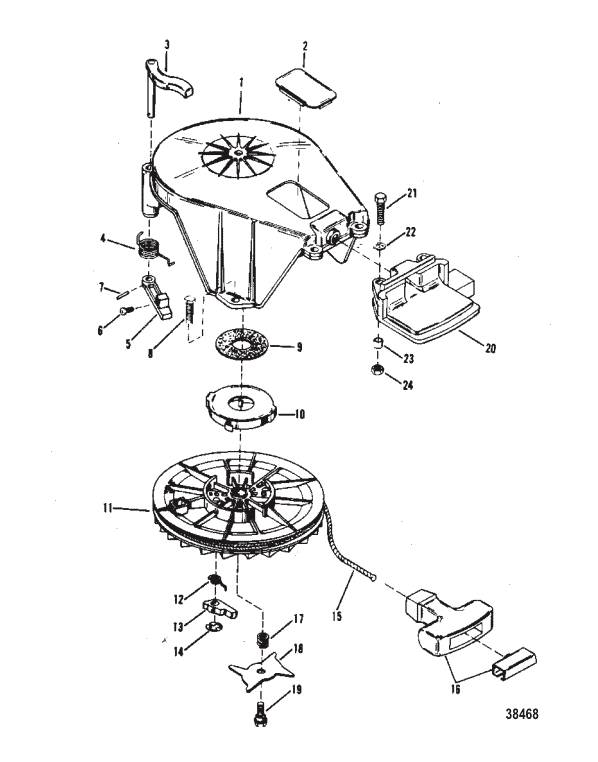

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 86689A5 | HSG KIT-STARTER | 42712A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 2 | 86971 | COVER STARTER HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 858925 | LEVER LOCK (UPPER) | 94019 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 4 | 12734 | SPRING UPPER LOCK LEVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 93876T02 | LEVER LOCK (LOWER) | 938761 | SS |
|
$11.29 | $11.02 | 1 | |
| 6 | 92799 | SCREW LOWER LOCK LEVER | ACT | $1.80 | $1.76 | 1 | |||
| 7 | 38489 | PIN-ROLL LOCK LEVER | ACT | $5.19 | $5.08 | 1 | |||
| 8 | 8M0206596 | SCREW STARTER HOUSING | 4000174 | SS |
|
$0.60 | $0.59 | 2 | |
| 8 | 4000183 | SCREW STARTER HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 833161T | PAD FELT | 90478 | SS |
|
$5.19 | $5.08 | 1 | |
| 10 | 86857T01 | SPRING STARTER | 86857 | SS |
|
$45.49 | $44.61 | 1 | |
| 11 | 825269T01 | SHEAVE STARTER | 42566 | SS |
|
$66.99 | $64.40 | 1 | |
| 12 | 86851T02 | SPRING CAM | 86851 | SS |
|
$4.49 | $4.39 | 2 | |
| 13 | 868501 | CAM DOG | 86850 | SS |
|
$18.99 | $18.66 | 2 | |
| 14 | 86849T01 | RETNING RING CAM | 86849 | SS |
|
$4.79 | $4.69 | 2 | |
| 15 | 12066Q10 | ROPE-STARTER STARTER | 12066A9 | SS |
|
$13.59 | $13.27 | 1 | |
| 16 | 85174A1 | HANDLE ASSY-START STARTER ROPE | ACT | $28.29 | $27.74 | 1 | |||
| 17 | 868523 | SPRING CAM | 86852 | SS |
|
$7.29 | $7.12 | 1 | |
| 18 | 86853T01 | CAM | 86853 | SS |
|
$8.89 | $8.68 | 1 | |
| 19 | 826253 | SCREW CAM TO STARTER SHEAVE | 97516 | SS |
|
$3.99 | $3.91 | 1 | |
| 20 | 426264 | REST STARTER HANDLE | 42626 | SS |
|
$20.79 | $20.38 | 1 | |
| 21 | 40019111 | SCREW SUPPORT TO STARTER HOUSING (35MM) | 40057111 | SS |
|
$1.10 | $1.08 | 2 | |
| 22 | 4002313 | WASHER SUPPORT SCREW | 4002213 | SS |
|
$19.09 | $18.74 | 2 | |
| 23 | 309772 | SPACER SUPPORT SCREW | 30977 | SS |
|
$4.79 | $4.69 | 4 | |
| 24 | 401385 | NUT SUPPORT SCREW | 400633 | SS |
|
$4.79 | $4.69 | 2 |
