| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

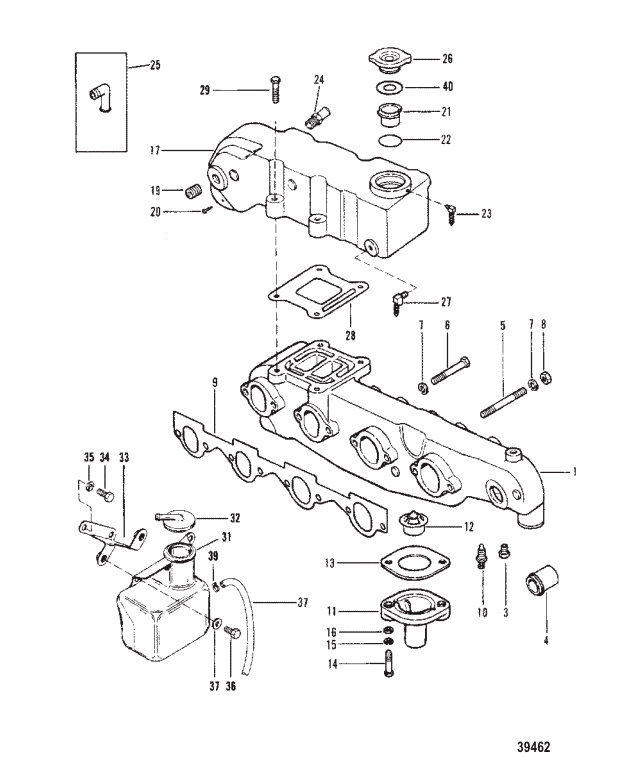

| 1 | 816219A5 | MANIFOLD ASSEMBLY Exhaust | 816219A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 3 | 8M0180565 | ----PLUG Pipe (.375-18) Brass DRAIN | 32803 | SS |
|
$8.01 | $7.81 | 1 | |
| 4 | 72119 | ----SLEEVE | ACT | $48.92 | $48.04 | 1 | |||
| 5 | 8M0034454 | STUD EXHAUST MANIFOLD TO HEAD | 78438 | SS |
|
$16.00 | $15.61 | 3 | |
| 6 | 74727 | SCREW (.375-16 x 6) EXHAUST MANIFOLD TO HEAD (6") | 89679 | SS |
|
$12.90 | $12.58 | 4 | |
| 7 | 35048 | LOCKWASHER (.375) EXHAUST MANIFOLD | ACT | $1.20 | $1.18 | 7 | |||
| 8 | 46335 | NUT EXHAUST MANIFOLD STUD | 24883 | SS |
|
$2.83 | $2.77 | 3 | |
| 9 | 68715 | GASKET EXHAUST MANIFOLD TO HEAD | ACT |
|
$17.75 | $17.43 | 1 | ||
| 10 | 15995 | SENDER WATER TEMPERATURE | ACT | $90.75 | $87.29 | 1 | |||
| 11 | 89659A3 | HOUSING ASSEMBLY Thermostat | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 99155T2 | THERMOSTAT | 99155A1 | SS |
|
$39.99 | $39.26 | 1 | |
| 13 | 896561 | GASKET THERMOSTAT HOUSING TO EXHAUST MANIFOLD | 89656 | SS |
|
$3.00 | $2.93 | 1 | |
| 14 | 73657 | SCREW (.312-18 x 1.50) THERMOSTAT HOUSING | ACT | $3.40 | $3.32 | 2 | |||
| 15 | 39107 | LOCKWASHER (.312-24) THERMOSTAT HOUSING SCREW | ACT | $1.50 | $1.47 | 2 | |||
| 16 | 26825 | WASHER (.328 x .750 x .06 THERMOSTAT HOUSING SCREW | ACT | $1.50 | $1.47 | 2 | |||
| 17 | 98562A6 | ELBOW ASSEMBLY Exhaust | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 8M0204679 | ----FITTING Pipe - Brass (.750-14) | 428611 | SS |
|
$11.00 | $10.73 | 3 | |
| 20 | 28642 | ----SCREW (#2 x 0.25) DRIVE | ACT | $0.21 | $0.21 | 4 | |||
| 21 | 13234A1 | ----BASE FILLER HOLE | ACT |
|
$36.08 | $35.44 | 1 | ||
| 22 | 45257 | --------O-RING (1.489 x .070) FILLER BASE | ACT |
|
$1.80 | $1.76 | 1 | ||
| 23 | 99498 | ----FITTING (THREADED) | ACT | $17.42 | $17.11 | 1 | |||
| 24 | 866725 | FITTING Straight HOSE (W/POWER STEERING) | 45084 | SS |
|
$18.30 | $17.85 | 1 | |
| 25 | 36305T | ELBOW (90 Degrees) HOSE (W/O POWER STEERING) | 36305 | SS |
|
$39.33 | $38.63 | 1 | |
| 26 | 13130 | CAP Pressure - FILLER | ACT | $17.20 | $16.78 | 1 | |||
| 27 | 76170 | ELBOW RESERVIOR BY-PASS | NLA |
|
$0.00 | $0.00 | 1 | ||
| 28 | 18272 | GASKET ELBOW AND RESERVIOR TO MANIFOLD | ACT |
|
$17.58 | $17.27 | 1 | ||
| 29 | 78259 | SCREW (4 Inches) ELBOW AND RESERVIOR TO MANIFOLD | ACT | $3.70 | $3.61 | 4 | |||
| 31 | 91987A1 | BOTTLE COOLANT RECOVERY | ACT |
|
$77.50 | $74.54 | 1 | ||
| 32 | 91989A1 | ----CAP ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 33 | 97864A2 | BRACKET ASSEMBLY BOTTLE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 34 | 47461 | SCREW (.437-14 x 1.00) BOTTLE BRACKET | ACT | $2.30 | $2.25 | 2 | |||
| 35 | 32993 | LOCKWASHER BOTTLE BRACKET SCREW | 37272 | SS |
|
$1.70 | $1.66 | 2 | |
| 36 | 98261 | SCREW (.375-16 x .750) BOTTLE TO BRACKET | ACT | $1.20 | $1.18 | 2 | |||
| 37 | 25909 | WASHER (.406 x .812 x .06 BOTTLE SCREW | ACT | $1.90 | $1.86 | 2 | |||
| 38 | 774572 | HOSE (48.00 Inches Bulk) COOLANT RECOVERY BOTTLE | ACT | $70.25 | $67.57 | 1 | |||
| 39 | 815504104 | CLAMP HOSE ATTACHING | 54428 | SS |
|
$6.80 | $6.64 | 2 | |
| 40 | 71614 | GASKET FILLER CAP | ACT | $4.00 | $3.91 | 1 | |||
| - | 43186A1 | GASKET SET | NLA |
|
$0.00 | $0.00 | 1 |
