| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

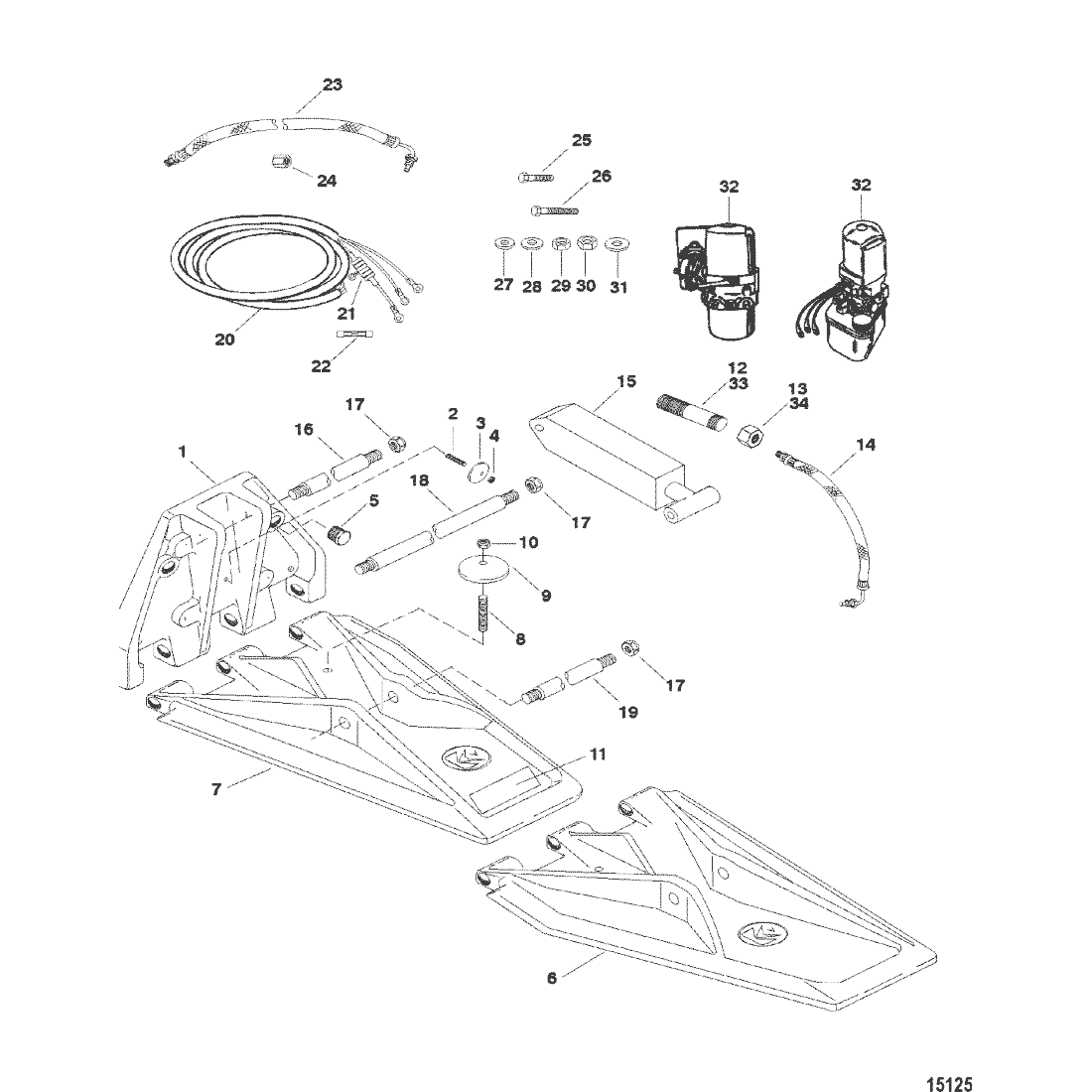

| - | 843754A1 | K PLANE ASSEMBLY | SS |
 |
$0.00 | $0.00 | 1 | ||
| - | 846191A1 | --PLATE ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| - | 846193A1 | --PLATE ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 1 | 847089T2 | ----PLATE ASSEMBLY, Upper | SS |
|
$0.00 | $0.00 | 1 | ||
| 1 | 847090T2 | ----PLATE ASSEMBLY, Upper | SS |
|
$0.00 | $0.00 | 1 | ||
| 2 | 8M0034461 | ------STUD, (#10-32 x .930) | 21085 | SS/ACT |
|
$20.25 | $19.89 | 1 | |
| 3 | 847266 | ------ANODE | ACT | $6.04 | $5.96 | 1 | |||
| 4 | 8267096 | ------NUT, (#10-32) | 890371 | SS/ACT |
|
$3.60 | $3.52 | 1 | |
| 5 | 32804 | ------PLUG, (.500-14), Plug | ACT | $15.90 | $15.51 | 2 | |||
| 6 | 847086T1 | ----PLATE ASSEMBLY, Lower | 847086A1 | SS/ACT |
|
$564.74 | $531.15 | 1 | |
| 7 | 847087T1 | ----PLATE ASSEMBLY, Lower | 847087A1 | SS/ACT |
|
$564.58 | $531.01 | 1 | |
| 8 | 8M0034461 | ------STUD, (#10-32 x .930) | 21085 | SS/ACT |
|
$20.25 | $19.89 | 1 | |
| 9 | 847332 | ------ANODE | ACT | $16.14 | $15.91 | 1 | |||
| 10 | 8267096 | ------NUT, (#10-32) | 890371 | SS/ACT |
|
$3.60 | $3.52 | 1 | |
| 11 | 845461 | ------DECAL, Caution | ACT | $5.25 | $5.17 | 1 | |||
| 12 | 847018 | ----STUD, (.625-11 x 4.500), Hydralic Hose | ACT | $163.12 | $155.88 | 2 | |||
| 13 | 844093 | ----NUT, (.625-11) Special - Hydraulic Hose | ACT | $1.34 | $1.33 | 2 | |||
| 14 | 845975 | ----HOSE, Hydraulic (9.375 Inches) | ACT | $52.74 | $51.20 | 2 | |||
| 15 | 8M0192218 | ----CYLINDER ASSEMBLY, Hydraulic Trim | ACT | $839.56 | $789.63 | 1 | |||
| 16 | 847196 | ----PIN, Upper Trim Cylinder Mount | ACT | $61.38 | $59.58 | 1 | |||
| 17 | 8M0143423 | ----NUT, (.437-20) | 35053 | SS/ACT |
|
$9.10 | $8.88 | 6 | |
| 18 | 847195 | ----PIN, Hinge Upper and Lower Plate | ACT | $83.14 | $80.70 | 1 | |||
| 19 | 847197 | ----PIN, Lower Trim Cylinder Mount | ACT | $60.68 | $58.90 | 1 | |||
| 20 | 846160A2 | HARNESS ASSEMBLY, Wiring | 846160A1 | SS/ACT |
|
$191.76 | $183.24 | 2 | |
| 21 | 846158 | --HOLDER ASSEMBLY, Fuse - With Clips | SS |
|
$0.00 | $0.00 | 1 | ||
| 22 | 846159 | --FUSE, 10 Ampere | ACT | $1.48 | $1.46 | 1 | |||
| 23 | 843556A1 | K-Planes Hose Kit | ACT | $298.75 | $285.48 | OPT | |||
| 23 | 843675A1 | K-Planes Hose Kit | ACT |
|
$377.00 | $360.25 | OPT | ||
| 23 | 845976 | --HOSE ASSEMBLY, Hydraulic (30.00 Inches) | ACT | $74.72 | $72.53 | 4 | |||
| 23 | 845977 | --HOSE, Hydraulic (60.00 Inches Bulk) | ACT | $115.89 | $110.75 | 4 | |||
| 23 | 846051 | HOSE, Hydraulic (96.00 Inches Bulk) | ACT | $151.84 | $145.10 | OPT | |||
| 23 | 848789 | HOSE, Hydraulic (115.00 Inches Bulk) | ACT |
|
$191.70 | $183.19 | OPT | ||
| 24 | 38402 | --FITTING, (.375-24 x 6.250) Brass | ACT | $9.90 | $9.66 | 4 | |||
| 25 | 843373 | SCREW, (.375-16 x 3.500), Mounting | ACT | $4.36 | $4.30 | 4 | |||
| 26 | 843575 | SCREW, (.375-16 x 4.00) Stainless Steel, Mounting | ACT | $8.40 | $8.20 | 4 | |||
| 27 | 841388 | WASHER, (.410 x .810 x .050) Stainless Steel, Mounting | ACT | $0.90 | $0.88 | 8 | |||
| 28 | 845998 | WASHER, (.406 x 1.250 x .089), Mounting | ACT | $3.70 | $3.61 | 8 | |||
| 29 | 82670912 | NUT, (.375-16), Mounting | 68411 | SS/ACT |
|
$6.50 | $6.34 | 8 | |
| 30 | 845997 | NUT, (.625-18), Mounting | ACT | $4.90 | $4.78 | 8 | |||
| 31 | 844850 | WASHER, (.660 x 1.310 x .09) Stainless Steel, Mounting | ACT | $1.20 | $1.19 | 4 | |||
| 32 | 8M0083288 | PUMP/MOTOR ASSEMBLY, Trim | 846183A1 | SS/ACT |
|
$1,312.03 | $1,202.40 | 2 | |
| 32 | 8M0083288 | PUMP/MOTOR ASSEMBLY, Trim, Plastic | 846183A2 | SS/ACT |
|
$1,312.03 | $1,202.40 | 2 | |
| 32 | 8M0083288 | PUMP/MOTOR ASSEMBLY, Trim, Plastic | 849670A05 | SS/ACT |
|
$1,312.03 | $1,202.40 | 2 | |
| 33 | 845521A1 | STUD KIT, (.625-11 x 5.500) Hydraulic Hose | ACT | $563.03 | $529.54 | OPT | |||
| 33 | 845525A1 | STUD KIT, (.625-11 x 6.00) Hydraulic Hose | ACT |
|
$563.03 | $529.54 | OPT | ||
| 34 | 844093 | --NUT, (.625-11) Special - Hydraulic Hose | ACT | $1.34 | $1.33 | 2 |
