Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

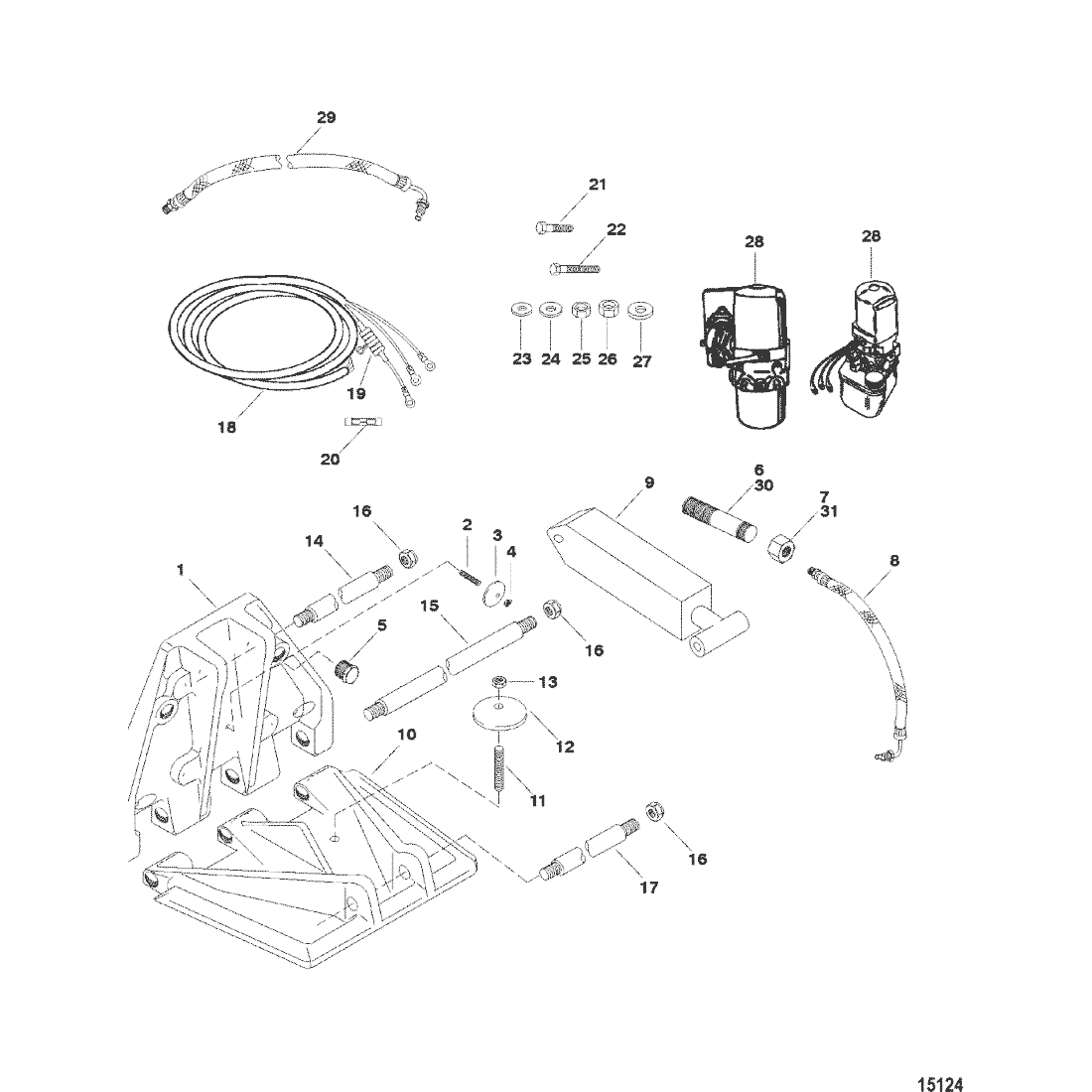

- 846212A1 PLATE ASSEMBLY NLA $0.00 $0.00 1
- 846214A1 PLATE ASSEMBLY NLA $0.00 $0.00 1
1 847089T2 --PLATE ASSEMBLY, Upper 847089A2 SS $0.00 $0.00 1
1 847090T2 --PLATE ASSEMBLY, Upper 847090A2 SS $0.00 $0.00 1
2 8M0034461 ----STUD, (#10-32 x .930) 21085 SS $21.09 $20.71 1
3 847266 ----ANODE ACT $6.22 $6.15 1
4 8267096 ----NUT, (#10-32) 890371 SS $3.69 $3.59 1
5 32804 ----PLUG, (.500-14), Pipe ACT $17.09 $16.68 2
6 847018 --STUD, (.625-11 x 4.500), Hydraulic Hose ACT $168.04 $155.53 2
7 844093 --NUT, (.625-11) Special - Hydraulic Hose ACT $1.38 $1.36 2
8 845975 --HOSE, Hydraulic (9.375 Inches) ACT $54.34 $51.94 2
9 8M0192218 --CYLINDER ASSEMBLY, Hydraulic Trim 845739A10 SS $864.93 $787.46 1
10 845709A1 --PLATE ASSEMBLY, Lower NLA $0.00 $0.00 1
11 8M0034461 ----STUD, (#10-32 x .930) 21085 SS $21.09 $20.71 1
12 847332 ----ANODE ACT $16.62 $16.39 1
13 8267096 ----NUT, (#10-32) 890371 SS $3.69 $3.59 1
14 847196 --PIN, Upper Trim Cylinder Mount ACT $63.23 $60.43 1
15 847195 --PIN, Hinge Upper and Lower Plate ACT $85.65 $81.85 1
16 8M0143423 --NUT, (.437-20) 35053 SS $9.49 $9.27 6
17 847197 --PIN, Lower Trim Cylinder Mount ACT $62.50 $59.73 1
18 846160A2 HARNESS ASSEMBLY, Wiring 846160A1 SS $110.25 $102.38 2
19 846158 --HOLDER ASSEMBLY, Fuse - With Clips NLA $0.00 $0.00 1
20 846159 --FUSE, 10 Ampere ACT $1.53 $1.51 1
21 843373 SCREW, (.375-16 x 3.500), Mounting ACT $4.49 $4.43 4
22 843575 SCREW, (.375-16 x 4.00) Stainless Steel, Mounting ACT $8.69 $8.49 4
23 841388 WASHER, (.410 x .810 x .050) Stainless Steel, Mounting ACT $0.90 $0.88 8
24 845998 WASHER, (.406 x 1.250 x .089), Mounting ACT $3.79 $3.69 8
25 82670912 NUT, (.375-16), Mounting 68411 SS $6.79 $6.64 8
26 845997 NUT, (.625-18), Mounting ACT $5.09 $4.98 8
27 844850 WASHER, (.660 x 1.310 x .09) Stainless Steel, Mounting ACT $1.24 $1.23 4
28 8M0083288 PUMP/MOTOR ASSEMBLY, Trim 846183A1 SS $1,351.64 $1,210.25 2
28 8M0083288 PUMP/MOTOR ASSEMBLY, Trim, Plastic 846183A2 SS $1,351.64 $1,210.25 2
28 8M0083288 PUMP/MOTOR ASSEMBLY, Trim, Plastic 849670A05 SS $1,351.64 $1,210.25 2
29 843556A1 K-Planes Hose Kit ACT $307.77 $284.83 OPT
29 843675A1 K-Planes Hose Kit ACT $388.39 $359.45 OPT
29 845976 --HOSE ASSEMBLY, Hydraulic (30.00 Inches) ACT $76.97 $73.56 4
29 845977 --HOSE, Hydraulic (60.00 Inches Bulk) ACT $119.39 $110.50 4
29 846051 HOSE, Hydraulic (96.00 Inches Bulk) ACT $156.43 $144.78 OPT
29 848789 HOSE, Hydraulic (115.00 Inches Bulk) ACT $197.49 $182.77 OPT
30 845521A1 STUD KIT, (.625-11 x 5.500) Hydraulic Hose ACT $580.03 $528.08 OPT
30 845525A1 STUD KIT, (.625-11 x 6.00) Hydraulic Hose ACT $580.03 $528.08 OPT
31 844093 --NUT, (.625-11) Special - Hydraulic Hose ACT $1.38 $1.36 2
