Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

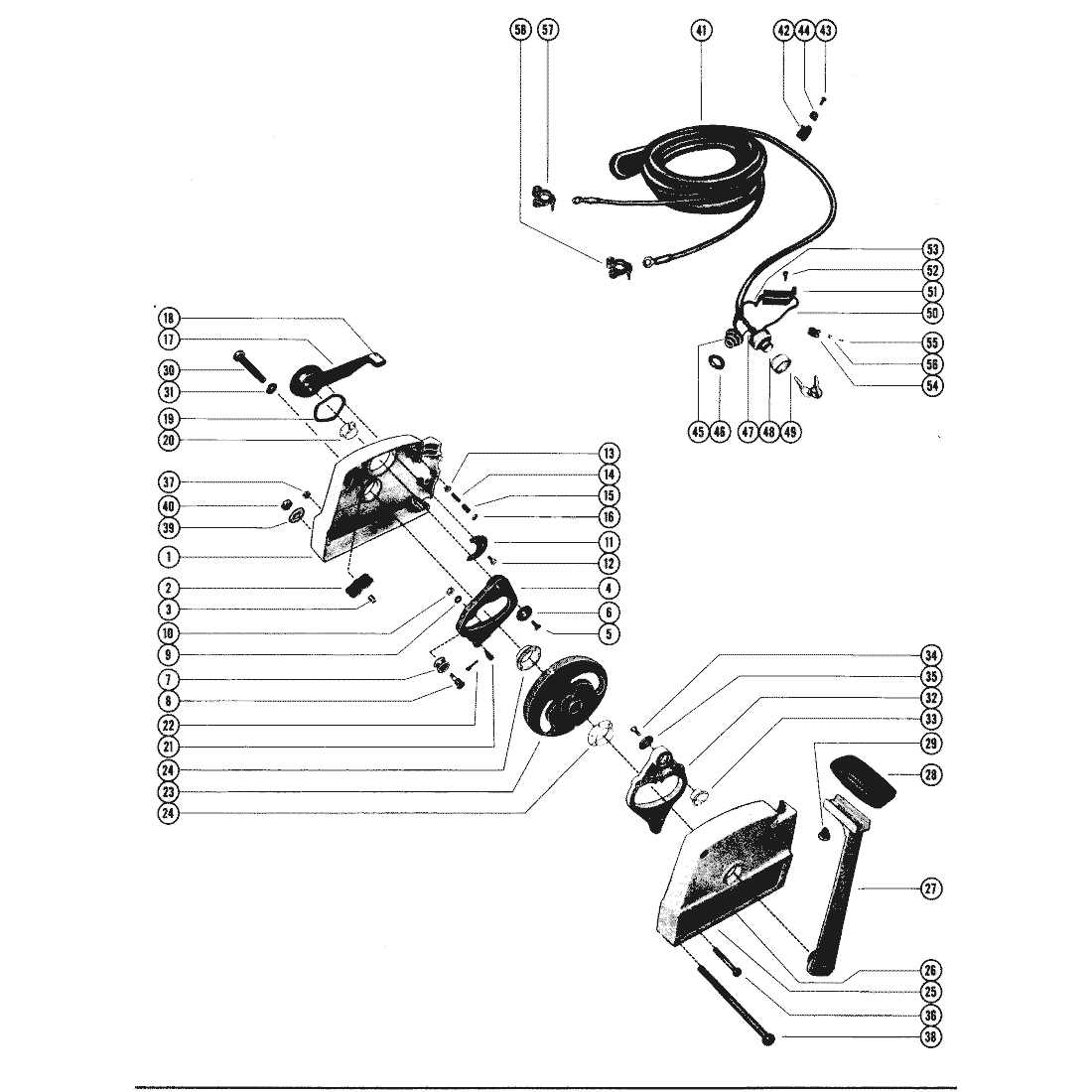

- 45957A15 ELECTRIC REMOTE CONTROL ASSEMBLY, COMPLETE 34743A10 SS $0.00 $0.00 1,,,
- 61490A15 ELECTRIC REMOTE CONTROL ASSEMBLY, COMPLETE 34742A10 SS $0.00 $0.00 ,1,,
- 45954A20 ELECTRIC REMOTE CONTROL ASSEMBLY, COMPLETE 34693A10 SS $0.00 $0.00 ,,1,
- 61490A15 ELECTRIC REMOTE CONTROL ASSEMBLY, COMPLETE 39444A10 SS $0.00 $0.00 ,,,1
1 34669 --HOUSING, REMOTE CONTROL (STARBOARD) NLA $0.00 $0.00 1,1,1,1
2 34683 --SPRING, DETENT- CONTROL HOUSING NLA $0.00 $0.00 2,2,2,2
3 34992 --ROLLER, DETENT SPRING NLA $0.00 $0.00 1,1,1,1
4 34671 --LEVER, THROTTLE - CONTROL HOUSING NLA $0.00 $0.00 1,1,1,1
5 85072 --SCREW, THROTTLE LEVER TO NEUTRAL WARM-UP LEVER 34676 SS $0.00 $0.00 1,1,1,1
6 34675 --WASHER, THROTTLE LEVER SCREW NLA $0.00 $0.00 1,1,1,1
7 34672 --CAM ROLLER, THROTTLE LEVER NLA $0.00 $0.00 1,1,1,1
8 34673 --PIN, CAM ROLLER TO THROTTLE LEVER NLA $0.00 $0.00 1,1,1,1
9 34680 --WASHER, CAM ROLLER PIN NLA $0.00 $0.00 1,1,1,1
10 8M0204718 --NUT, CAM ROLLER TO THROTTLE LEVER PIN 31953 SS $4.69 $4.59 1,1,1,1
11 34679 --PLATE, THRUST- CONTROL HOUSING NLA $0.00 $0.00 1,1,1,1
12 29762 --SCREW, THRUST PLATE TO NEUTRAL WARM-UP LEVER NLA $0.00 $0.00 3,3,3,3
13 20009 --PIN, DETENT - CONTROL HOUSING NEUTRAL WARM-UP LEVER NLA $2.64 $2.59 1,1,1,1
14 35210 --SPRING, DETENT PIN NLA $0.00 $0.00 1,1,1,1
15 35227 --SPRING, DETENT PIN TENSION NLA $0.00 $0.00 1,1,1,1
16 20011 --WELCH P1UG, DETENT PIN AND SPRING RETAINING ACT $5.09 $4.98 1,1,1,1
17 346702 --LEVER, NEUTRAL WARM-UP - CONTROL HOUSING 34670 SS $0.00 $0.00 1,1,1,1
18 31021 --TAPE, NEUTRAL WARM-UP LEVER NLA $0.00 $0.00 1,1,1,1
19 34678 --WASHER, WAVE - NEUTRAL WARM-UP LEVER NLA $0.00 $0.00 1,1,1,1
20 33589 --BUSHING, NYLON - NEUTRAL WARM-UP LEVER (5/8" I. D. ) NLA $0.00 $0.00 1,1,1,1
21 34692 --PIN, SHIFT AND THROTTLE LEVERS NLA $0.00 $0.00 2,2,2,2
22 29623 --COTTER PIN, SHIFT AND THROTTLE LEVER PINS NLA $0.00 $0.00 2,2,2,2
23 59369 --FACE CAM 34687 SS $0.00 $0.00 1,1,1,1
24 34677 --BUSHING, NYLON - FACE CAM (1" I.D.) NLA $0.00 $0.00 2,2,2,2
25 34681 --HOUSING, REMOTE CONTROL (PORT) NLA $0.00 $0.00 1,1,1,1
26 61412 --DECAL, CONTROL HOUSING (MERCONTROL) 34983 SS $0.00 $0.00 1,1,1,1
27 346892 --LEVER, CONTROL 34689 SS $0.00 $0.00 1,1,1,1
28 36005 --GRIP, CONTROL LEVER (BLACK) NLA $0.00 $0.00 1,1,1,1
29 37342 --SCREW, GRIP TO CONTROL LEVER (7/16") NLA $0.00 $0.00 2,2,2,2
30 68909 --SCREW, CONTROL LEVER TO FACE CAM (1 1/2") 34691 SS $0.00 $0.00 1,1,1,1
31 26992 --LOCKWASHER, CONTROL LEVER SCREW ACT $1.20 $1.18 1,1,1,1
32 34682 --LEVER, SHIFT- CONTROL HOUSING NLA $0.00 $0.00 1,1,1,1
33 33589 --BUSHING, NYLON - SHIFT LEVER (5/8" I. D. ) NLA $0.00 $0.00 1,1,1,1
34 85072 --SCREW, SHIFT LEVER TO CONTROL HOUSING 34676 SS $0.00 $0.00 1,1,1,1
35 34675 --WASHER, SHIFT LEVER SCREW NLA $0.00 $0.00 1,1,1,1
36 37941 --SCREW, REMOTE CONTROL HOUSING CLAMPING ACT $3.50 $3.44 4,4,4,4
37 30506 --NUT, REMOTE CONTROL HOUSING CLAMPING SCREW 34688 SS $3.19 $3.11 4,4,4,4
38 34900 --SCREW, REMOTE CONTROL TO BOAT (4 1/4") NLA $0.00 $0.00 2,2,2,2
39 69057 --WASHER, REMOTE CONTROL SCREW 20346 SS $1.80 $1.76 2,2,2,2
40 24652 --NUT, REMOTE CONTROL TO BOAT SCREW NLA $1.66 $1.62 2,2,2,2
41 NSS --WIRING HARNESS, EXTERNAL $0.00 $0.00 1,,,
41 NSS --WIRING HARNESS, EXTERNAL $0.00 $0.00 ,1,,
41 NSS --WIRING HARNESS, EXTERNAL $0.00 $0.00 ,,1,
41 NSS --WIRING HARNESS, EXTERNAL $0.00 $0.00 ,,,1
42 22690 --CLAMP, EXTERNAL WIRING HARNESS TO BOAT NLA $0.00 $0.00 1,1,1,1
43 22793 --SCREW, WOOD - WIRING HARNESS CTIP TO BOAT ACT $1.20 $1.18 1,1,1,1
44 8M0084613 --"D" WASHER, WIRING HARNESS CLIP SCREW 22789 SS $1.10 $1.08 1,1,1,1
45 29759 --SWITCH, CHOKE ACT $27.89 $27.33 1,1,1,1
46 30053 --COLLAR, CHOKE SWITCH TO CONTROL HOUSING NLA $0.00 $0.00 1,1,1,1
47 29648 --JUMPER WIRE, CHOKE SWITCH TO IGNITION SWITCH NLA $0.00 $0.00 1,1,1,
47 39180 --JUMPER WIRE, CHOKE SWITCH TO IGNITION SWITCH NLA $0.00 $0.00 ,,,1
48H 54213 --SWITCH, IGNITION (WITH KEYS) KEY PART #C-30431 34198 SS $0.00 $0.00 1,,,
48H 54211T --SWITH IGNITION (WITH KEYS) KEY PART #C 30431 30162 SS $0.00 $0.00 1,,1,
48H 54212A9 --SWITCH, IGNITION (WITH KEYS) KEY PART #C-30431 30163 SS $76.99 $74.06 ,,1,
49 68863 --BEZEL, IGNITION SWITCH TO CONTROL HOUSING 22628 SS $10.29 $10.09 1,1,1,1
50 30795 --JUMPER WIRE, SAFETY SWITCH TO IGNITION SWITCH NLA $0.00 $0.00 ,1,1,1
51 34621T --SWITCH, SAFETY 34621 SS $0.00 $0.00 ,1,1,1
52 30902 --SCREW, SAFETY SWITCH TO CONTROL HOUSING NLA $1.21 $1.18 ,,2,2
53 29902 --SLEEVE, SAFETY SWITCH LEADS NLA $0.00 $0.00 ,2,2,2
54 26685 --CLIP, INNER - WIRING HARNESS TO CONTROL HOUSING NLA $0.00 $0.00 1,1,1,1
55 26682 --SCREW, WIRING HARNESS CLIP TO CONTROL HOUSING (10-32) NLA $0.00 $0.00 1,1,1,
55 37260 --SCREW, WIRING HARNESS CLIP TO CONTROL HOUSING (10-16) NLA $0.00 $0.00 ,,,1
56 8M0084613 --"D" WASHER, WIRING HARNESS CLIP SCREW 22789 SS $1.10 $1.08 1,1,1,1
57 27913 --BATTERY TERMINAL, NEGATIVE (WITH BOLT AND NUT) NLA $0.00 $0.00 1,1,1,1
58 27912 --BATTERY TERMINAL, POSITIVE (WITH BOLT AND NUT) NLA $0.00 $0.00 1,1,1,1
