Modular Components(4000 GEN II Models)

Personal menu

Filters

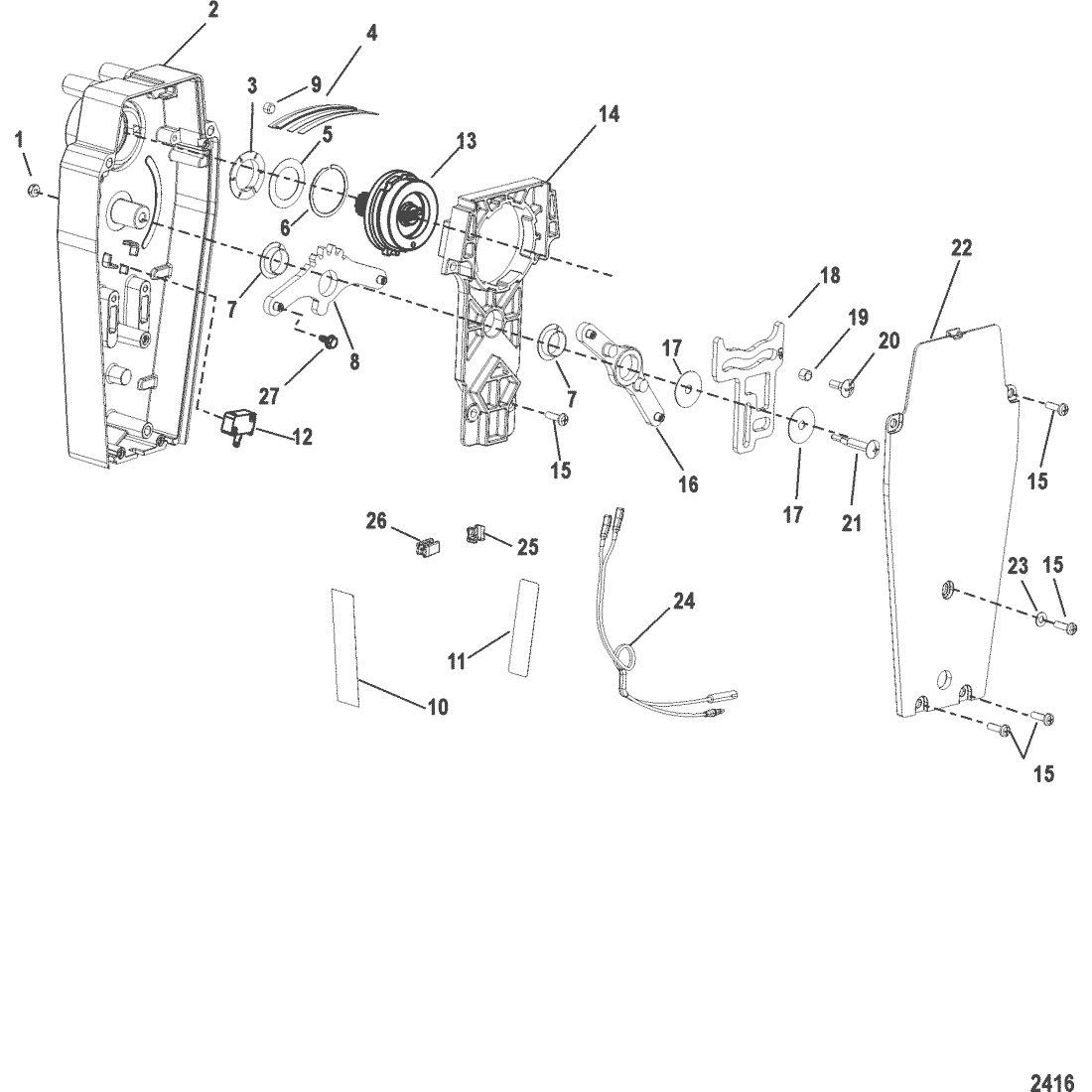

Ref #	Current Part Nbr	Description	Superceded From	Status	List Price	Online Price	Quan Used
-	889821T01	HOUSING ASSEMBLY, Panel Mount		ACT	$233.96	$220.32	1
1	NSS	--NOT SOLD SEPARATE, Nut, Friction Adjustment			$0.00	$0.00	1
2	NSS	--NOT SOLD SEPARATE, Housing, Control			$0.00	$0.00	1
3	856638	--BUSHING		ACT	$4.19	$4.12	1
4	NSS	--NOT SOLD SEPARATE, Spring, Detent			$0.00	$0.00	6
5	859724	--WASHER		ACT	$1.70	$1.66	1
6	NSS	--NOT SOLD SEPARATE, Ring, Retaining			$0.00	$0.00	1
7	74647	--NYLINER		ACT	$2.14	$2.11	2
8	NSS	--NOT SOLD SEPARATE, Shift Arm Assembly			$0.00	$0.00	1
9	NSS	--NOT SOLD SEPARATE, Roller, Detent			$0.00	$0.00	1
10	NSS	--NOT SOLD SEPARATE, Decal			$0.00	$0.00	1
11	NSS	--NOT SOLD SEPARATE, Decal			$0.00	$0.00	1
12	822198	--SWITCH, Neutral Start		ACT	$10.03	$9.86	1
13	NSS	--NOT SOLD SEPARATE, Shaft Assembly, Handle			$0.00	$0.00	1
14	NSS	--NOT SOLD SEPARATE, Support, Shaft			$0.00	$0.00	1
15	824831	--SCREW, (#10-32 x .625)		ACT	$1.15	$1.13	5
16	NSS	--NOT SOLD SEPARATE, Throttle Arm Assembly			$0.00	$0.00	1
17	NSS	--NOT SOLD SEPARATE, Washer			$0.00	$0.00	2
18	NSS	--NOT SOLD SEPARATE, Plate, 90 Degree			$0.00	$0.00	1
19	NSS	--NOT SOLD SEPARATE, Roller, Throttle Plate			$0.00	$0.00	1
20	NSS	--NOT SOLD SEPARATE, Bolt			$0.00	$0.00	1
21	NSS	--NOT SOLD SEPARATE, Bolt			$0.00	$0.00	1
22	NSS	--NOT SOLD SEPARATE, Plate, Back			$0.00	$0.00	1
23	24676	--WASHER, (.200 x .440 x .032)		ACT	$1.40	$1.37	1
24	883718A01	--CABLE ASSEMBLY, Stop Switch		ACT	$8.59	$8.42	1
25	891907002	SPACER, Cable Dual		ACT	$2.14	$2.11	AR
26	891907001	SPACER, Cable Single		ACT	$2.14	$2.11	AR
27	8M0085515	SCREW, (#8-32 x .375)	8222151	SS/ACT	$5.65	$5.55	2
