| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

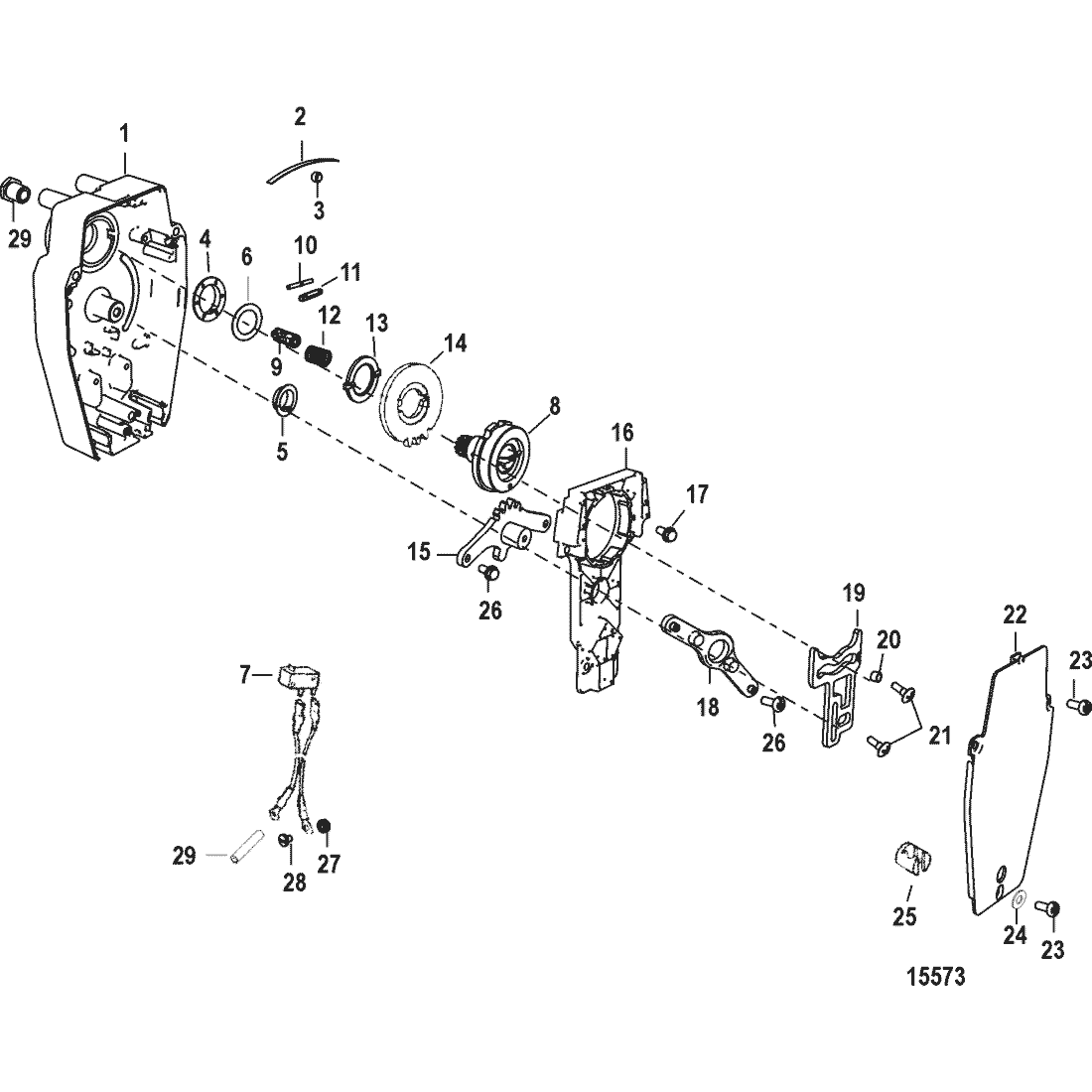

| - | 883699A14 | HOUSING ASSEMBLY | SS |
 |
$0.00 | $0.00 | 1 | ||
| - | 883699A14 | HOUSING ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| - | 883699A14 | HOUSING ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| - | 883700A12 | HOUSING ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| - | 883700A12 | HOUSING ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 1 | 856630T1 | --HOUSING, Control | SS |
|
$0.00 | $0.00 | 1 | ||
| 1 | 856631T1 | --HOUSING, Control | SS |
|
$0.00 | $0.00 | 1 | ||
| 2 | 16882 | --SPRING | SS |
|
$0.00 | $0.00 | 6 | ||
| 3 | 8229771 | --ROLLER | SS |
|
$0.00 | $0.00 | 1 | ||
| 4 | 856638 | --BUSHING | ACT | $4.19 | $4.12 | 1 | |||
| 5 | 74647 | --NYLINER | ACT | $2.14 | $2.11 | 1 | |||
| 6 | 859724 | --WASHER | ACT | $1.70 | $1.66 | 1 | |||
| 7 | 822198A1 | --SWITCH ASSEMBLY, Neutral Start | ACT |
|
$39.78 | $39.06 | 1 | ||
| 7 | 822198A2 | --SWITCH ASSEMBLY, Neutral Start | ACT |
|
$36.42 | $35.92 | 1 | ||
| 7 | 822198A3 | --SWITCH ASSEMBLY, Neutral Start | ACT |
|
$32.06 | $31.61 | 1 | ||
| 8 | 856632A12 | --SHAFT ASSEMBLY, Handle | SS |
|
$0.00 | $0.00 | 1 | ||
| 9 | 8566361 | ----SHAFT, Throttle Only | ACT | $1.91 | $1.89 | 1 | |||
| 10 | 8566341 | ----PIN, Lock, Round | ACT | $4.00 | $3.92 | 1 | |||
| 11 | 859641 | ----PIN, Drive, Square | 8566351 | SS/ACT |
|
$5.65 | $5.55 | 1 | |
| 12 | 822203T | ----SPRING | 822203 | SS/ACT |
|
$8.73 | $8.56 | 1 | |
| 13 | 8566371 | ----LOCK, Throttle Only | SS |
|
$0.00 | $0.00 | 1 | ||
| 14 | 8566331 | ----GEAR, Shift | ACT | $15.25 | $14.98 | 1 | |||
| 15 | 822196T1 | --ARM ASSEMBLY, Shift | SS |
|
$0.00 | $0.00 | 1 | ||
| 16 | 822978A2 | --SUPPORT ASSEMBLY, Shaft | SS |
|
$0.00 | $0.00 | 1 | ||
| 17 | 824831 | --SCREW, (#10-32 x .625) | ACT | $1.15 | $1.13 | 4 | |||
| 18 | 822206A3 | --ARM ASSEMBLY, Throttle | SS |
|
$0.00 | $0.00 | 1 | ||
| 19 | 8222073 | --PLATE, Throttle | ACT | $14.16 | $13.90 | 1 | |||
| 20 | 8229793 | --ROLLER, Throttle Plate | SS |
|
$0.00 | $0.00 | 1 | ||
| 21 | 8222092 | --SHOULDER BOLT, Special | SS |
|
$0.00 | $0.00 | 2 | ||
| 22 | 8222101 | --BACK PLATE | SS |
|
$0.00 | $0.00 | 1 | ||
| 23 | 824831 | --SCREW, (#10-32 x .625) | ACT | $1.15 | $1.13 | 3 | |||
| 24 | 24676 | --WASHER, (.200 x .440 x .032) | ACT | $1.40 | $1.37 | 1 | |||
| 25 | 85879 | GROMMET | ACT | $2.94 | $2.88 | 2 | |||
| 26 | 8M0085515 | SCREW, (#8-32 x .375) | 8222151 | SS/ACT |
|
$5.65 | $5.55 | 2 | |
| 27 | 27164 | NUT AND LOCKWASHER, (#10-32) | ACT | $1.50 | $1.47 | 2 | |||
| 28 | 24231 | SCREW, (#10-32 x .250) | ACT | $1.10 | $1.08 | 2 | |||
| 29 | 623594 | INSULATOR, (2.00 Inch) | ACT | $2.60 | $2.54 | 2 | |||
| 30 | 8222131 | BOLT, Locking, Special | ACT | $5.65 | $5.55 | 1 |
