Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

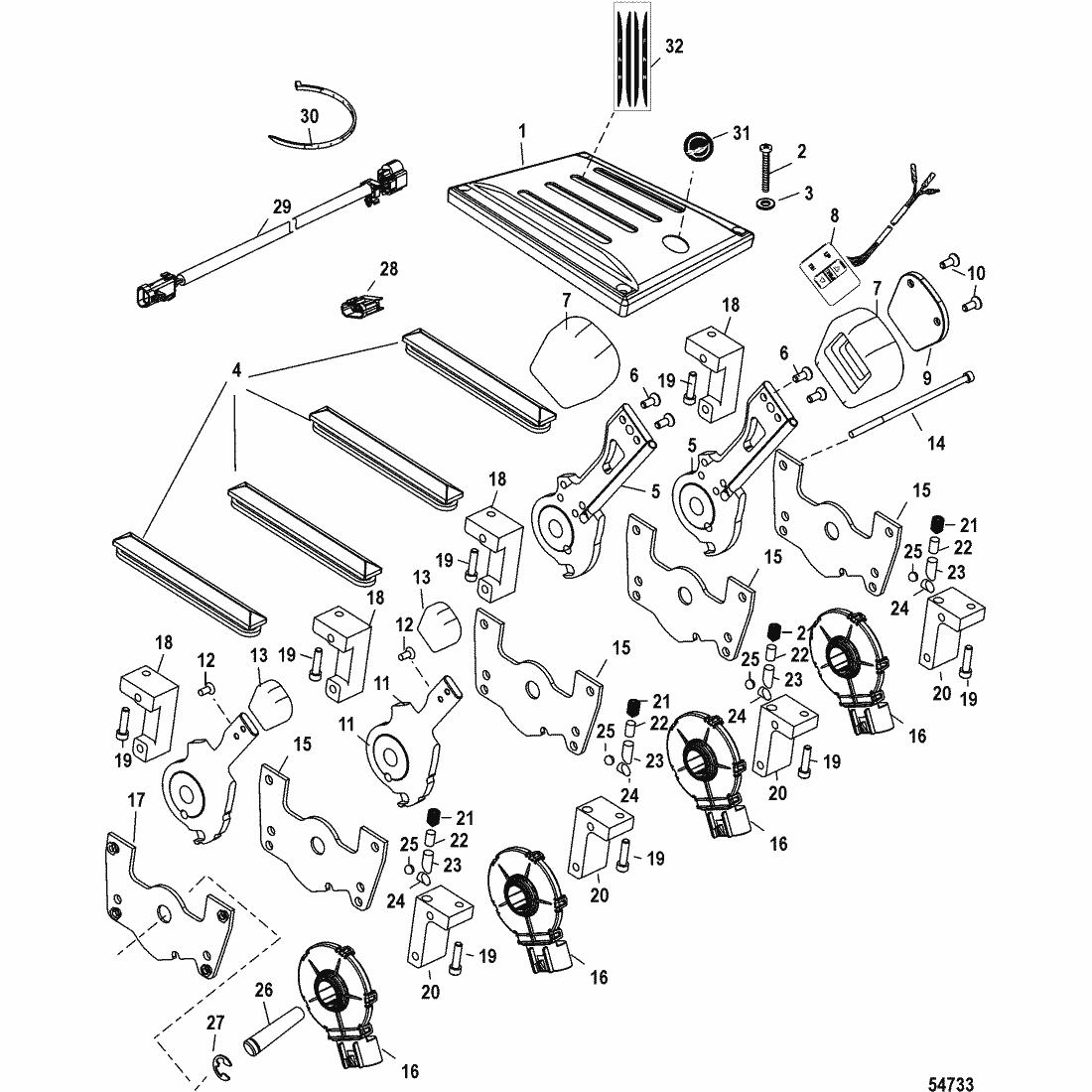

- 8M0030499 ZERO EFFORT CONTROL-DTS, 2S (Black Knob) - 2T (Red Knob) (Stbd Mount) ACT $3,234.00 $2,910.61 1
- 8M0085617 ZERO EFFORT CONTROL-DTS, 2S - 2T (Clear Knob) (Stbd Mount) ACT $3,234.00 $2,910.61 1
- 8M0085491 ZERO EFFORT CONTROL-DTS, 1S (Black Knob) - 2T (Red Knob) 1S (Black Knob) (Stbd Mount) ACT $3,234.00 $2,910.61 1
- 8M0085619 ZERO EFFORT CONTROL-DTS, 1S - 2T -1S (Clear Knob) (Stbd Mount) ACT $3,234.00 $2,910.61 1
- 8M0085804 ZERO EFFORT CONTROL-DTS, 2T (Red Knob) -2S (Black Knob) (Stbd Mount) ACT $3,234.00 $2,910.61 1
- 8M0085806 ZERO EFFORT CONTROL-DTS, 2T - 2S (Clear Knob) (Stbd Mount) ACT $3,234.00 $2,910.61 1
- 8M0092088 ZERO EFFORT CONTROL-DTS, 1S (Black Knob) 2T (Red Knob) -1S (Black Knob) (Port Mount) ACT $3,234.00 $2,910.61 1
- 8M0092091 ZERO EFFORT CONTROL-DTS, 1S - 2T-1S (Clear Knob) (Port Mount) ACT $3,234.00 $2,910.61 1
1 8M0075333 --COVER, Top, 4 Lever ACT $514.50 $470.41 1
2 845522 --SCREW, (#8 x 1.250) ACT $0.47 $0.47 4
3 845523 --WASHER, Nylon ACT $0.31 $0.31 4
4 8M0047219 --BOOT ACT $8.89 $8.77 4
5 8M0075729 --LEVER, Throttle ACT $514.50 $470.41 AR
5 8M0075730 --LEVER, Throttle ACT $514.50 $470.41 AR
6 8M0045962 --SCREW, 10-32X.50 ACT $0.10 $0.10 2
6 8M0045967 --SCREW, 10-32X.88 ACT $0.20 $0.20 2
7 8M0084186 --KNOB, Throttle Right - Red ACT $205.80 $191.11 AR
7 8M0084187 --KNOB, Throttle Left - Red, With Switch Hole ACT $294.00 $273.01 AR
7 8M0031761 --KNOB, Throttle Right - Clear ACT $294.00 $273.01 AR
7 8M0030631 --KNOB, Throttle Left - Clear, With Switch Hole ACT $294.00 $273.01 AR
8 8M0129214 --KEYPAD ASSEMBLY 8M0047740 SS $97.60 $93.27 1
9 8M0046503 --COVER, Knob - Throttle ACT $102.90 $95.56 1
10 8M0045962 --SCREW, 10-32X.50 ACT $0.10 $0.10 2
11 8M0075753 --LEVER, Shift ACT $514.50 $470.41 AR
12 822037 --SCREW ACT $0.96 $0.96 4
13 8M0093370 --KNOB, Shift - Black 8M0075332 SS $191.10 $177.46 AR
13 8M0093371 --KNOB, Shift - Clear 8M0031621 SS $191.10 $177.46 AR
14 8M0084476 --SCREW, (#10-32 X 2.50) ACT $3.16 $3.12 4
15 8M0075328 --PLATE, Center, Center ACT $29.40 $28.99 4
16 877736 --SENSOR, Throttle/Shift ACT $170.47 $153.71 3
17 8M0093362 --END PLATE ASSEMBLY ACT $102.90 $95.56 1
18 8M0075336 --SPACER, Plate ACT $80.85 $77.39 4
19 842127 --SCREW, (#10-32 x .750) Stainless Steel ACT $0.57 $0.57 8
20 8M0075334 --SPACER, Plate w/Detent ACT $102.90 $95.56 4
21 8M0075339 --SET SCREW, (.312 -24 X .50) ACT $10.29 $10.15 2
22 844657 --SPRING ACT $5.58 $5.51 2
23 8M0075335 --RAMP ACT $8.82 $8.70 2
24 8M0075343 --PAD, Friction ACT $14.70 $14.50 AR
25 842651 --BALL, (.250) ACT $0.77 $0.77 AR
26 8M0075331 --SHAFT, 4 Lever ACT $66.15 $63.32 1
27 87843 --E RING ACT $1.40 $1.37 1
28 877613A1 --CONNECTOR ASSEMBLY, 8 Pin ACT $13.59 $13.27 1
29 891963A01 --HARNESS ASSEMBLY, Lever ACT $30.85 $30.31 2
33 56762 --TIE STRAP, (4.00 Inches) ACT $0.50 $0.49 2
33 847509 --TIE STRAP, (7.50 Inches) ACT $1.59 $1.57 1
33 8M0029338 --TIE STRAP, (10.75 Inches) ACT $0.00 $0.00 1
31 8M0090016 --DECAL, M-Icon Mercury Racing (19 mm) ACT $51.45 $49.25 1
32 8M0087338 --DECAL, Shift - F/ N/R ACT $51.45 $49.25 1
