- REFER TO MODULAR COMPONENTS
| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

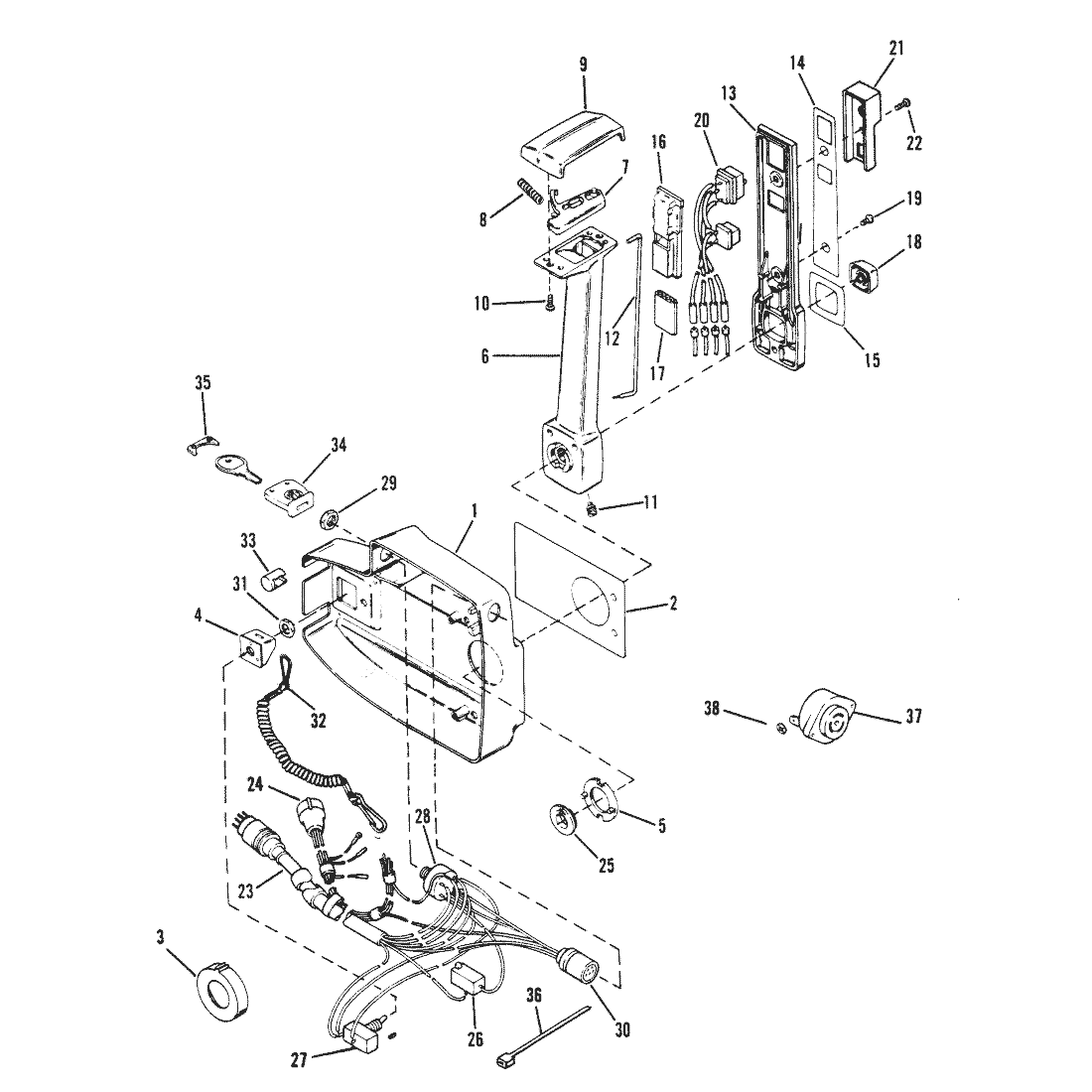

| - | 13798A15 | REMOTE CONTROL ASSEMBLY | SS |
 |
$0.00 | $0.00 | - | ||
| - | 16906A15 | REMOTE CONTROL ASSEMBLY | SS |
|
$0.00 | $0.00 | - | ||
| 1 | 92984A4 | --COVER | SS |
|
$0.00 | $0.00 | - | ||
| 1 | 13786A1 | --COVER | SS |
|
$0.00 | $0.00 | - | ||
| 1 | 13787A2 | --COVER | SS |
|
$0.00 | $0.00 | - | ||
| 2 | 135306 | ----DECAL (QUICKSILVER) | SS |
|
$0.00 | $0.00 | - | ||
| 3 | 86005 | --RETAINER | ACT |
|
$2.77 | $2.72 | - | ||
| 4 | 94208 | --COVER | SS |
|
$0.00 | $0.00 | - | ||
| 5 | 94181 | LOCK RING | SS |
|
$0.00 | $0.00 | - | ||
| 6 | 93863A3 | --CONTROL HANDLE | SS |
|
$0.00 | $0.00 | - | ||
| 6 | 95070A1 | --CONTROL HANDLE | SS |
|
$0.00 | $0.00 | - | ||
| 7 | 85898 | --TRIGGER (NO CASTING #) | ACT |
|
$9.06 | $8.89 | - | ||
| 7 | 934871 | --TRIGGER (CASTING #93487) | ACT |
|
$5.84 | $5.73 | - | ||
| 8 | 85891 | --SPRING | ACT |
|
$3.36 | $3.31 | - | ||
| 9 | 85894 | --CAP | SS |
|
$0.00 | $0.00 | - | ||
| 10 | 95700 | --SCREW (1/2") | 70332 | SS/ACT |
|
$6.19 | $6.08 | - | |
| 11 | 85797 | --SET SCREW (1/4-20 THREAD) | SS |
|
$0.00 | $0.00 | - | ||
| 11 | 91051 | --SET SCREW (5/16-18 THREAD) | ACT |
|
$3.29 | $3.22 | - | ||
| 12 | 85895 | --ROD (ONE PIECE) | SS |
|
$0.00 | $0.00 | - | ||
| 12 | 93865T | --ROD (TWO PIECES) (W/PIN #17-93864) | SS |
|
$0.00 | $0.00 | - | ||
| 13 | 92982A7 | --COVER | SS |
|
$0.00 | $0.00 | - | ||
| 13 | 92982A6 | --COVER | SS |
|
$0.00 | $0.00 | - | ||
| 14 | 1353014 | ----DECAL | SS |
|
$0.00 | $0.00 | - | ||
| 15 | 135303 | ----DECAL | SS |
|
$0.00 | $0.00 | - | ||
| 16 | 86041 | --RETAINER (TRIM BUTTONS) | SS |
|
$0.00 | $0.00 | - | ||
| 16 | 89987T | --RETAINER (TROGGLE SWITCH) | 89987 | SS/ACT |
|
$5.53 | $5.44 | - | |
| 17 | 88474 | --RETAINER | SS |
|
$0.00 | $0.00 | - | ||
| 18 | 85896 | --BUTTON | SS |
|
$0.00 | $0.00 | - | ||
| 19 | 58376 | --SCREW (3/8") | ACT |
|
$1.15 | $1.13 | - | ||
| 20 | 88790A3 | --SWITCH ASSEMBLY | SS |
|
$0.00 | $0.00 | - | ||
| 20 | 88790T02 | --SWITCH ASSEMBLY | SS |
|
$0.00 | $0.00 | - | ||
| 21 | 88873 | --RETAINER (NOT USED WITH TOGGLE SWITCH) | SS |
|
$0.00 | $0.00 | - | ||
| 22 | 88904 | --SCREW (5/8") | ACT |
|
$1.70 | $1.67 | - | ||
| 23 | 86353A1 | --WIRING HARNESS | SS |
|
$0.00 | $0.00 | - | ||
| 23 | 13864A1 | --WIRING HARNESS | SS |
|
$0.00 | $0.00 | - | ||
| 23 | 14074A1 | --WIRING HARNESS | SS |
|
$0.00 | $0.00 | - | ||
| 23 | 14738A4 | --WIRING HARNESS | SS |
|
$0.00 | $0.00 | - | ||
| 23 | 86353A1 | WIRING HARNESS | SS |
|
$0.00 | $0.00 | - | ||
| 24 | 86228A15 | ----HARNESS ASSEMBLY | SS |
|
$0.00 | $0.00 | - | ||
| 24 | 14739A1 | ----HARNESS ASSEMBLY | SS |
|
$0.00 | $0.00 | - | ||
| 24 | 86228A15 | ----HARNESS ASSEMBLY | SS |
|
$0.00 | $0.00 | - | ||
| 25 | 85872 | ------BUSHING | ACT |
|
$2.25 | $2.20 | - | ||
| 26 | 817724 | ----MICRO SWITCH | 86320 | SS/ACT |
|
$20.90 | $20.53 | - | |
| 27 | 91941 | ----TOGGLE SWITCH | SS |
|
$0.00 | $0.00 | - | ||
| 28 | 88107A5 | ----IGN. SWITCH | 88107 | SS/ACT |
|
$74.17 | $71.34 | - | |
| 29 | 879755 | ------NUT | 93543 | SS/ACT |
|
$5.90 | $5.76 | - | |
| 30 | 86319 | ----INSULATOR, WIRING HARNESS | SS |
|
$0.00 | $0.00 | - | ||
| 31 | 27052 | --NUT | SS |
|
$0.00 | $0.00 | - | ||
| 32 | 15920Q54 | --LANYARD | SS |
|
$0.00 | $0.00 | - | ||
| 33 | 85879 | --GROMMET | ACT |
|
$2.94 | $2.88 | - | ||
| 34 | 90468A1 | --COVER | ACT |
|
$4.54 | $4.46 | - | ||
| 35 | 90468A1 | --RETAINER | ACT |
|
$4.54 | $4.46 | - | ||
| 36 | 816311T | STA-STRAP | 816311 | SS/ACT |
|
$0.60 | $0.59 | - | |
| 37 | 16564A1 | --ALARM | ACT |
|
$18.42 | $18.09 | - | ||
| 38 | 28903 | ----SPEEDNUT | SS |
|
$0.00 | $0.00 | - |
