Ref # Current
Part Nbr
Description Superceded
From
Status Notes List
Price
Online
Price
Quan
Used
My
Order
Quan

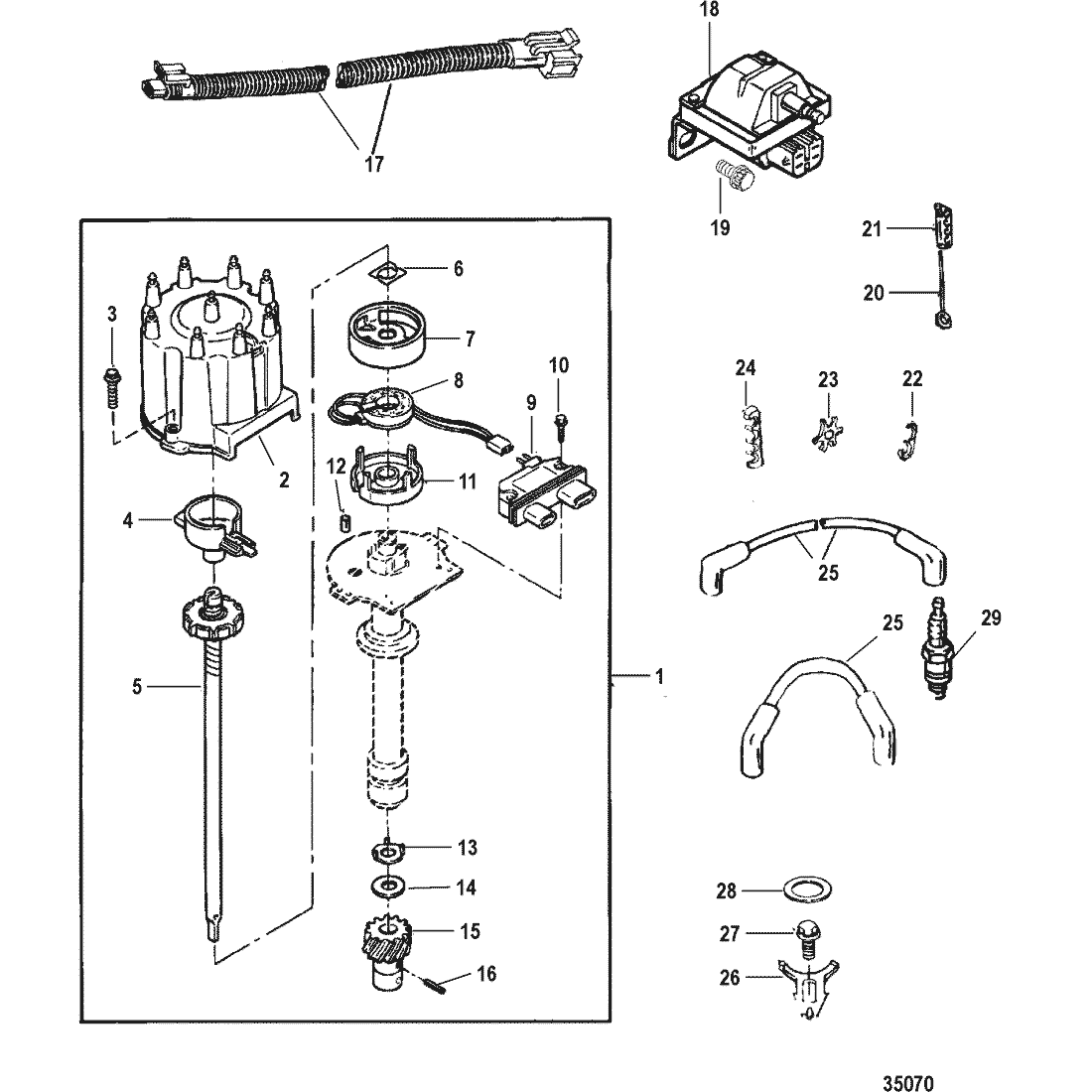

1 805222A1 DISTRIBUTOR ASSEMBLY ACT $984.29 $902.32 1
2 808483T3 --CAP, Distributor ACT $37.00 $36.34 1
3 10-808491 --SCREW NLA $0.00 $0.00 2
4 8M6001253 --ROTOR 8084841 SS/ACT $17.70 $17.26 1
5 808485T --SHAFT ASSEMBLY, Main NLA $0.00 $0.00 1
6 808487 --RETAINER NLA $0.00 $0.00 1
7 --NOT SOLD SEPARATE, SHIELD $0.00 $0.00 1
8 811639T --COIL ACT $35.58 $34.94 1
9 8M0123099 --MODULE 811637T SS/ACT $0.00 $0.00 1
10 10-811638 --SCREW NLA $0.00 $0.00 2
11 811641 --POLE PIECE ACT $36.33 $35.68 1
12 17-808488 --PIN NLA $0.00 $0.00 1
13 12-46350 --WASHER NLA $0.00 $0.00 1
14 12-808489 --WASHER NLA $0.00 $0.00 1
15 43-808490 --GEAR NLA $0.00 $0.00 1
16 17-34109 --PIN NLA $0.00 $0.00 1
17 84-817376T01 HARNESS ASSEMBLY, Distributor Module to Ignition Coil 817376T SS/ACT $76.08 $73.18 1
18 898253T27 COIL 817378 SS/ACT $169.92 $156.60 1
19 10-805189 SCREW, (.375-16 x .750) NLA $0.00 $0.00 2
20 16-90096A1 STUD ASSEMBLY, (#10-32 x Special) ACT $12.80 $12.49 2
21 54-72821 --RETAINER ACT $4.50 $4.39 2
22 54676 RETAINER, Two Wire ACT $4.20 $4.10 2
23 32783 RETAINER, Three Wire ACT $3.30 $3.22 2
24 32784 RETAINER, Four Wire ACT $7.20 $7.03 2
25 84-816608Q68 CABLE KIT, Ignition (SPARK PLUGS & COIL) 816608A68 SS/ACT $85.66 $82.40 1
26 52185 CLAMP ACT $0.00 $0.00 1
27 10-805559 SCREW, (.375-16 x .875) Stainless Steel ACT $8.70 $8.49 1
28 27-344863 GASKET ACT $2.20 $2.15 1
29 33-816336Q SPARK PLUG 816336 SS/ACT $4.41 $4.32 8
- 27-802567A98 GASKET SET, Engine Overhaul ACT $1,014.00 $908.19 1
