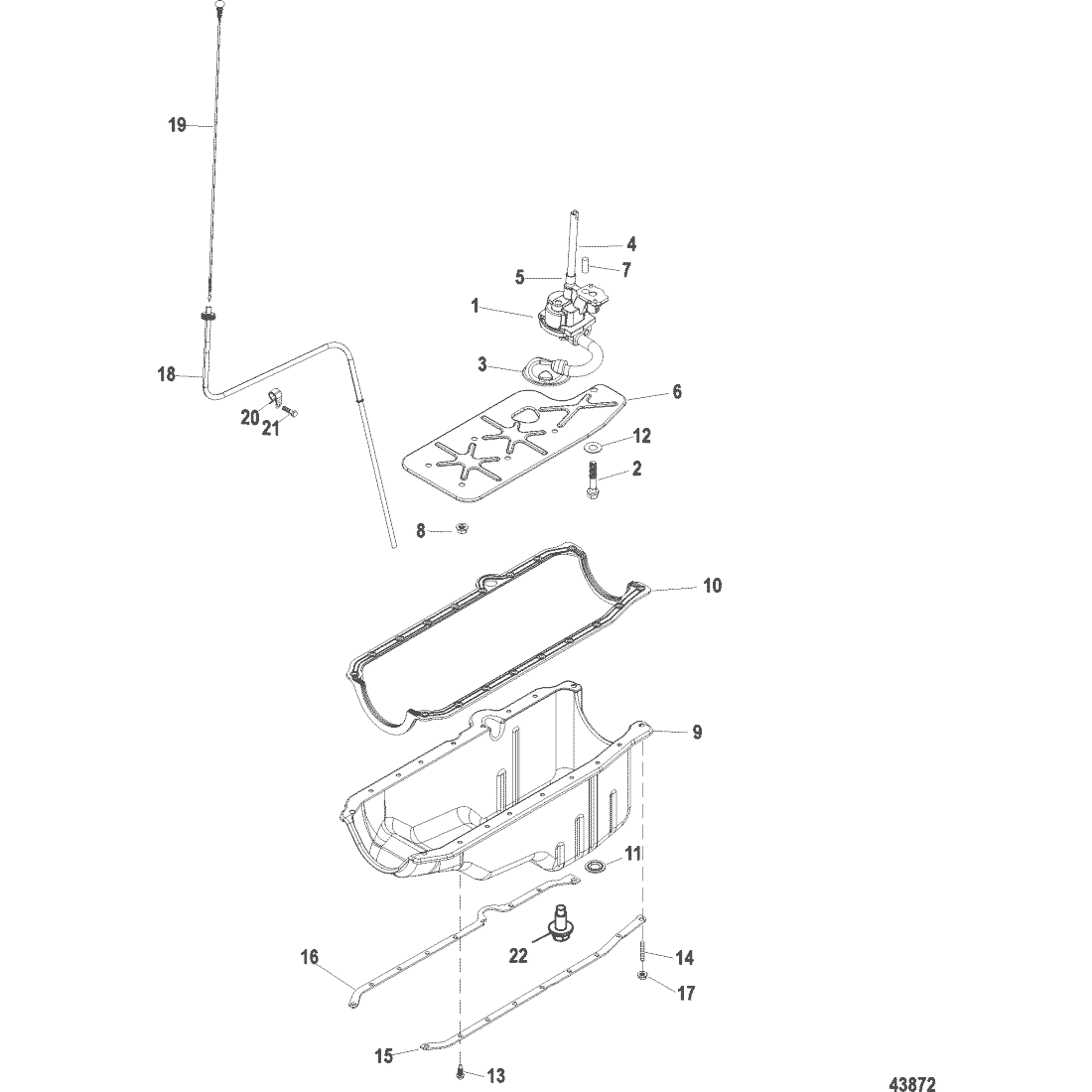

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 809907002 | PUMP ASSEMBLY, Oil | ACT | $469.49 | $448.71 | 1 | |||
| 2 | 17346 | SCREW, Oil Pump | ACT | $18.59 | $18.14 | 1 | |||
| 3 | 809909 | SCREEN, Oil Pump Pick Up | ACT | $41.49 | $40.74 | 1 | |||
| 4 | 36184 | SHAFT | ACT | $27.89 | $27.33 | 1 | |||
| 5 | 36183 | RETAINER | ACT | $5.49 | $5.37 | 1 | |||
| 6 | 986021 | DEFLECTOR, Oil | ACT | $29.69 | $29.13 | 1 | |||
| 7 | 843378 | PIN, Dowel, Alignment, Oil Pump | ACT | $15.99 | $15.61 | 1 | |||
| 8 | 845602 | NUT, (.375-16) | ACT | $7.09 | $6.93 | 5 | |||
| 9 | 8M0150300 | PAN, Oil | 809910 | SS |
|
$458.99 | $438.60 | 1 | |
| 10 | 8M0150304 | GASKET, Oil Pan | 138651 | SS |
|
$196.99 | $185.36 | 1 | |
| 11 | 8M0077608 | GASKET, Drain Screw | 49955 | SS |
|
$17.89 | $17.46 | 1 | |
| 12 | 27339 | WASHER | ACT | $4.69 | $4.59 | 1 | |||
| 13 | 14070 | SCREW, (.250-20 x .625) | ACT | $13.19 | $12.88 | 14 | |||
| 14 | 11989 | STUD, (.312-18 x 1.6718) | ACT | $16.09 | $15.70 | 2 | |||
| 15 | 14257 | REINFORCEMENT, Port | ACT | $36.49 | $35.68 | 1 | |||
| 16 | 14256 | REINFORCEMENT, Starboard | ACT | $34.49 | $33.80 | 1 | |||
| 17 | 8M0148822 | NUT, (.312-18) | 11971 | SS |
|
$17.09 | $16.68 | 4 | |
| 18 | 862704A4 | TUBE, Dipstick | ACT |
|
$124.99 | $117.48 | 1 | ||
| 18 | 8M0058920 | TUBE ASSEMBLY, Dipstick | ACT |
|
$202.99 | $190.93 | 2 | ||
| 19 | 861942T9 | DIPSTICK, Oil Level | ACT |
|
$74.99 | $71.98 | 1 | ||
| 19 | 8M0058919 | DIPSTICK, Oil Level | ACT |
|
$17.29 | $16.94 | 1 | ||
| 20 | 805625 | CLIP, Dipstick Tube | ACT | $18.59 | $18.25 | 1 | |||
| 21 | 8M0040582 | SCREW | 35366 | SS |
|
$18.59 | $18.14 | 1 | |
| 22 | 809911001 | SCREW KIT, Drain | ACT | $19.49 | $19.13 | 1 | |||
| - | 861246A05 | GASKET SET, Engine Overhaul | ACT | $826.99 | $777.78 | 1 |
