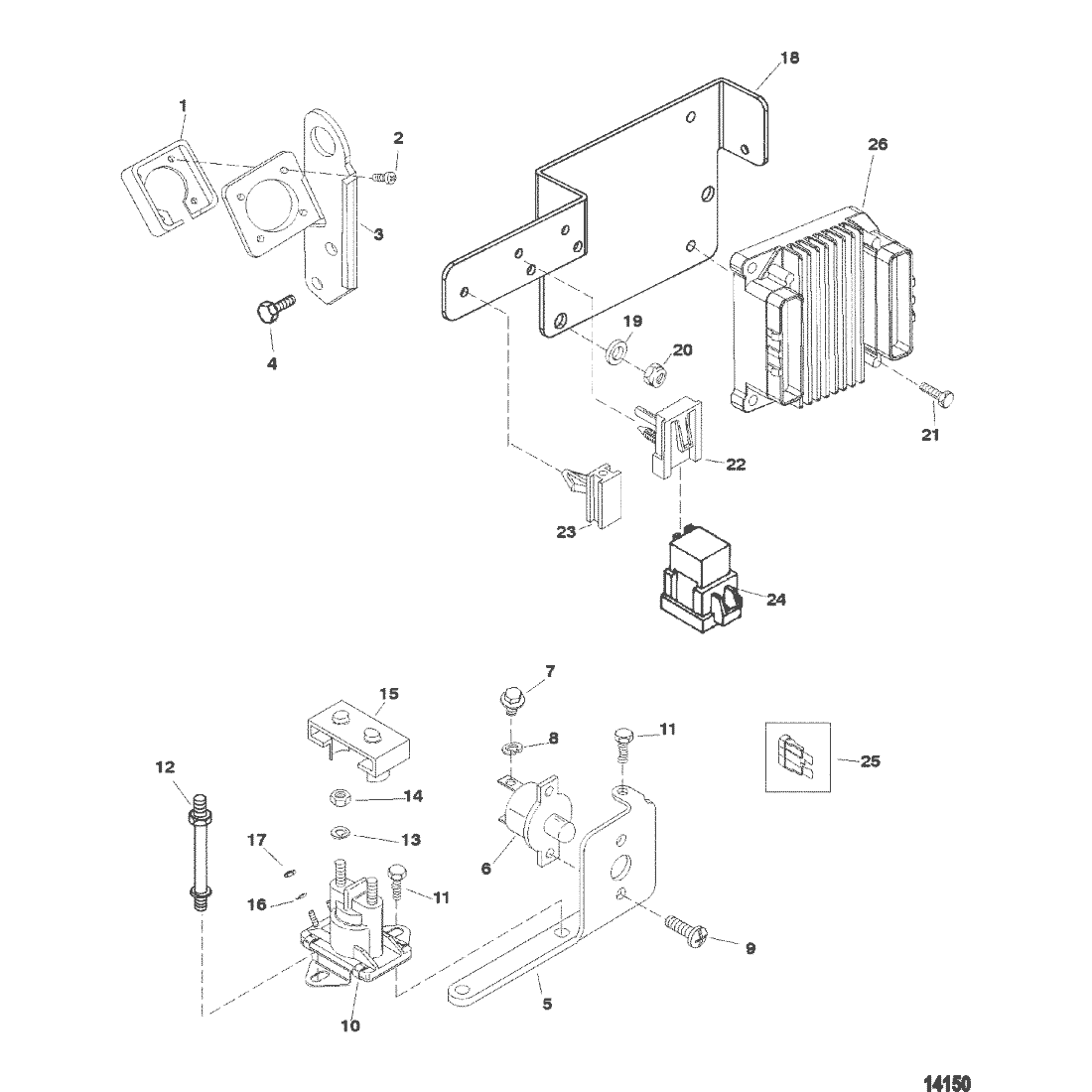

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 26079A2 | PLATE KIT, Wire Harness Mount | ACT |
|
$29.99 | $29.38 | 1 | ||
| 2 | 15001 | --SCREW, (#8-16 x .875) | ACT | $3.29 | $3.21 | 4 | |||
| 3 | 865480T | BRACKET, Harness Mounting/Lifting Eye | 807453T | NLA |
|
$62.49 | $59.88 | 1 | |
| 4 | 98261 | SCREW, (.375-16 x .750) | ACT | $1.20 | $1.18 | 2 | |||
| 5 | 899719T01 | BRACKET, Electrical | 805368T | SS |
|
$44.99 | $44.04 | 1 | |
| 6 | 11178A01 | BREAKER, Circuit - 50 Ampere | 806950 | NLA |
|
$121.49 | $114.19 | 1 | |
| 7 | 68513 | --SCREW, (#10-32 x .375) Stainless Steel | ACT | $1.40 | $1.37 | 2 | |||
| 8 | 26996 | --LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 2 | |||
| 9 | 57583T | SCREW, (#8-32 x .375) | 57583 | SS |
|
$1.40 | $1.37 | 2 | |
| 10 | 8M0185622 | SOLENOID | 96158T | SS |
|
$41.99 | $41.07 | 1 | |
| 11 | 805564 | SCREW, (.250-20 x .750) | ACT | $1.70 | $1.66 | 2 | |||
| 12 | 805459 | STUD, Mercathode Mounting | ACT | $11.09 | $10.83 | 1 | |||
| 13 | 26992 | LOCKWASHER, (.250) Stainless Steel | ACT | $1.20 | $1.18 | 2 | |||
| 14 | 94330 | NUT, (.250-20) Brass | ACT | $1.70 | $1.66 | 2 | |||
| 15 | 97861 | INSULATOR | ACT | $5.19 | $5.08 | 1 | |||
| 16 | 26995 | LOCKWASHER, (#8) Stainless Steel | ACT | $1.10 | $1.08 | 2 | |||
| 17 | 26419 | NUT, (#8-32) Brass | ACT | $1.70 | $1.66 | 2 | |||
| 18 | 861714T | BRACKET, ECU Mounting | ACT | $60.99 | $58.51 | 1 | |||
| 19 | 35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | ACT | $1.80 | $1.76 | 3 | |||
| 20 | 64015 | NUT, (.250-20) | ACT | $2.79 | $2.72 | 3 | |||
| 21 | 28636 | SCREW, (.250-20 x .750) | ACT | $1.80 | $1.76 | 3 | |||
| 22 | 865205 | CLIP | 804351 | SS |
|
$2.99 | $2.92 | 2 | |
| 23 | 804352 | CLIP | ACT | $1.80 | $1.76 | 1 | |||
| 24 | 8M0210756 | RELAY | 807057T | SS |
|
$44.99 | $44.03 | 2 | |
| 25 | 862647 | FUSE, Micro - Red - 10 Ampere | 804641 | SS |
|
$4.49 | $4.39 | 2 | |
| 25 | 804642 | FUSE, Micro - 15 Ampere | NLA |
|
$0.00 | $0.00 | 1 | ||
| 26 | 892799A01 | ECM, Engine Control Module | 861925T3 | NLA |
|
$0.00 | $0.00 | 1 | |
| 26 | 892798A01 | ECM, Engine Control Module | 861926T3 | NLA |
|
$0.00 | $0.00 | 1 |
