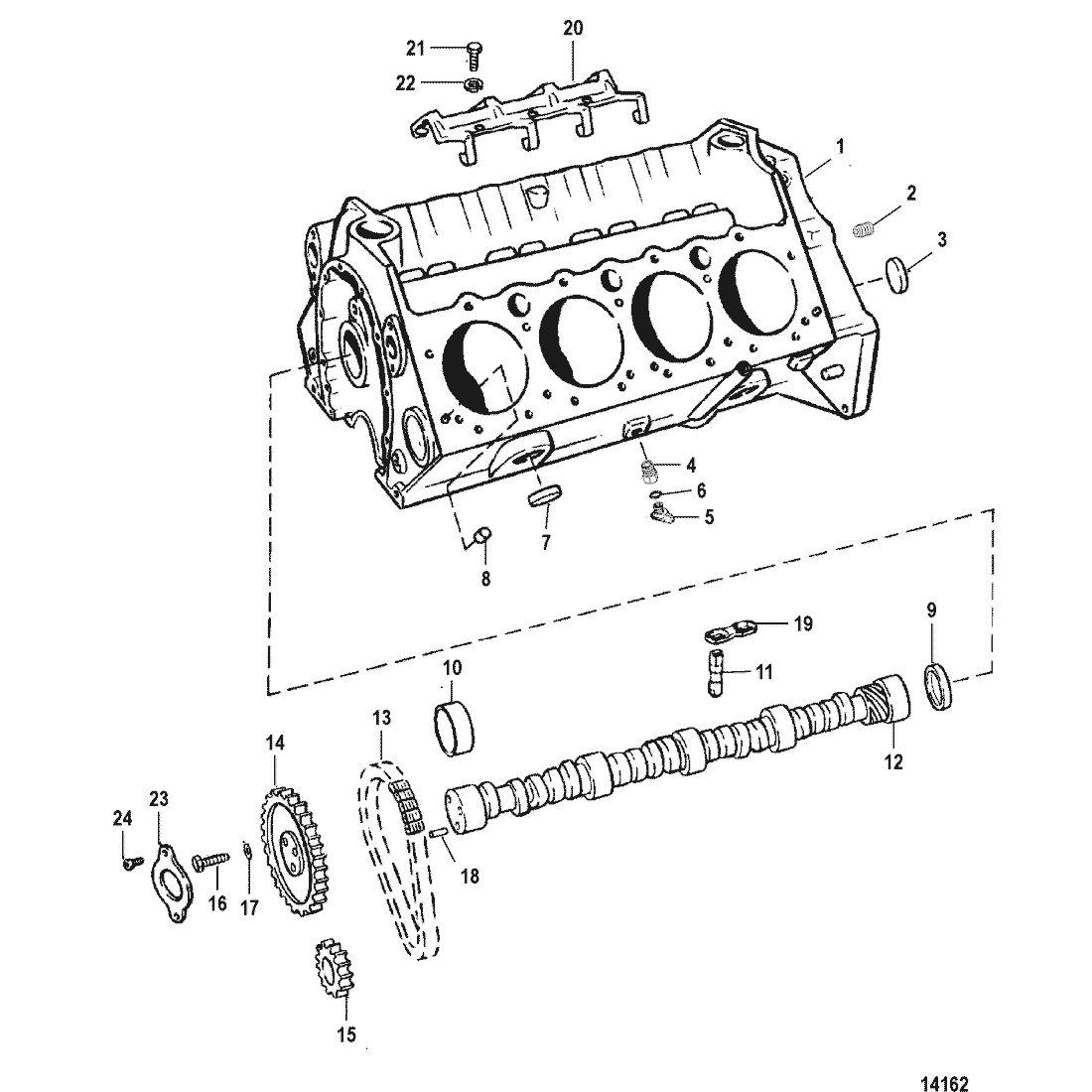

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | NSS | NOT SOLD SEPARATE, Cylinder Block Assembly |
 |
$0.00 | $0.00 | 1 | |||
| 1 | NSS | NOT SOLD SEPARATE, Cylinder Block Assembly |
|
$0.00 | $0.00 | 1 | |||
| 2 | 8M0204652 | --PLUG, (.250-18 x .41) | 48340 | SS/ACT |
|
$6.50 | $6.34 | 3 | |
| 3 | 816565 | --PLUG, Cup (.468) | ACT |
|
$10.30 | $10.05 | 5 | ||
| 4 | 8M0214973 | --BUSHING | ACT |
|
$12.30 | $12.00 | 1-2 | ||
| 5 | 8M0119211 | --PLUG KIT, (.500-13) Royal Blue | 806608A1 | SS/ACT |
|
$9.40 | $9.17 | 2 | |
| 6 | 32509 | ----O-RING, (.489 x .070) | ACT |
|
$2.30 | $2.25 | 2 | ||
| 7 | 34270 | --EXPANSION PLUG, (1.625) | ACT |
|
$9.40 | $9.17 | 8 | ||
| 8 | 35465 | --PIN, Dowel (.312), Dowel (.3125 Inch) | ACT |
|
$6.70 | $6.54 | 4 | ||
| 9 | 72640 | --PLUG, Rear Camshaft | ACT |
|
$13.70 | $13.36 | 1 | ||
| 10 | 85674 | BEARING SET | ACT |
|
$87.58 | $84.24 | 1 | ||
| 11 | 17340T1 | LIFTER, Roller | ACT |
|
$158.58 | $149.34 | 16 | ||
| 12 | 811658 | CAMSHAFT | ACT |
|
$557.79 | $524.77 | 1 | ||
| 13 | 8M0187687 | CHAIN, Timing | 17161T | SS/ACT |
|
$138.58 | $130.51 | 1 | |
| 14 | 8116591 | SPROCKET, Camshaft | ACT |
|
$164.92 | $155.31 | 1 | ||
| 15 | 8M0184208 | SPROCKET, Crankshaft | 17160 | SS/ACT |
|
$71.58 | $68.85 | 1 | |
| 16 | 8M0043993 | SCREW, (.312-18 x .750) | 35339 | SS/ACT |
|
$1.60 | $1.57 | 3 | |
| 17 | 848136 | WASHER, (.328 x .680 x .190) | ACT |
|
$23.83 | $23.41 | 3 | ||
| 18 | 843378 | PIN, Dowel (1/4 In. Diameter) | 35312 | SS/ACT |
|
$15.40 | $15.02 | 1 | |
| 19 | 17341T | GUIDE, Lifter | 17341 | SS/ACT |
|
$19.25 | $18.91 | 8 | |
| 20 | 811662 | RETAINER, Lifter Guide | ACT |
|
$51.33 | $49.38 | 1 | ||
| 21 | 34500 | SCREW, (.312-18 x .625) | ACT |
|
$17.00 | $16.58 | 3 | ||
| 22 | 811664 | WASHER, (.3125 Inch) (.3125 Inch) | SS |
|
$0.00 | $0.00 | 3 | ||
| 23 | 845941 | RETAINER | ACT |
|
$25.17 | $24.72 | 1 | ||
| 24 | 845943 | SCREW, (.250-20 x .500) | ACT |
|
$6.50 | $6.34 | 2 | ||
| - | 8M0088396 | MARINE LONG BLOCK ENGINE | SS |
|
$0.00 | $0.00 | 1 | ||
| - | 8M0088397 | LONGBLOCK ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| - | 809825 | RTV SILICONE, (3 Ounce Tube) Metallic Blue, Where Applicable | ACT | $21.75 | $21.36 | 1 | |||
| - | 34227Q02 | SEALING COMPOUND, (16 Ounce), Where Applicable | SS |
|
$0.00 | $0.00 | 1 | ||
| - | 861246A05 | GASKET SET | 861246A98 | SS/ACT |
|
$794.93 | $747.87 | 1 |
