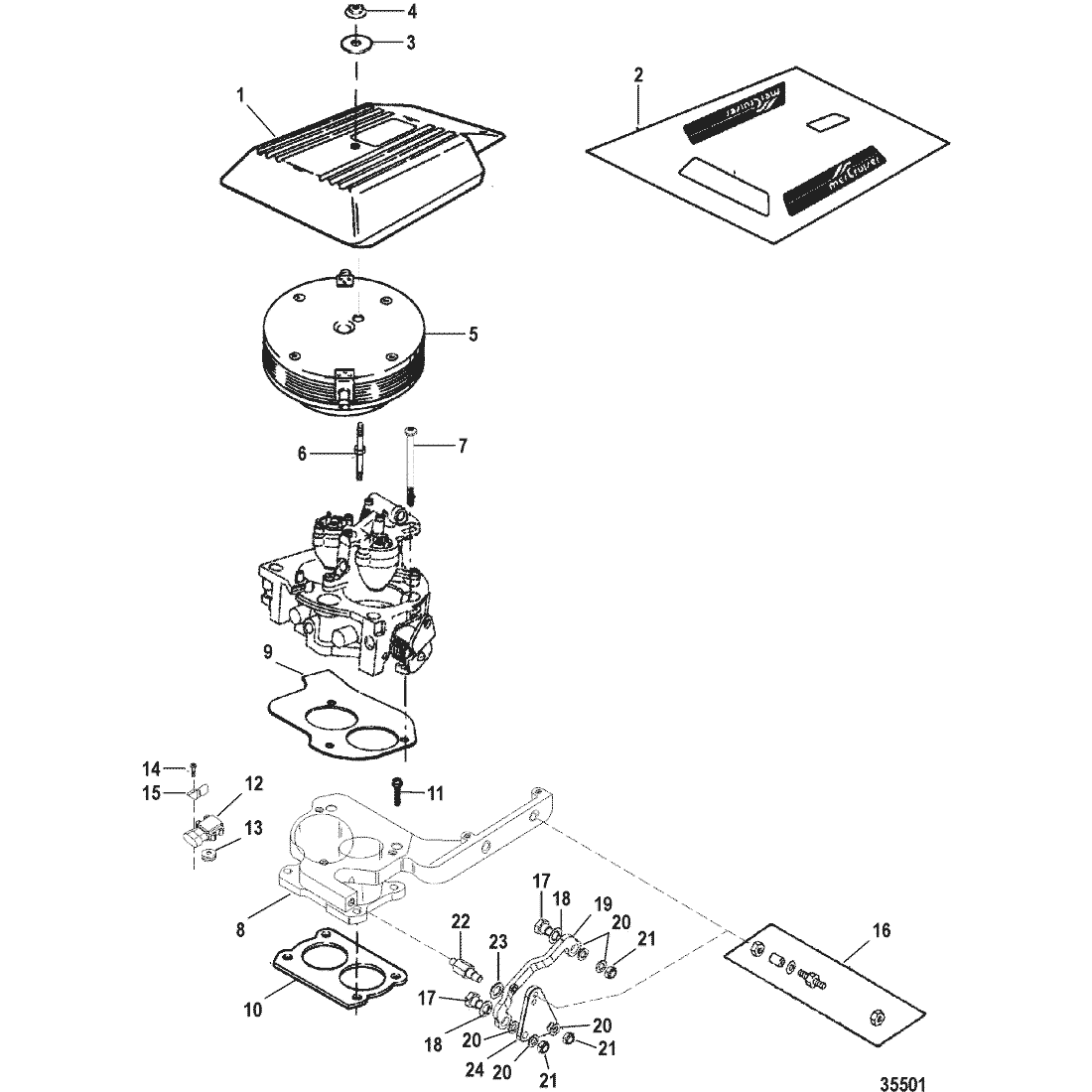

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 18484A3 | COVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 861314A6 | DECAL SET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 861314A5 | DECAL SET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 86400 | WASHER | ACT | $1.70 | $1.66 | 1 | |||
| 4 | 826709109 | NUT, (.250-28) | 35045 | SS |
|
$3.59 | $3.50 | 1 | |
| 5 | 806637A1 | FLAME ARRESTOR | 806637T | SS |
|
$0.00 | $0.00 | 1 | |
| 6 | 806703 | STUD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 805390 | SCREW, (.312-18 x 2.250) | ACT | $8.79 | $8.59 | 3 | |||
| 8 | 861189A1 | ADAPTOR ASSEMBLY, TBI | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 806640 | --GASKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 8079821 | --GASKET | 807982 | SS |
|
$5.29 | $5.17 | 1 | |
| 12 | 8M0186195 | SENSOR ASSEMBLY, Manifold Air Pressure | 861249A1 | NLA |
|
$317.49 | $298.84 | 1 | |
| 13 | 881733 | --SEAL | 805412 | SS |
|
$20.99 | $20.62 | 1 | |
| 14 | 821579 | SCREW, (#10-24 x .500) | ACT | $4.79 | $4.69 | 1 | |||
| 15 | 861198 | CLIP | ACT | $5.99 | $5.86 | 1 | |||
| 16 | 97477A3 | STUD KIT | ACT | $33.19 | $32.57 | 2 | |||
| 17 | 806946 | BOLT | NLA |
|
$0.00 | $0.00 | 2 | ||
| 18 | 861854 | WASHER | 91964 | SS |
|
$4.19 | $4.10 | 2 | |
| 19 | 807097T | CONNECTOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 20084 | WASHER, (.328 x .562 x .062) | ACT | $2.97 | $2.92 | 5 | |||
| 21 | 826709111 | NUT, (.312-24) | 45592 | SS |
|
$4.49 | $4.39 | 3 | |
| 22 | 806915 | SHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 79552 | WASHER, (.453 x .750 x .062) Stainless Steel | ACT | $2.97 | $2.92 | 1 | |||
| 24 | 806916T | PLATE | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 861246A05 | GASKET SET | 861246A98 | SS |
|
$826.99 | $777.78 | 1 |
