| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

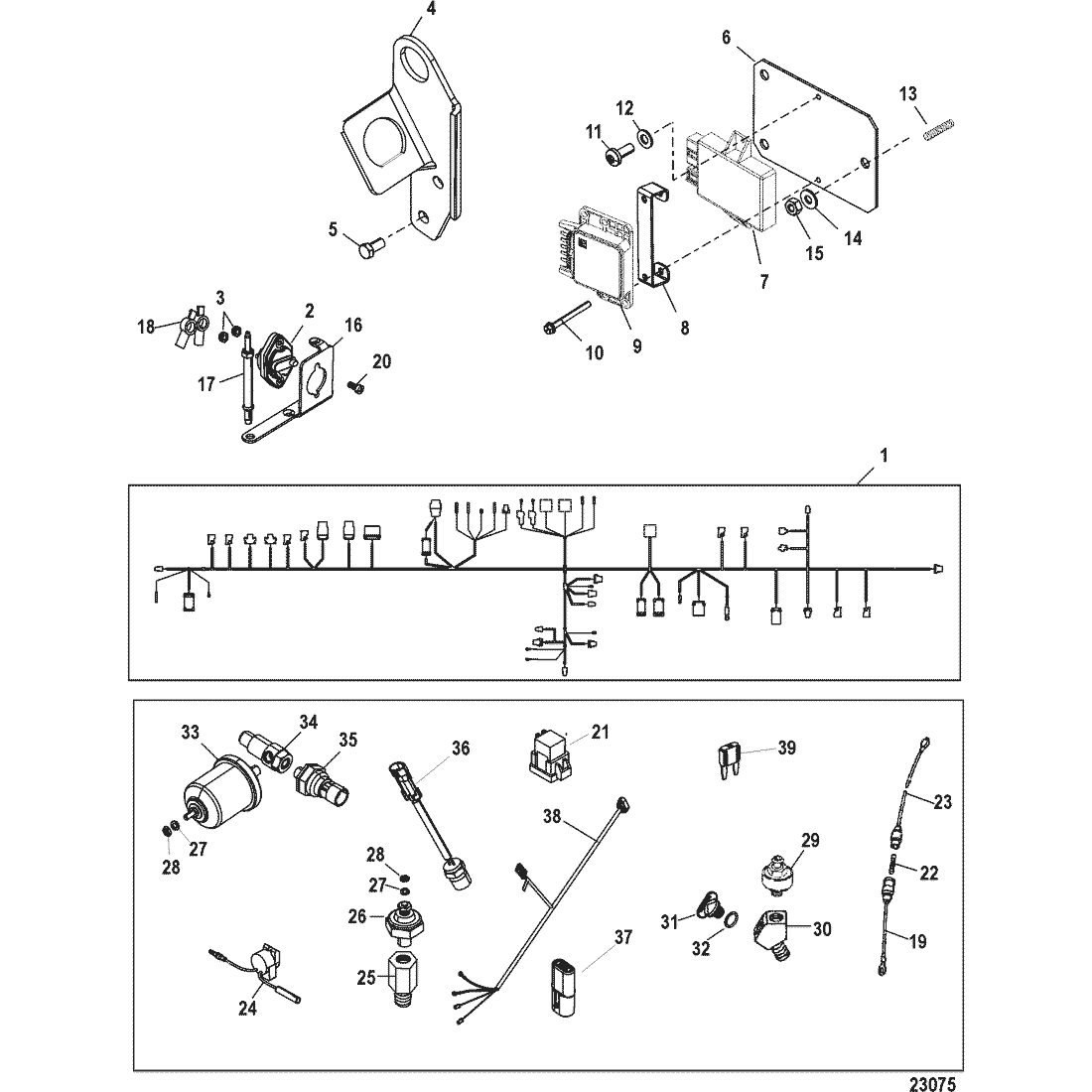

| 1 | 862575T05 | HARNESS ASSEMBLY | ACT |
|
$312.49 | $294.29 | 1 | ||
| 1 | 862163T05 | HARNESS ASSEMBLY | ACT |
|
$579.99 | $545.60 | 1 | ||
| 2 | 11178A01 | BREAKER, Circuit - 50 Ampere | 865827T | NLA |
|
$121.49 | $114.19 | 1 | |
| 3 | 8M0204718 | NUT, (#10-32) Stainless Steel | 826709106 | SS |
|
$4.69 | $4.59 | 2 | |
| 4 | 899719T02 | BRACKET, Harness Mounting/Lifting Eye | ACT | $39.49 | $38.77 | 1 | |||
| 5 | 98261 | SCREW, (.375-16 x .750) | ACT | $1.20 | $1.18 | 2 | |||
| 6 | 861516 | BRACKET | ACT | $16.89 | $16.53 | 1 | |||
| 7 | 861459T02 | ICM MODULE, Ignition Control Module | 861459T1 | SS |
|
$0.00 | $0.00 | 1 | |
| 7 | 861460T02 | ICM MODULE, Ignition Control Module | 861460T1 | SS |
|
$0.00 | $0.00 | 1 | |
| 7 | 861253T02 | ICM MODULE, Ignition Control Module | 861253T1 | SS |
|
$0.00 | $0.00 | 1 | |
| 7 | 861254T02 | ICM MODULE, Ignition Control Module | 861254T1 | SS |
|
$0.00 | $0.00 | 1 | |
| 8 | 861517 | BRACKET | ACT |
|
$19.29 | $18.82 | 1 | ||
| 9 | 8M0154747 | MODULE, Knock Control | 806611T | NLA |
|
$396.99 | $379.20 | 1 | |
| 10 | 41408 | SCREW, (#10-32 x 1.50) | ACT |
|
$3.39 | $3.30 | 2 | ||
| 11 | 861520 | SCREW, (#10-32 x .500) | ACT |
|
$0.70 | $0.69 | 2 | ||
| 12 | 89302 | WASHER, (.203 x .406 x .040) | ACT |
|
$1.80 | $1.76 | 2 | ||
| 13 | 24323 | SET SCREW, (.250-20 x 1.25) | ACT | $4.19 | $4.10 | 3 | |||
| 14 | 35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | ACT | $1.80 | $1.76 | 3 | |||
| 15 | 64015 | NUT, (.250-20) | ACT | $2.79 | $2.72 | 3 | |||
| 16 | 899719T01 | BRACKET | ACT | $44.99 | $44.04 | 1 | |||
| 17 | 805459 | STUD, Mercathode Mounting | ACT |
|
$11.09 | $10.83 | 1 | ||
| 18 | 89919 | BOOT, Insulator - Black | ACT | $2.49 | $2.43 | 2 | |||
| 19 | 95084A9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip | ACT |
|
$30.49 | $29.95 | 1 | ||
| 20 | 830861 | SCREW, (#8-32 x .625) | ACT | $1.80 | $1.76 | 2 | |||
| 21 | 8M0219830 | RELAY | 882751 | SS |
|
$18.69 | $18.33 | 1 | |
| 22 | 8M0207796 | FUSE, 20 Ampere | 79091 | SS |
|
$9.09 | $8.88 | 1 | |
| 23 | 8M0207788 | CABLE ASSEMBLY, (5.00 Inches) Red | 95084A10 | SS |
|
$9.49 | $9.27 | 1 | |
| 24 | 816492A6 | ALARM KIT | ACT | $121.49 | $114.26 | 1 | |||
| 25 | 32974 | FITTING, (.125-27) Adaptor | ACT | $5.69 | $5.56 | 1 | |||
| 26 | 805605A1 | SWITCH ASSEMBLY | ACT |
|
$42.49 | $41.65 | 1 | ||
| 27 | 26996 | --LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 2 | |||
| 28 | 68219 | --NUT, (#10-32) Stainless Steel | ACT | $2.99 | $2.92 | 2 | |||
| 29 | 806612T | SENSOR, Knock | ACT | $197.99 | $186.46 | 1 | |||
| 30 | 8067051 | FITTING, Dual | ACT | $99.49 | $95.54 | 1 | |||
| 31 | 8M0119211 | PLUG KIT, (.500-13) Royal Blue | 806608A1 | SS |
|
$10.19 | $9.95 | 1 | |
| 32 | 62706 | --O-RING, (.426 x .070) | ACT |
|
$2.39 | $2.33 | 1 | ||
| 33 | 8M0068784 | SENDER ASSEMBLY | 815425T | SS |
|
$133.49 | $125.49 | 1 | |
| 33 | 37293T | SENDER ASSEMBLY | ACT |
|
$205.99 | $193.68 | OPT | ||
| 34 | 864669 | FITTING | ACT | $31.09 | $30.53 | 1 | |||
| 35 | 8M0070108 | SWITCH, Oil Pressure | 864252 | SS |
|
$41.49 | $40.58 | 1 | |
| 36 | 866089 | THERMAL SWITCH, (Normally Open 130-110 degrees), Turn Key Start | ACT | $95.99 | $92.26 | 1 | |||
| 37 | 8M0207787 | DIODE ASSEMBLY | 865913A01 | SS |
|
$29.39 | $28.81 | 1 | |
| 38 | 866727T01 | HARNESS ASSEMBLY, Transom | ACT | $64.49 | $61.99 | 1 | |||
| 39 | 832969T15 | FUSE, Mini - Blue - 15 Ampere | 83296915 | SS |
|
$4.09 | $4.00 | 1 | |
| 39 | 832969T20 | FUSE, Mini - Yellow - 20 Ampere | 83296920 | SS |
|
$7.09 | $6.93 | 1 |
