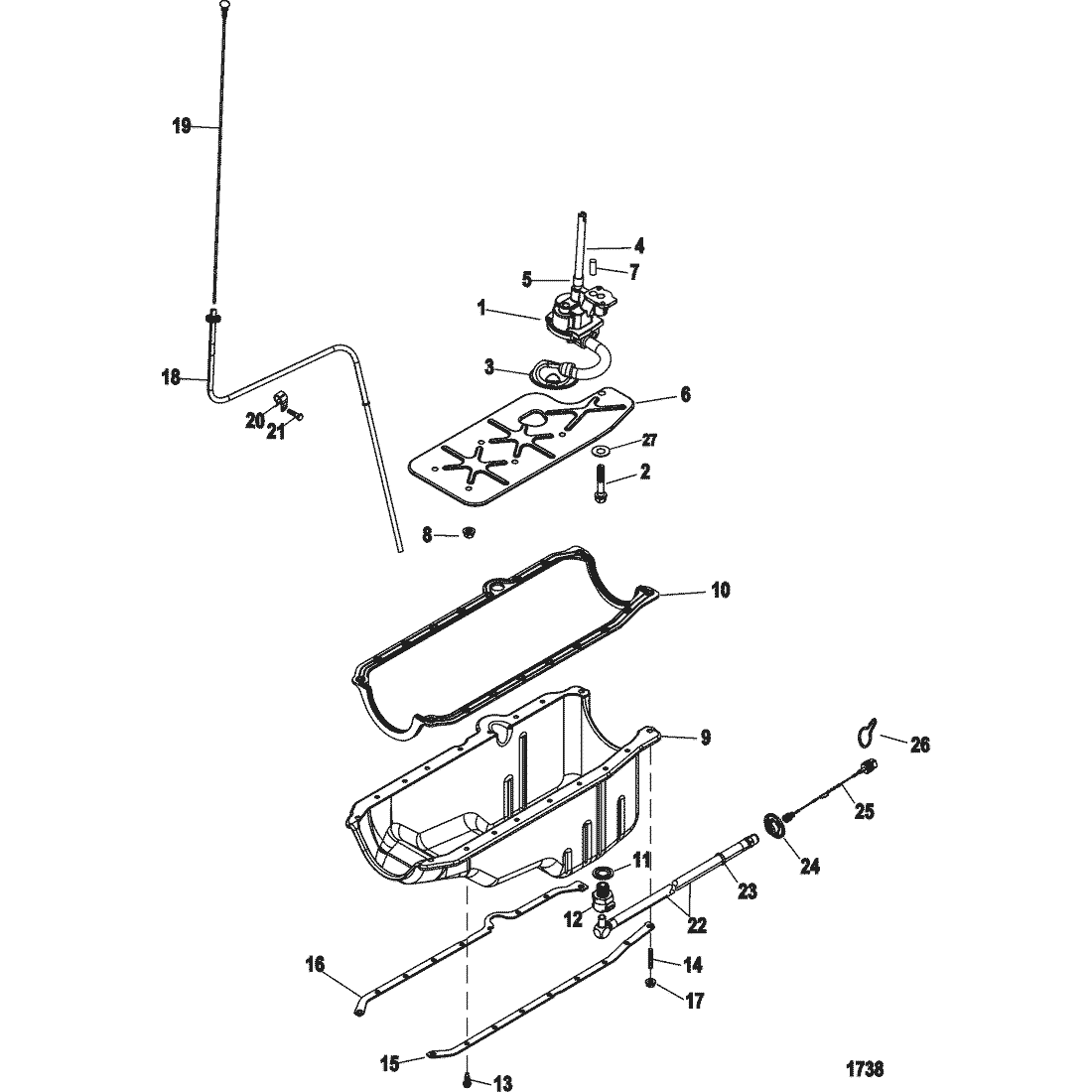

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 809907002 | PUMP ASSEMBLY | 8099071 | SS |
|
$469.49 | $434.58 | 1 | |
| 2 | 17346 | SCREW | ACT | $18.59 | $18.14 | 1 | |||
| 3 | 809909 | SCREEN, Oil Pump Pick Up | ACT | $41.49 | $40.74 | 1 | |||
| 4 | 36184 | SHAFT | ACT | $27.89 | $27.33 | 1 | |||
| 5 | 36183 | RETAINER | ACT | $5.49 | $5.37 | 1 | |||
| 6 | 986021 | DEFLECTOR, Oil | ACT | $29.69 | $29.13 | 1 | |||
| 7 | 843378 | PIN, Dowel (1/4 In. Diameter), Alignment | 35312 | SS |
|
$15.99 | $15.61 | 1 | |
| 8 | 845602 | NUT, (.375-16) | ACT | $7.09 | $6.93 | 5 | |||
| 9 | 8M0150300 | PAN, Oil | 809910 | SS |
|
$458.99 | $424.79 | 1 | |
| 10 | 8M0150304 | GASKET, Oil Pan | 138651 | SS |
|
$196.99 | $177.45 | 1 | |
| 11 | 8M0077608 | GASKET, Drain | 49955 | SS |
|
$17.89 | $17.46 | 1 | |
| 12 | 809911001 | SCREW, Oil Drain (M12 x 1.75) | 809911 | SS |
|
$19.49 | $19.13 | 1 | |
| 12 | 862811 | FITTING, Female Quick Connect | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 14070 | SCREW, (.250-20 x .625) | ACT | $13.19 | $12.88 | 14 | |||
| 14 | 11989 | STUD, (.312-18 x 1.6718) | ACT | $16.09 | $15.70 | 4 | |||
| 15 | 14257 | REINFORCEMENT | ACT | $36.49 | $35.68 | 1 | |||
| 16 | 14256 | REINFORCEMENT | ACT | $34.49 | $33.80 | 1 | |||
| 17 | 8M0148822 | NUT, (.312-18) | 11971 | SS |
|
$17.09 | $16.68 | 4 | |
| 18 | 860274A2 | TUBE | 860143A2 | SS |
|
$161.99 | $145.67 | 1 | |
| 18 | 862704A4 | TUBE, Dipstick | ACT |
|
$124.99 | $112.47 | 1 | ||
| 19 | 861942T7 | DIPSTICK | 15297 | SS |
|
$36.49 | $35.68 | 1 | |
| 19 | 861942T9 | DIPSTICK, Oil Level | ACT |
|
$74.99 | $70.48 | 1 | ||
| 20 | 805625 | CLIP, Dipstick Tube | ACT | $18.59 | $18.25 | 1 | |||
| 21 | 8M0040582 | SCREW, (.250-20 x .563) | 35366 | SS |
|
$18.59 | $18.14 | 1 | |
| 22 | 805505A4 | HOSE, Oil Drain | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 863481 | CLAMP, Ty Strap | ACT | $2.29 | $2.24 | 1 | |||
| 24 | 862777 | FLANGE, Drain | ACT | $16.49 | $16.09 | 1 | |||
| 25 | 862827 | TETHER ASSEMBLY | ACT | $98.49 | $92.53 | 1 | |||
| 26 | 805524 | CLIP | ACT | $15.49 | $15.12 | 1 | |||
| - | 861246A05 | GASKET SET | 861246A98 | SS |
|
$826.99 | $752.89 | 1 |
