| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

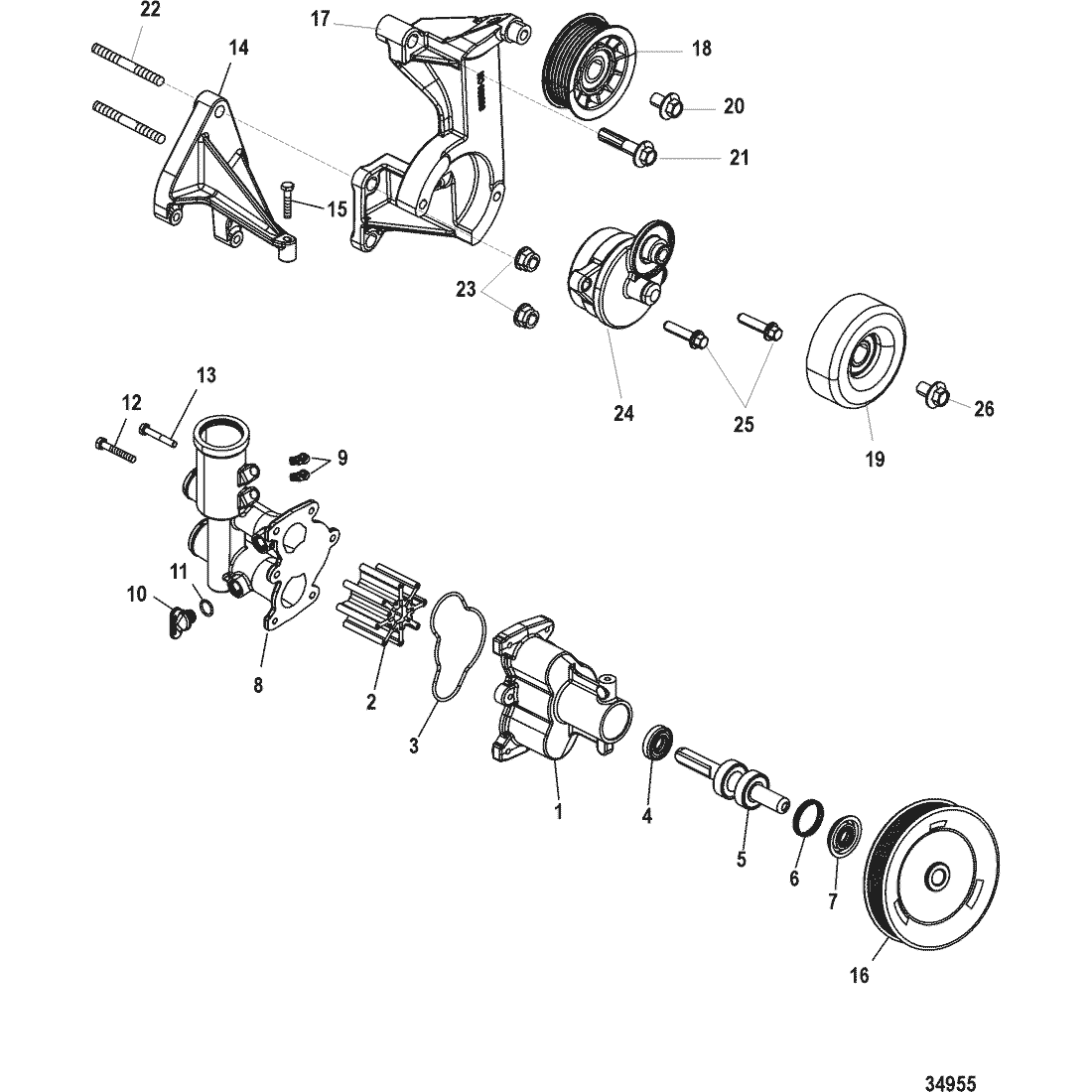

| - | 8M0139997 | PUMP KIT, Sea Water | 862914T12 | SS/ACT |
 |
$1,178.79 | $1,080.62 | 1 | |
| 1 | 8M0139984 | --HOUSING ASSEMBLY, Impeller | 862914A13 | SS/ACT |
|
$491.50 | $469.81 | 1 | |
| 2 | 8M0104229 | ----IMPELLER | 862232A2 | SS/ACT |
|
$50.33 | $48.42 | 1 | |
| 3 | 841807 | ------O-RING, (3.500 x .103) | ACT | $5.60 | $5.47 | 1 | |||
| 4 | 8M0146317 | ----SEAL, Oil | 862037 | SS/ACT |
|
$6.50 | $6.34 | 1 | |
| 5 | 862235A1 | ----DRIVESHAFT ASSEMBLY, Impeller | SS |
|
$0.00 | $0.00 | 1 | ||
| 6 | 862039 | ----TOLERANCE RING | ACT | $25.50 | $25.04 | 1 | |||
| 7 | 862040 | ----SEAL, Lip | ACT | $8.90 | $8.68 | 1 | |||
| 8 | 863674A04 | --COVER KIT, Impeller Housing | ACT |
|
$522.79 | $491.84 | 1 | ||
| 9 | 8M0082321 | ----FITTING, Gray (90 Degree) | 865288 | SS/ACT |
|
$13.00 | $12.68 | 1 | |
| 9 | 8M0082322 | ----FITTING, Orange (90 Degree) | 865289 | SS/ACT |
|
$18.60 | $18.14 | 1 | |
| 10 | 8M0119211 | ----PLUG ASSEMBLY, (.500-13) Blue | 806608A02 | SS/ACT |
|
$9.40 | $9.17 | 2 | |
| 11 | 26802 | ------O-RING, (.424 x .103) | ACT | $4.00 | $3.91 | 2 | |||
| 12 | 8M0214928 | --SCREW, (M6 x 16) | ACT | $3.90 | $3.81 | 6 | |||
| 13 | 8M2012296 | SCREW, (M6 x 40) | ACT | $2.20 | $2.15 | 2 | |||
| 14 | 863859T | BRACKET, Sea Water Pump | ACT | $128.42 | $120.94 | 1 | |||
| 15 | 4000331 | SCREW, (M6 x 30) | ACT | $3.70 | $3.61 | 1 | |||
| 16 | 8M0150724 | PULLEY | 862351T | SS/ACT |
|
$119.75 | $112.77 | 1 | |
| 17 | 865596T01 | BRACKET, Idler Pulley | ACT | $109.25 | $102.89 | 1 | |||
| 18 | 865444T | PULLEY, (3.50 Inch Diameter), Idler, Grooved | ACT | $62.75 | $60.36 | 1 | |||
| 19 | 865777 | PULLEY, Idler, Non-Grooved | ACT | $51.58 | $49.62 | 1 | |||
| 20 | 4010816 | SCREW, (M10 x 16) Hex Flange - Stainless Steel | ACT | $2.90 | $2.83 | 1 | |||
| 21 | 4010845 | SCREW, (M10 x 45) Hex Flange - Stainless Steel | ACT | $6.70 | $6.54 | 1 | |||
| 22 | 854309 | STUD, (M10 x 76) | ACT | $18.42 | $18.09 | 2 | |||
| 23 | 826292 | NUT, (M10) Brass/Nickel Plated | ACT | $4.00 | $3.91 | 2 | |||
| 23 | 8M2000545 | NUT, (M10) Stainless Steel | ACT |
|
$4.10 | $4.00 | 2 | ||
| 24 | 865597T | TENSIONER, Belt | ACT | $141.58 | $133.33 | 1 | |||
| 25 | 8M0103813 | SCREW, (M8 x 30) | 88552630 | SS/ACT |
|
$3.90 | $3.81 | 2 | |
| 26 | 4010820 | SCREW, (M10 x 20) Hex Flange - Stainless Steel | ACT | $4.60 | $4.49 | 1 |
