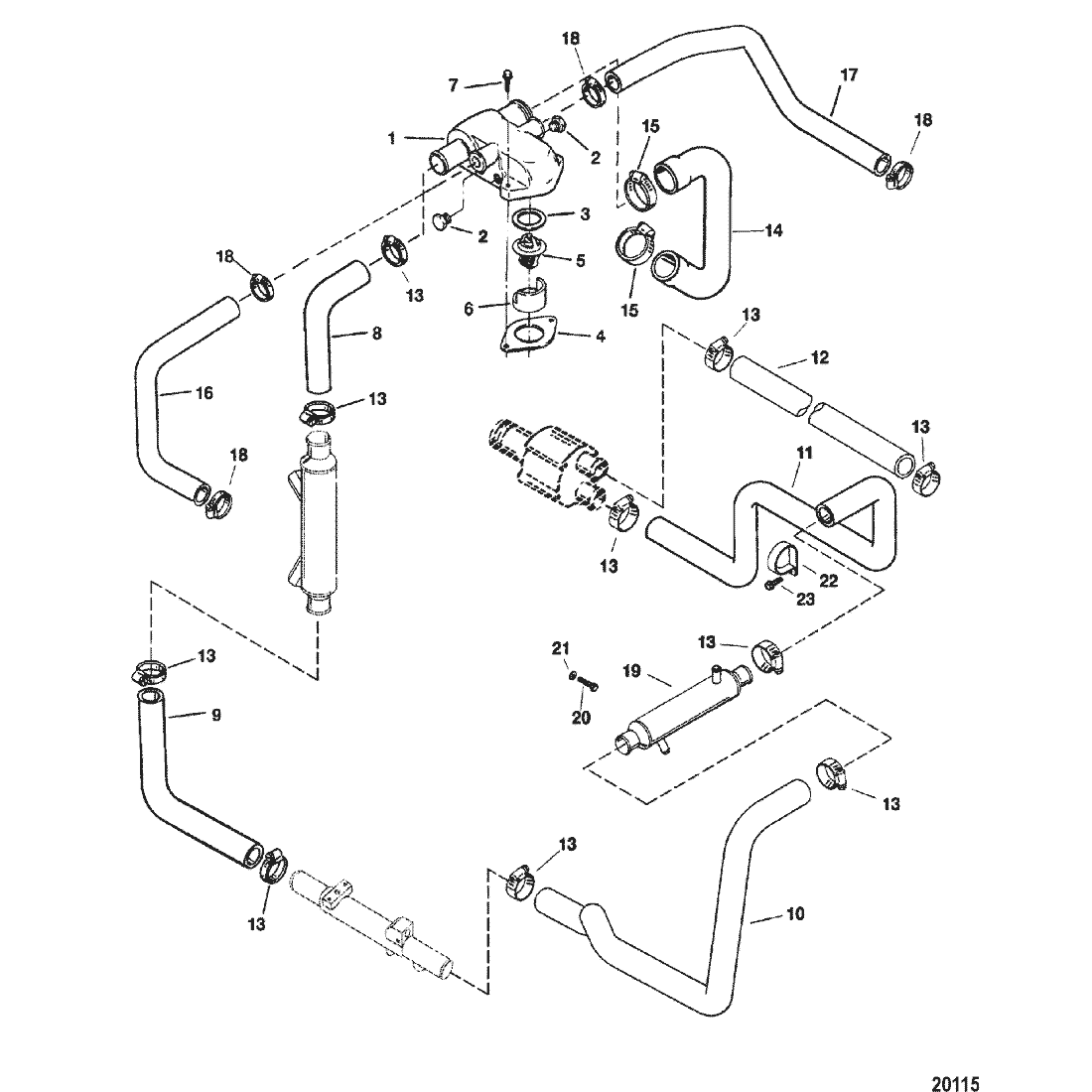

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0061381 | HOUSING ASSEMBLY, Thermostat | 861006A1 | SS |
|
$254.49 | $229.44 | 1 | |
| 2 | 8M0180565 | --PLUG, Pipe (.375-18) Brass | 32803 | SS |
|
$7.99 | $7.81 | 2 | |
| 3 | 8M0204687 | --GASKET | 806871 | SS |
|
$10.19 | $9.95 | 1 | |
| 4 | 530451 | GASKET | ACT | $5.69 | $5.56 | 1 | |||
| 5 | 8M0109441 | THERMOSTAT, 71°C (160°F) | 807252T2 | SS |
|
$34.49 | $33.72 | 1 | |
| 6 | 8M0214947 | SLEEVE | 806922 | SS |
|
$17.89 | $17.46 | 1 | |
| 7 | 861429 | SCREW (3/8-16 X 2 IN.) | ACT | $5.09 | $4.98 | 2 | |||
| 8 | 807407 | HOSE | ACT | $27.29 | $26.76 | 1 | |||
| 9 | 71613 | HOSE | 807989 | NLA |
|
$72.49 | $68.20 | 1 | |
| 9 | 8074061 | HOSE | ACT |
|
$46.99 | $45.99 | 1 | ||
| 10 | 808045 | HOSE, Fuel Cooler to Transmission Oil Cooler | ACT | $61.99 | $58.23 | 1 | |||
| 11 | 808044 | HOSE, Molded | ACT | $94.99 | $89.07 | 1 | |||
| 12 | 8M0062666 | HOSE, (96.00 Inches Bulk) | 1743579 | SS |
|
$220.99 | $199.09 | 1 | |
| 13 | 8M0188622 | CLAMP, Worm Gear (1.98 DIameter) | 815504222 | SS |
|
$5.69 | $5.56 | 10 | |
| 14 | 897181 | HOSE | ACT | $78.99 | $74.09 | 1 | |||
| 15 | 815504232 | CLAMP, Worm Gear (2.50 Diameter) | ACT | $8.89 | $8.68 | 2 | |||
| 16 | 897491 | HOSE | ACT | $70.49 | $66.16 | 1 | |||
| 17 | 861318 | HOSE | ACT | $58.49 | $54.94 | 1 | |||
| 18 | 815504216 | CLAMP, Worm Gear (1.56 Diameter) | ACT | $18.69 | $18.24 | 4 | |||
| 19 | 8M0125855 | COOLER | 861554T | SS |
|
$212.99 | $191.72 | 1 | |
| 20 | 816585 | SCREW, (.375-18 x .875) | ACT |
|
$3.39 | $3.30 | 1 | ||
| 20 | 8M2016106 | SCREW, (.312 x 1.25) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | 35048 | LOCKWASHER, (.375) | ACT | $1.20 | $1.18 | 1 | |||
| 22 | 47715 | CLIP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 35765A1 | SCREW AND LOCKWASHER, (.312-18 x .625) (5/16-18 X 5/8 IN.) | ACT | $1.50 | $1.47 | 1 | |||
| NS | 8M0074364 | COVER, Hose Clamp End | 8079923 | SS |
|
$3.29 | $3.21 | AR | |
| - | 811572A94 | GASKET SET, Overhaul | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 805396A92 | GASKET SET, Overhaul | NLA |
|
$0.00 | $0.00 | 1 |
