| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

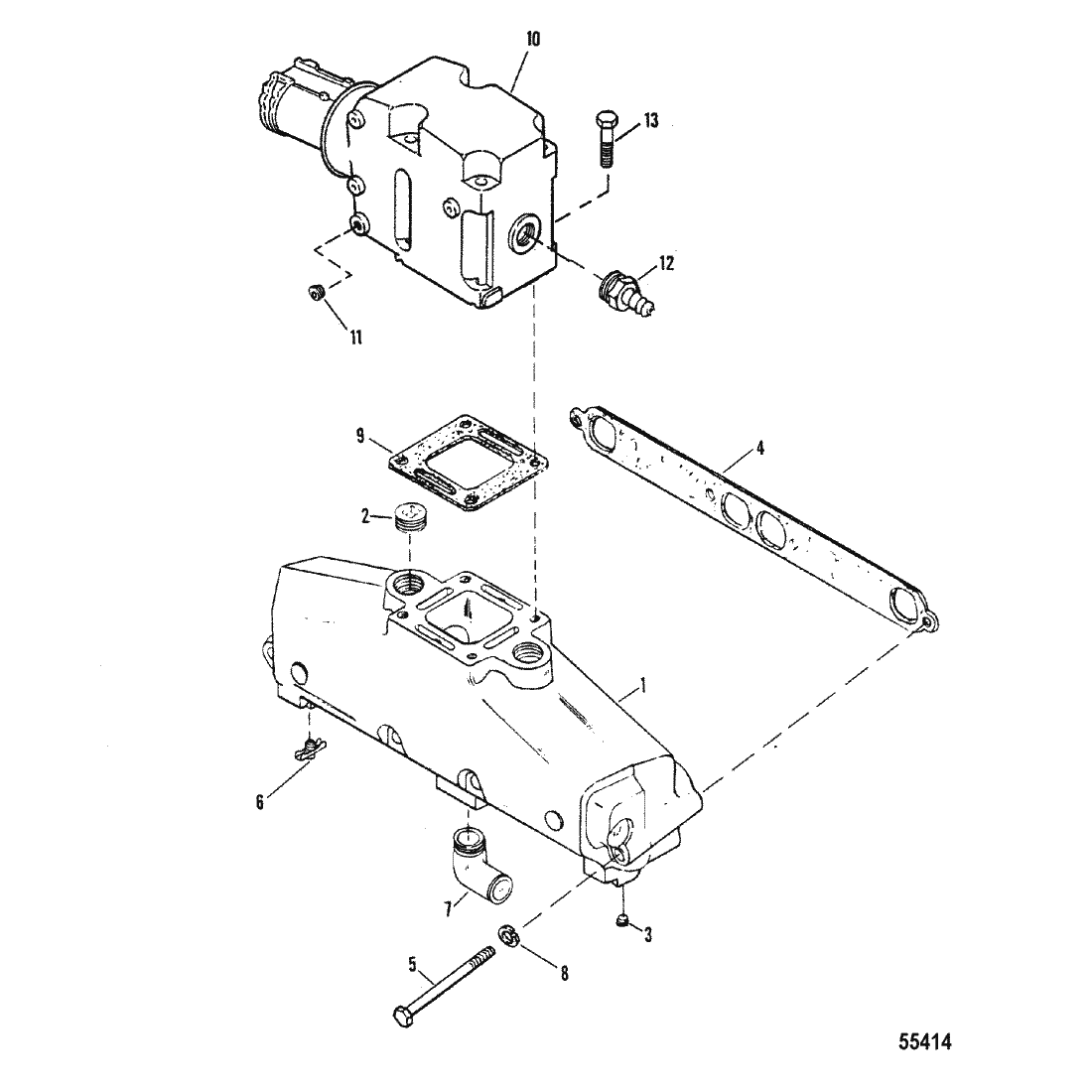

| 1 | 807078T10 | MANIFOLD ASSEMBLY | 89011A8 | SS |
|
$565.99 | $565.99 | 2 | |
| 2 | 416223 | --PLUG, (3/4-14) | 33198A1 | SS |
|
$3.49 | $3.40 | AR | |
| 3 | 8M0180564 | --PLUG, (.250-18) | 73379 | SS |
|
$7.59 | $7.42 | 4 | |
| 4 | 46820 | GASKET | ACT | $24.29 | $23.82 | 2 | |||
| 5 | 37612 | SCREW, (.375-16 x 1.250) (1-1/4") | ACT | $2.49 | $2.43 | 8 | |||
| 5 | 48424 | SCREW, (.375-16 x 1.620) (1-5/8") | ACT | $2.99 | $2.92 | 8 | |||
| 6 | 16951Q1 | COCK ASSEMBLY | 16951A1 | SS |
|
$32.29 | $31.67 | 2 | |
| 7 | 36305T | ELBOW, (90 Degrees) | 36305 | SS |
|
$39.49 | $38.63 | 2 | |
| 8 | 35048 | LOCKWASHER, (.375) | ACT | $1.20 | $1.18 | 16 | |||
| 9 | 863724 | GASKET (STANDARD COOLING) | 41813 | SS |
|
$18.29 | $17.85 | 2 | |
| 10 | 807988A03 | ELBOW ASSEMBLY, Exhaust (7 ) | 44354A3 | SS |
|
$348.49 | $313.88 | 2 | |
| 11 | 36382 | --FITTING, (.250-18 x .62) Brass | ACT | $5.49 | $5.37 | 2 | |||
| 12 | 865159 | FITTING, (45 Degrees) (45 ) | 92499 | SS |
|
$25.39 | $24.88 | 1 | |
| 12 | 866725 | FITTING, Straight (STRAIGHT) | 45084 | SS |
|
$18.29 | $17.85 | 1 | |
| 13 | 43749 | SCREW, (.375-16 x 5.750) | ACT | $5.89 | $5.76 | 6 | |||
| 13 | 44387 | SCREW, (.376-16 x 6.750) | ACT | $16.69 | $16.29 | 2 |
