| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

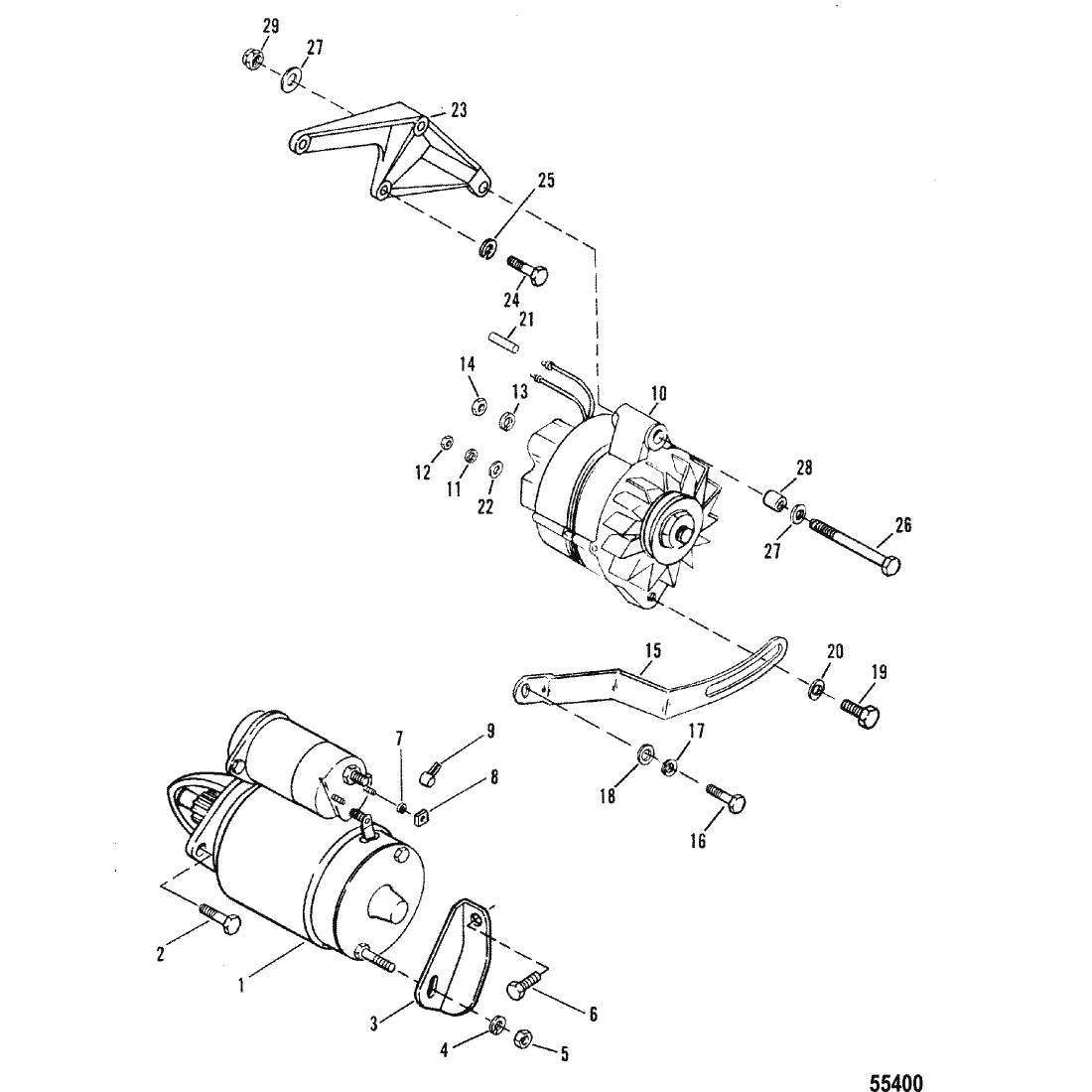

| 1 | 863007A1 | STARTER MOTOR ASSEMBLY | ACT | $319.18 | $297.91 | 1 | |||
| 2 | 94435001 | BOLT, (.375-16 x 4.600), STARTER MOTOR (4-21/32") 12" STARTER MOTOR | 94435 | SS/ACT |
 |
$17.17 | $16.86 | 2 | |
| 3 | 89057 | BRACE, STARTER MOTOR 12" STARTER MOTOR | SS |
|
$0.00 | $0.00 | 1 | ||
| 4 | 8M0204649 | WASHER, (.281 x .500 x .060) Stainless Steel, STARTER MOTOR STUD 12" STARTER MOTOR | ACT | $1.20 | $1.18 | 2 | |||
| 5 | 8267088 | NUT, (.250-20), BATTERY TERMINAL (1/4-20) 12" STARTER MOTOR | 72008 | SS/ACT |
|
$1.60 | $1.57 | 1 | |
| 5 | 15874 | NUT, (M10), BATTERY TERMINAL (10MM) 12" STARTER MOTOR | ACT | $2.70 | $2.64 | 1 | |||
| 6 | 35765A1 | SCREW AND LOCKWASHER, (.312-18 x .625), BRACE TO ENGINE (5/8") 12" STARTER MOTOR | ACT | $1.50 | $1.47 | 1 | |||
| 7 | 26995 | LOCKWASHER, (#8) Stainless Steel, STARTER TERMINAL (#8) 12" STARTER MOTOR | ACT | $1.10 | $1.08 | 2 | |||
| 8 | 26419 | NUT, (#8-32) Brass, STARTER SWITCH TERMINAL (8-32) 12" STARTER MOTOR | ACT | $1.60 | $1.57 | 1 | |||
| 8 | 400211 | NUT, (M5) Stainless Steel, STARTER SWITCH TERMINAL (5MM) 12" STARTER MOTOR | ACT | $3.50 | $3.42 | 2 | |||
| 1 | 863007A1 | STARTER MOTOR ASSEMBLY | 812428A3 | SS/ACT |
|
$319.18 | $297.91 | 1 | |
| 2 | 8053432 | SCREW | 813642 | SS/ACT |
|
$16.40 | $16.00 | 2 | |
| 5 | 15874 | NUT, (M10), BATTERY TERMINAL (10MM) 8" STARTER MOTOR | ACT | $2.70 | $2.64 | 1 | |||
| 8 | 400211 | NUT, (M5) Stainless Steel, STARTER SWITCH TERMINAL (5MM) 8" STARTER MOTOR | ACT | $3.50 | $3.42 | 2 | |||
| 9 | 79695T | BOOT, Insulator - Black, INSULATOR - STARTER TERMINAL | 79695 | SS/ACT |
|
$5.30 | $5.17 | 1 | |
| 10 | 817119A4 | ALTERNATOR ASSEMBLY, (55 Ampere) | 92497A3 | SS/ACT |
|
$337.58 | $317.91 | 1 | |
| 11 | 26996 | LOCKWASHER, (#10) Stainless Steel, ALTERNATOR TERMINAL | ACT | $1.20 | $1.18 | 1 | |||
| 12 | 79989 | NUT, (#10-24) Stainless Steel, ALTERNATOR TERMINAL (10-24) | ACT | $2.70 | $2.64 | 1 | |||
| 13 | 26992 | LOCKWASHER, (.250) Stainless Steel, ALTERNATOR TERMINAL | ACT | $1.20 | $1.18 | 1 | |||
| 14 | 64015 | NUT, (.250-20), ALTERNATOR TERMINAL (1/4-20) | ACT | $2.70 | $2.64 | 1 | |||
| 15 | 85013T | BRACE, ALTERNATOR ADJUSTING | ACT | $65.75 | $63.24 | 1 | |||
| 16 | 47462 | SCREW, (.437-14 x 1.250), ALTERNATOR BRACE | ACT | $1.70 | $1.66 | 1 | |||
| 17 | 32993 | LOCKWASHER, (.437), ALTERNATOR BRACE | ACT | $1.60 | $1.57 | 1 | |||
| 18 | 31263 | WASHER, ALTERNATOR BRACE SCREW | ACT | $1.00 | $0.98 | 1 | |||
| 19 | 29198 | SCREW AND LOCKWASHER, (.312-18 x .875), ALTERNATOR BRACE (7/8") | ACT | $4.40 | $4.30 | 1 | |||
| 20 | 26168 | WASHER, ALTERNATOR BRACE SCREW | ACT | $1.60 | $1.57 | 1 | |||
| 21 | 5790811 | SLEEVE, (10.00 Inches Bulk), ALTERNATOR LEADS | ACT | $15.80 | $15.41 | 2 | |||
| 22 | 96457 | WASHER, Phenolic (.27 x .81 x .062), ALTERNATOR TERMINAL | ACT | $1.60 | $1.57 | 1 | |||
| 23 | 806394A1 | BRACKET, ALTERNATOR | 96116A1 | SS/ACT |
|
$215.81 | $203.24 | 1 | |
| 24 | 37612 | SCREW, (.375-16 x 1.250), ALTERNATOR BRACKET (1-1/4") | ACT | $2.40 | $2.35 | 1 | |||
| 24 | 34354 | SCREW, (.375-16 x 1.50), ALTERNATOR BRACKET (1-1/2") | ACT | $2.30 | $2.25 | 2 | |||
| 25 | 35048 | LOCKWASHER, (.375), ALTERNATOR BRACKET SCREW | ACT | $1.20 | $1.18 | 3 | |||
| 26 | 48308 | SCREW, (.375-24 x 3.750), ALTERNATOR (3-3/4") | ACT | $4.30 | $4.20 | 1 | |||
| 27 | 20553 | WASHER, (.406 x .734 x .063), ALTERNATOR BRACKET SCREW | ACT | $1.40 | $1.37 | 2 | |||
| 28 | 33186 | BUSHING, ALTERNATOR BRACKET SCREW | ACT | $23.83 | $23.41 | 1 | |||
| 29 | 23161 | NUT, (.375-24), ALTERNATOR BRACKET SCREW | ACT | $2.80 | $2.74 | 1 |
