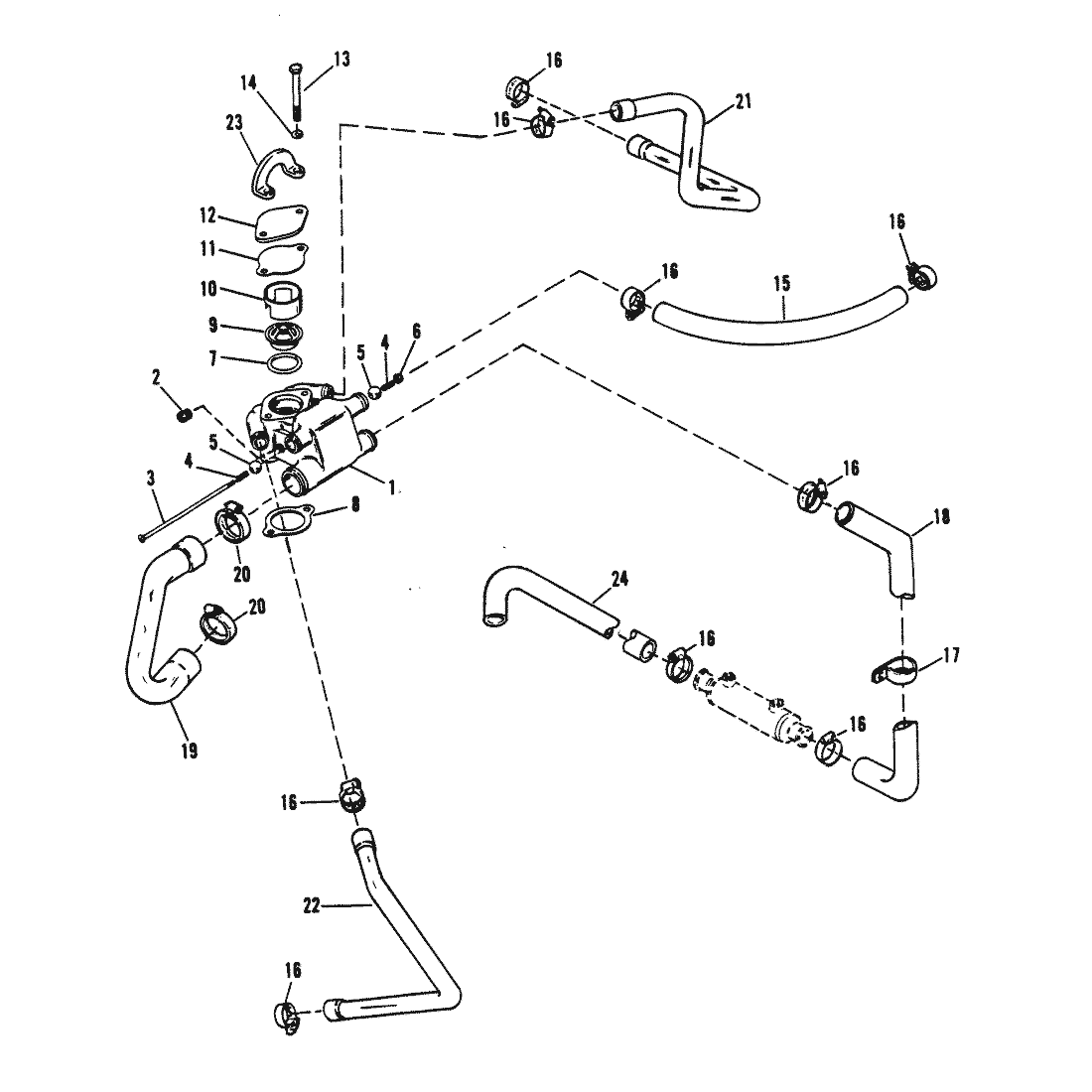

THERMOSTAT HOUSING(NEW DESIGN)

Ref #	Current Part Nbr	Description	Superceded From	Status	List Price	Online Price	Quan Used
1	16413A3	THERMOSTAT HOUSING ASSEMBLY		SS	$0.00	$0.00	1
2	8M0180565	--PIPE PLUG	32803	SS/ACT	$7.70	$7.51	1
3	17989	--SCREW		ACT	$8.40	$8.20	1
4	75533	--SPRING		ACT	$2.90	$2.83	2
5	98475	--NYLON BALL		ACT	$10.80	$10.54	2
6	8M0204718	--NUT	29488	SS/ACT	$4.50	$4.39	1
7	8M0204651	--"O" RING	30224	SS/ACT	$4.00	$3.91	1
8	530451	GASKET, THERMOSTAT HOUSING		ACT	$5.50	$5.37	1
9	8M0089715	THERMOSTAT (143 )	59137	SS/ACT	$26.58	$26.11	1
10	8M0214947	SLEEVE, THERMOSTAT	17495	SS/ACT	$17.20	$16.78	1
11	8M0214924	GASKET, THERMOSTAT COVER	331792	SS/ACT	$2.90	$2.83	1
12	17494A1	COVER, THERMOSTAT		ACT	$52.50	$50.50	1
13	60410	SCREW, THERMOSTAT HOUSING TO INTAKE MANIFOLD (4-1/4")		ACT	$5.70	$5.56	2
14	35048	LOCKWASHER, THERMOSTAT HOUSING SCREW		ACT	$1.20	$1.18	2
15	8M0062614	HOSE, TEE TO EXHAUST ELBOW (19")	3322070	SS/ACT	$68.33	$65.73	2
16	815504220	CLAMP, HOSE	32780	SS/ACT	$7.30	$7.12	AR
17	47715	CLIP, HOSE		SS	$0.00	$0.00	1
18	16011	HOSE, OIL COOLER TO THERMOSTAT HOUSING		ACT	$51.25	$49.30	1
19	897181	HOSE, THERMOSTAT HOUSING TO WATER PUMP	89718	SS/ACT	$75.67	$72.78	1
20	815504232	CLAMP, HOSE	87268	SS/ACT	$8.60	$8.39	2
21	89749	HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT)		ACT	$49.17	$48.28	1
22	897301	HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (STBD.)	89730	SS/ACT	$69.83	$67.17	1
23	12552	LIFTING EYE		ACT	$15.60	$15.22	1
24	96246A4	HOSE, OIL COOLER TO DRIVE UNIT		ACT	$70.92	$68.21	1
-	65184A88	ENGINE GASKET SET		ACT	$656.14	$617.30	1
