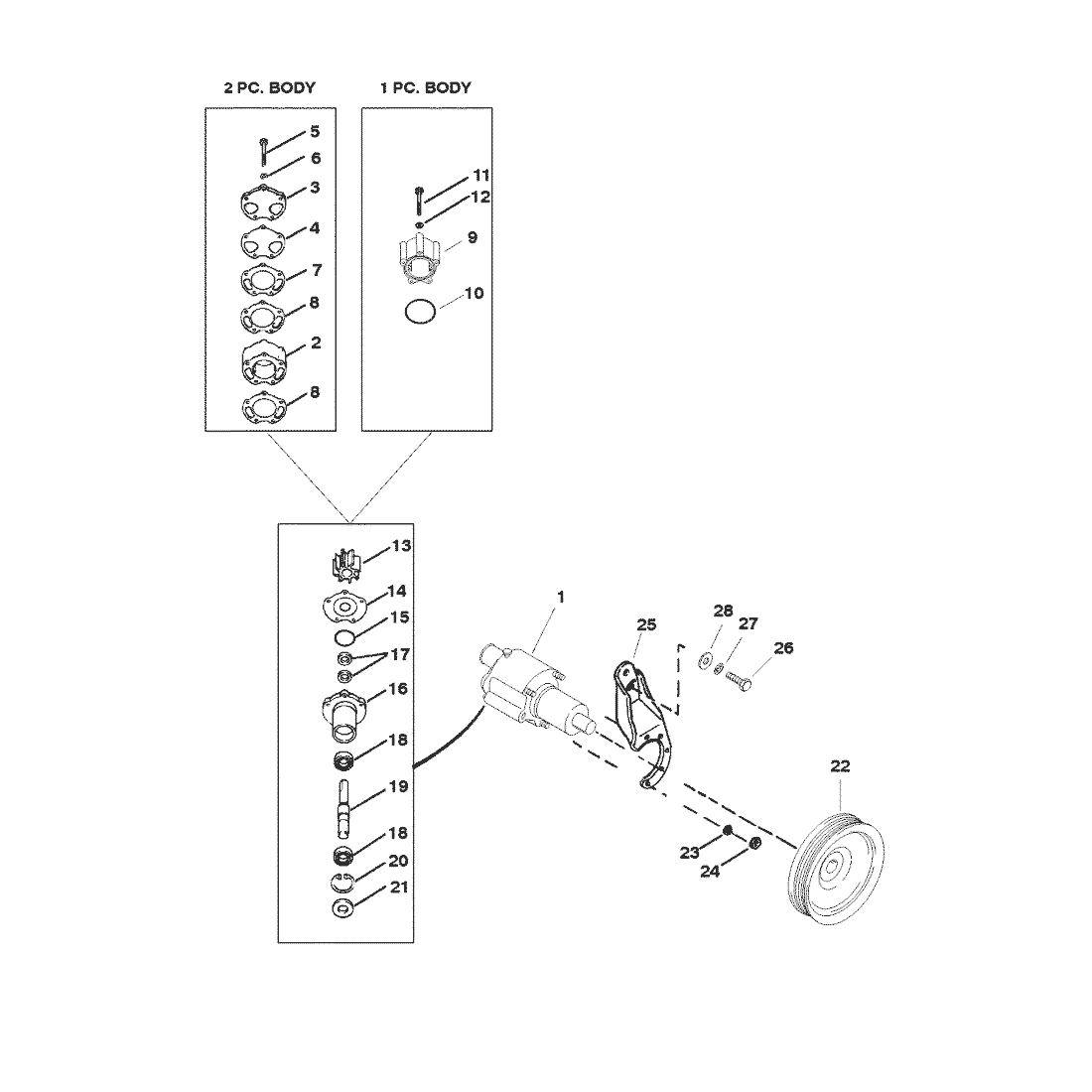

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 807151A9 | PUMP ASSEMBLY-SEAWATER | ACT |
|
$593.99 | $593.49 | 1 | ||
| 2 | 72774A40 | --BODY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 87631A4 | --COVER | ACT |
|
$219.42 | $197.81 | 1 | ||
| 4 | 8052151 | ----GASKET | ACT |
|
$9.59 | $9.37 | 1 | ||
| 5 | 73275 | --SCREW (5/16-18 X 2-7/8 IN.) | ACT |
|
$1.90 | $1.86 | 2 | ||
| 5 | 99347 | --SCREW (5/16-18 X 3-3/4 IN.) | ACT |
|
$17.09 | $16.68 | 3 | ||
| 6 | 20084 | --WASHER | ACT |
|
$2.97 | $2.92 | 5 | ||
| 7 | 94916 | --PLATE-WEAR (OUTER) | ACT |
|
$27.79 | $27.25 | 1 | ||
| 8 | 94914 | --GASKET | ACT |
|
$3.69 | $3.59 | 2 | ||
| 9 | 807151A14 | --BODY-WATER PUMP | 807151A7 | SS |
|
$145.49 | $137.02 | 1 | |
| 10 | 8M0214925 | ----QUAD RING | 807149 | SS |
|
$5.29 | $5.17 | 1 | |
| 11 | 8M0204689 | --SCREW (5/16-18 X 2-5/8 IN.) | 807356 | SS |
|
$1.50 | $1.47 | 2 | |
| 11 | 8M0204669 | --SCREW (5/16-18 X 3-1/4 IN.) | 74191 | SS |
|
$1.10 | $1.08 | 3 | |
| 12 | 8M0204690 | --WASHER | 814806 | SS |
|
$1.80 | $1.76 | 5 | |
| 13 | 59362T1 | --IMPELLER | 593621 | SS |
|
$45.99 | $45.09 | 1 | |
| 14 | 8M0204674 | --PLATE-WEAR (INNER) | 94576 | SS |
|
$27.49 | $26.93 | 1 | |
| 15 | 8M0215007 | --QUAD RING | 94288 | SS |
|
$4.59 | $4.49 | 1 | |
| 16 | 94913A5 | --HOUSING ASSEMBLY-PUMP | ACT |
|
$325.49 | $306.21 | 1 | ||
| 17 | 90562 | ----SEAL-OIL | ACT | $18.89 | $18.50 | 2 | |||
| 18 | 72961 | ----BEARING-BALL | ACT | $16.99 | $16.62 | 2 | |||
| 19 | 59501A1 | ----SHAFT | ACT | $208.99 | $196.58 | 1 | |||
| 20 | 23720 | ----RING-RETAINER | ACT | $2.99 | $2.92 | 1 | |||
| 21 | 72785 | ----SEAL-OIL | ACT | $22.19 | $21.77 | 1 | |||
| 22 | 8M0147207 | ----PULLEY | 807731T | SS |
|
$120.99 | $113.79 | 1 | |
| 23 | 39107 | LOCKWASHER (5/16 IN.) | ACT | $1.50 | $1.47 | 3 | |||
| 24 | 21908 | NUT (5/16-18) | ACT | $3.19 | $3.11 | 3 | |||
| 25 | 8077491 | BRACKET | 807749T | SS |
|
$80.99 | $77.59 | 1 | |
| 26 | 34353 | SCREW (3/8-16 X 1 IN.) | ACT | $2.59 | $2.53 | 2 | |||
| 27 | 35048 | LOCKWASHER (3/8 IN.) | ACT | $1.20 | $1.18 | 2 | |||
| 28 | 34714 | WASHER | ACT | $2.39 | $2.33 | 1 |
