| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

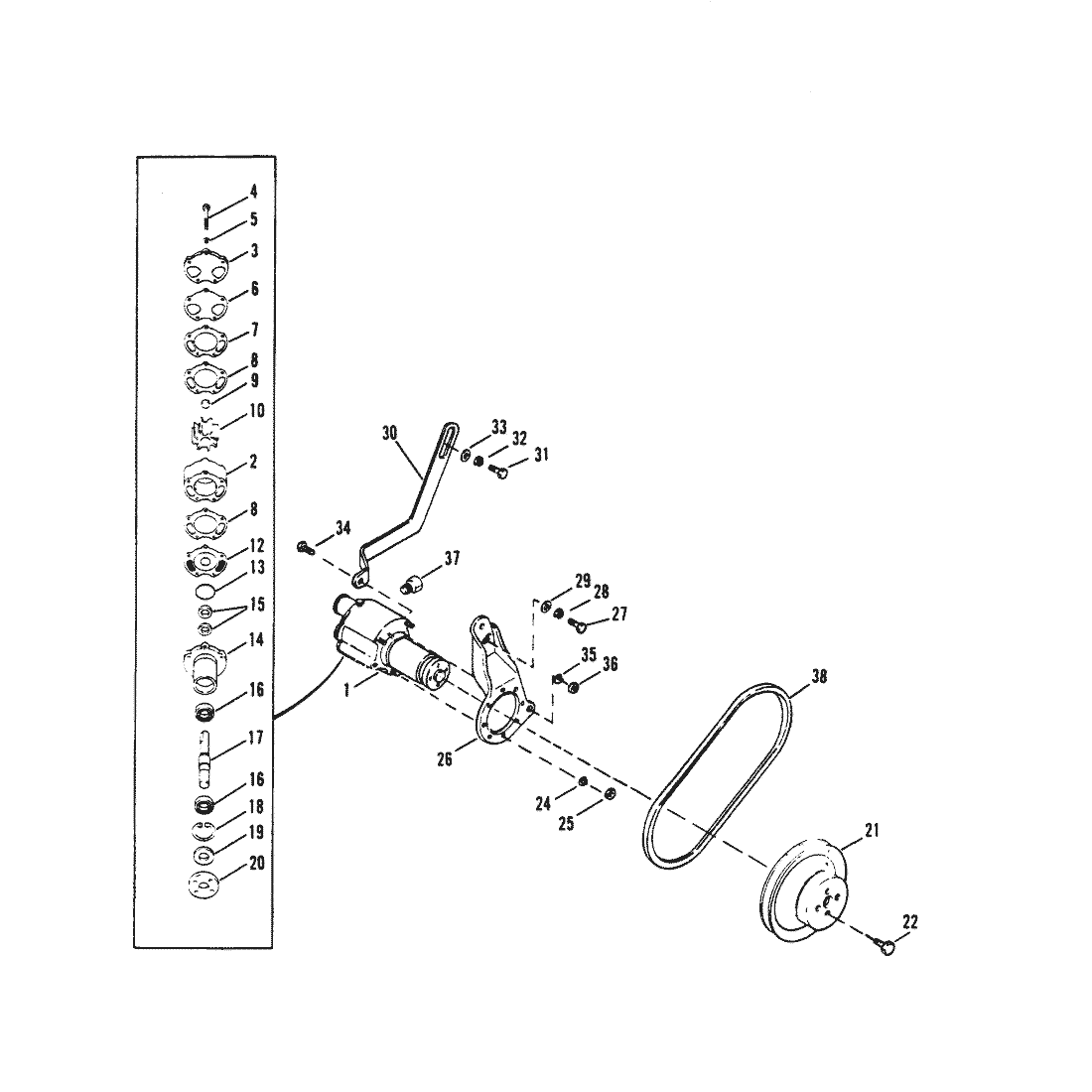

| 1 | 807151A12 | WATER PUMP ASSEMBLY | 72774A50 | SS/ACT |
 |
$573.24 | $538.84 | 1 | |
| 2 | 72774A40 | --BODY | SS |
|
$0.00 | $0.00 | 1 | ||
| 3 | 87631A4 | --COVER | ACT | $211.00 | $198.70 | 1 | |||
| 4 | 73275 | --SCREW (2-7/8") | ACT | $1.80 | $1.76 | 2 | |||
| 4 | 99347 | --SCREW (3-3/4") | ACT | $16.40 | $16.00 | 3 | |||
| 5 | 20084 | --WASHER | ACT | $2.83 | $2.77 | 5 | |||
| 6 | 8052151 | --GASKET | ACT | $9.20 | $8.98 | 1 | |||
| 7 | 94916 | --OUTER WEAR PLATE | ACT | $26.67 | $26.19 | 1 | |||
| 8 | 94914 | --GASKET | ACT | $3.60 | $3.52 | 2 | |||
| 9 | 59504 | --PLUG | ACT | $13.40 | $13.07 | 1 | |||
| 10 | 59362T1 | --IMPELLER | 593621 | SS/ACT |
|
$44.95 | $44.03 | 1 | |
| 12 | 8M0204674 | --INNER WEAR PLATE | ACT | $26.33 | $25.86 | 1 | |||
| 13 | 8M0215007 | --QUAD RING | ACT | $4.40 | $4.30 | 1 | |||
| 14 | 94913A2 | --PUMP HOUSING ASSEMBLY | ACT |
|
$392.89 | $366.72 | 1 | ||
| 15 | 90562 | ----OIL SEAL | ACT | $21.22 | $20.75 | 2 | |||
| 16 | 72961 | ----BALL BEARING | ACT | $23.00 | $22.59 | 2 | |||
| 17 | 59501A1 | ----SHAFT | ACT | $200.75 | $189.05 | 1 | |||
| 18 | 23720 | ----SNAP RING | ACT | $2.90 | $2.83 | 1 | |||
| 19 | 72785 | ----OIL SEAL | ACT | $21.33 | $20.95 | 1 | |||
| 20 | 47530 | --HUB | ACT | $62.58 | $60.20 | 1 | |||
| 21 | 52822T | PULLEY | SS |
|
$0.00 | $0.00 | 1 | ||
| 22 | 47277 | SCREW (3/4") | ACT | $1.20 | $1.18 | 4 | |||
| 24 | 39107 | LOCKWASHER | ACT | $1.40 | $1.37 | 3 | |||
| 25 | 21908 | NUT | ACT | $3.10 | $3.03 | 3 | |||
| 26 | 89535T1 | BRACKET | SS |
|
$0.00 | $0.00 | 1 | ||
| 27 | 34353 | SCREW (1") | ACT | $2.50 | $2.44 | 2 | |||
| 28 | 35048 | LOCKWASHER | ACT | $1.20 | $1.18 | 2 | |||
| 29 | 34714 | WASHER | ACT | $2.30 | $2.25 | 1 | |||
| 30 | 896091 | BRACE | SS |
|
$0.00 | $0.00 | 1 | ||
| 31 | 26487 | SCREW (1") | SS |
|
$0.00 | $0.00 | 1 | ||
| 32 | 35048 | LOCKWASHER | ACT | $1.20 | $1.18 | 1 | |||
| 33 | 34714 | WASHER | ACT | $2.30 | $2.25 | 1 | |||
| 34 | 35786 | SCREW (1") | ACT | $2.20 | $2.15 | 1 | |||
| 35 | 35048 | LOCKWASHER | ACT | $1.20 | $1.18 | 1 | |||
| 36 | 46335 | NUT | ACT | $2.83 | $2.77 | 1 | |||
| 37 | 328022 | PLUG (FOR WATER PUMP BODY) | 32802 | SS/ACT |
|
$7.30 | $7.12 | 1 | |
| 38 | 13457Q | BELT | 13457T | SS/ACT |
|
$28.25 | $27.74 | 1 |
