| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

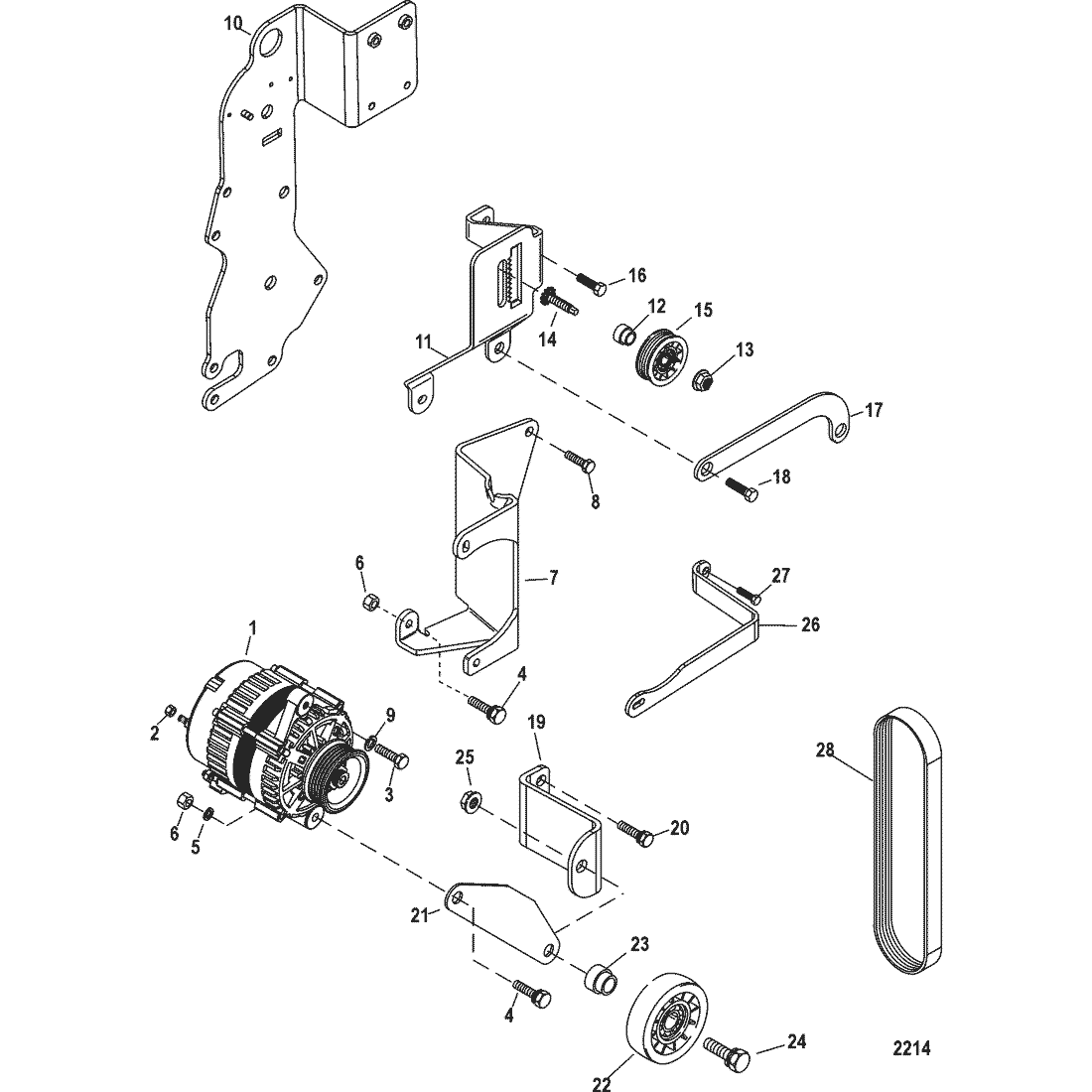

| 1 | 863077T | ALTERNATOR ASSEMBLY, Black, 65 Amp With 50mm Pulley | ACT |
|
$396.99 | $396.49 | 1 | ||
| 2 | 400212 | --NUT, (M6) Stainless Steel | ACT | $2.89 | $2.82 | 2 | |||
| 3 | 40001134 | SCREW, (M8 x 25) | ACT | $1.00 | $0.98 | 1 | |||
| 4 | 828213 | SCREW, (.312-18 x 1.500) Hex Flange | ACT | $1.80 | $1.76 | 2 | |||
| 5 | 57792 | WASHER | ACT | $1.40 | $1.37 | 2 | |||
| 6 | 8M0204646 | NUT, (.312-18) | 26484 | SS |
|
$4.99 | $4.88 | 2 | |
| 7 | 863211T01 | BRACKET, Alternator Mounting | ACT | $55.99 | $52.66 | 1 | |||
| 8 | 98261 | SCREW, (.375-16 x .750) | ACT | $1.20 | $1.18 | 2 | |||
| 9 | 20084 | WASHER, (.328 x .562 x .062) | ACT | $2.97 | $2.92 | 1 | |||
| 10 | 865188T01 | BRACKET | ACT |
|
$125.99 | $113.52 | 1 | ||
| 10 | 865188T | BRACKET | ACT |
|
$200.99 | $181.13 | 1 | ||
| 11 | 862083T | BRACKET, Idler Adjustment | ACT | $49.99 | $49.02 | 1 | |||
| 12 | 865193 | BUSHING | ACT | $7.59 | $7.42 | 1 | |||
| 13 | 859135 | NUT, (.437-20) Brass/Nickel Plated | ACT | $6.09 | $5.95 | 1 | |||
| 14 | 8M0113182 | PINION STUD, (.437-20) Stainless Steel | 8183812 | SS |
|
$22.49 | $22.02 | 1 | |
| 15 | 864625T | PULLEY (4.25 Inch Diameter) | ACT |
|
$65.49 | $61.63 | 1 | ||
| 15 | 807757T | PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter) | ACT |
|
$59.99 | $56.35 | 1 | ||
| 16 | 34353 | SCREW, (.375-16 x 1.00) | ACT | $2.59 | $2.53 | 2 | |||
| 17 | 862082T | BRACE, Power Steering | ACT | $8.79 | $8.59 | 1 | |||
| 18 | 40001189 | SCREW, (M10 x 20) | 40001188 | NLA |
|
$5.39 | $5.27 | 1 | |
| 19 | 864456T | BRACKET, Alternator Brace | ACT |
|
$18.99 | $18.53 | 1 | ||
| 20 | 34353 | SCREW, (.375-16 x 1.00) | ACT | $2.59 | $2.53 | 1 | |||
| 21 | 862085T | BRACE, Idler Bracket | ACT |
|
$20.99 | $20.54 | 1 | ||
| 22 | 8M6500024 | PULLEY | 865598 | SS |
|
$44.49 | $43.54 | 1 | |
| 23 | 865193 | BUSHING | ACT |
|
$7.59 | $7.42 | 1 | ||
| 24 | 56393 | SCREW, (.437-20 x 1.75) | ACT |
|
$2.99 | $2.92 | 1 | ||
| 25 | 859135 | NUT, (.437-20) Brass/Nickel Plated | ACT |
|
$6.09 | $5.95 | 1 | ||
| 26 | 862778 | BRACKET, Alternator Brace | ACT | $28.39 | $27.83 | 1 | |||
| 27 | 34353 | SCREW, (.375-16 x 1.00) | ACT | $2.59 | $2.53 | 1 | |||
| 28 | 865615Q04 | BELT | 865615004 | SS |
|
$123.49 | $110.96 | 1 | |
| 28 | 865615Q09 | BELT | 865615009 | SS |
|
$83.49 | $78.40 | 1 | |
| 28 | 865615Q03 | BELT | 865615003 | SS |
|
$163.99 | $147.78 | 1 | |
| 28 | 865615Q08 | BELT | 865615008 | SS |
|
$121.49 | $109.31 | 1 | |
| 28 | 865615Q01 | BELT, Serpentine | ACT |
|
$102.49 | $92.11 | 1 | ||
| 28 | 865615Q06 | BELT | 865615006 | SS |
|
$141.49 | $127.49 | 1 | |
| 28 | 865615Q08 | BELT | 865615008 | SS |
|
$121.49 | $109.31 | 1 | |
| 28 | 8M2018984 | BELT, Serpentine | 879194Q01 | SS |
|
$117.49 | $105.71 | 1 |
