Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

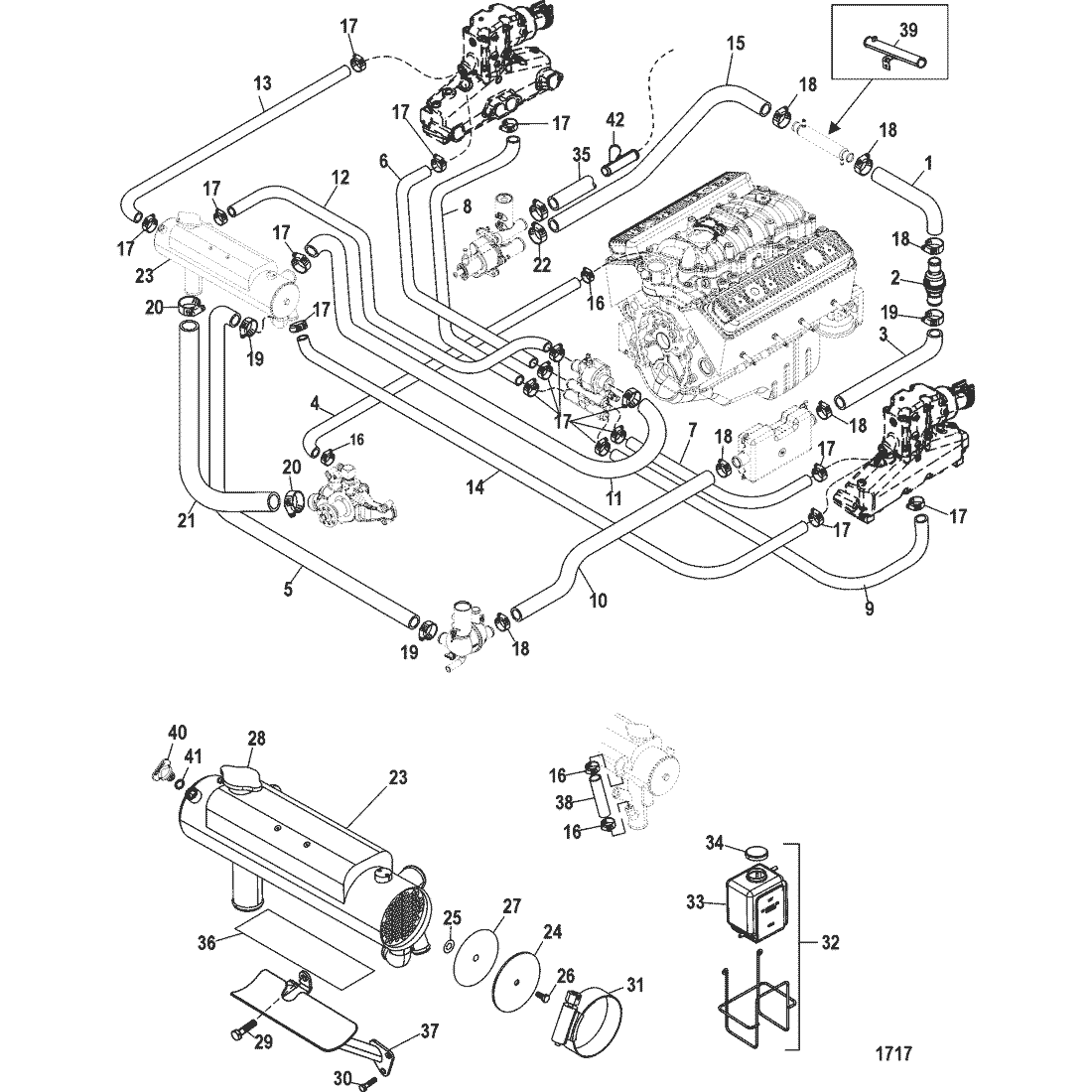

1 863489 HOSE, Power Steering to Check Valve ACT $88.99 $83.82 1
2 864206A1 CHECK VALVE ASSEMBLY ACT $68.49 $64.43 1
3 863623 HOSE, Check Valve to Fuel Cooler ACT $47.99 $47.00 1
4 864551 HOSE, Intake Bypass to Circulating Pump ACT $20.39 $19.97 1
5 864431 HOSE, Distribution Fitting to Heat Exchanger ACT $52.99 $49.92 1
6 864539 HOSE, Thermostat Housing to Upper Manifold ACT $29.69 $29.13 1
6 864539 HOSE, Thermostat Housing to Upper Manifold ACT $29.69 $29.13 1
6 864956 HOSE, Thermostat Housing to Upper Manifold ACT $39.99 $39.20 1
7 864552 HOSE, Thermostat Housing to Upper Manifold ACT $32.79 $32.16 1
7 864552 HOSE, Thermostat Housing to Upper Manifold ACT $32.79 $32.16 1
7 864954 HOSE, Thermostat Housing to Upper Manifold ACT $62.49 $58.70 1
8 864509 HOSE, Thermostat Housing to Lower Manifold ACT $63.49 $59.65 1
9 864508 HOSE, Thermostat Housing to Lower Manifold ACT $47.49 $46.50 1
10 863670 HOSE, Fuel Cooler to Accumulator Housing ACT $35.49 $34.82 1
11 864506 HOSE, Heat Exchanger to Thermostat Housing ACT $19.59 $19.23 1
12 864507 HOSE, Heat Exchanger to Thermostat Housing ACT $18.39 $18.01 1
13 864955 HOSE, Heat Exchanger to Starboard Elbow ACT $40.92 $40.18 1
14 864726 HOSE, Heat Exchanger to Port Elbow ACT $39.49 $38.79 1
14 864726 HOSE, Heat Exchanger to Port Elbow ACT $39.49 $38.79 1
14 864953 HOSE, Heat Exchanger to Port Elbow NLA $0.00 $0.00 1
15 863611 HOSE, Sea Pump to Power Steering Cooler ACT $81.49 $76.68 1
16 815504212 CLAMP, Worm Gear ACT $5.89 $5.76 1
17 815504216 CLAMP, Worm Gear (1.56 Diameter), Hose ACT $18.69 $18.24 1
18 8M0188622 CLAMP, Worm Gear (1.98 DIameter), Hose 815504222 SS $5.69 $5.56 1
19 815504228 CLAMP, Worm Gear, Hose ACT $17.29 $16.94 1
20 815504232 CLAMP, Worm Gear (2.50 Diameter), Hose ACT $8.89 $8.68 1
21 864886 HOSE, Heat Exchanger to Circulating Pump 864432 SS $45.99 $45.19 1
22 815504224 CLAMP, Worm Gear, Hose ACT $5.19 $5.08 1
23 864395T01 HEAT EXCHANGER, Closed Cooling 864395T SS $4,007.99 $3,589.71 1
24 864708 --COVER, End, Heat Exchanger ACT $104.99 $94.44 2
25 818679 --O-RING ACT $8.19 $8.00 4
26 94247 --SCREW, (.375-16 x .750) Stainless Steel ACT $1.50 $1.47 2
27 8M0084884 --SEAL 864707 SS $15.89 $15.51 2
28 8148791 CAP, Pressure ACT $60.49 $56.97 1
29 805559 SCREW, (.375-16 x .875) Stainless Steel ACT $10.29 $10.05 1
30 34353 SCREW, (.375-16 x 1.00) ACT $2.59 $2.53 3
31 815504396 CLAMP, Worm Gear, Heat Exchanger ACT $23.79 $23.33 1
32 71587A10 RECOVERY KIT, Coolant ACT $97.49 $91.59 1
NS 774572 --HOSE, (48.00 Inches Bulk) ACT $70.49 $66.16 1
33 71587A11 --BOTTLE, Plastic, Coolant Recovery Kit ACT $74.99 $70.32 1
34 72058 ----CAP, Coolant Recovery Bottle ACT $11.29 $11.02 1
35 8M0062666 HOSE, (96.00 Inches Bulk), Sea Water Pump to Water Pick Up 1743579 SS $220.99 $199.09 1
36 18431 PAD, Heat Exchanger ACT $34.99 $34.37 1
37 864494T BRACKET, Cooler ACT $471.49 $436.36 1
38 8M0171028 HOSE 864533 SS $30.69 $30.12 1
39 863841T TUBE, Water, Brass ACT $166.49 $150.03 1
40 8M0119211 PLUG KIT, (.500-13) Royal Blue 806608A1 SS $10.19 $9.95 1
41 32509 --O-RING, (.489 x .070) ACT $2.39 $2.33 1
42 864727 FITTING, Y, (3) 1-1/4 In. OD Hose Barbs ACT $32.99 $32.33 1
