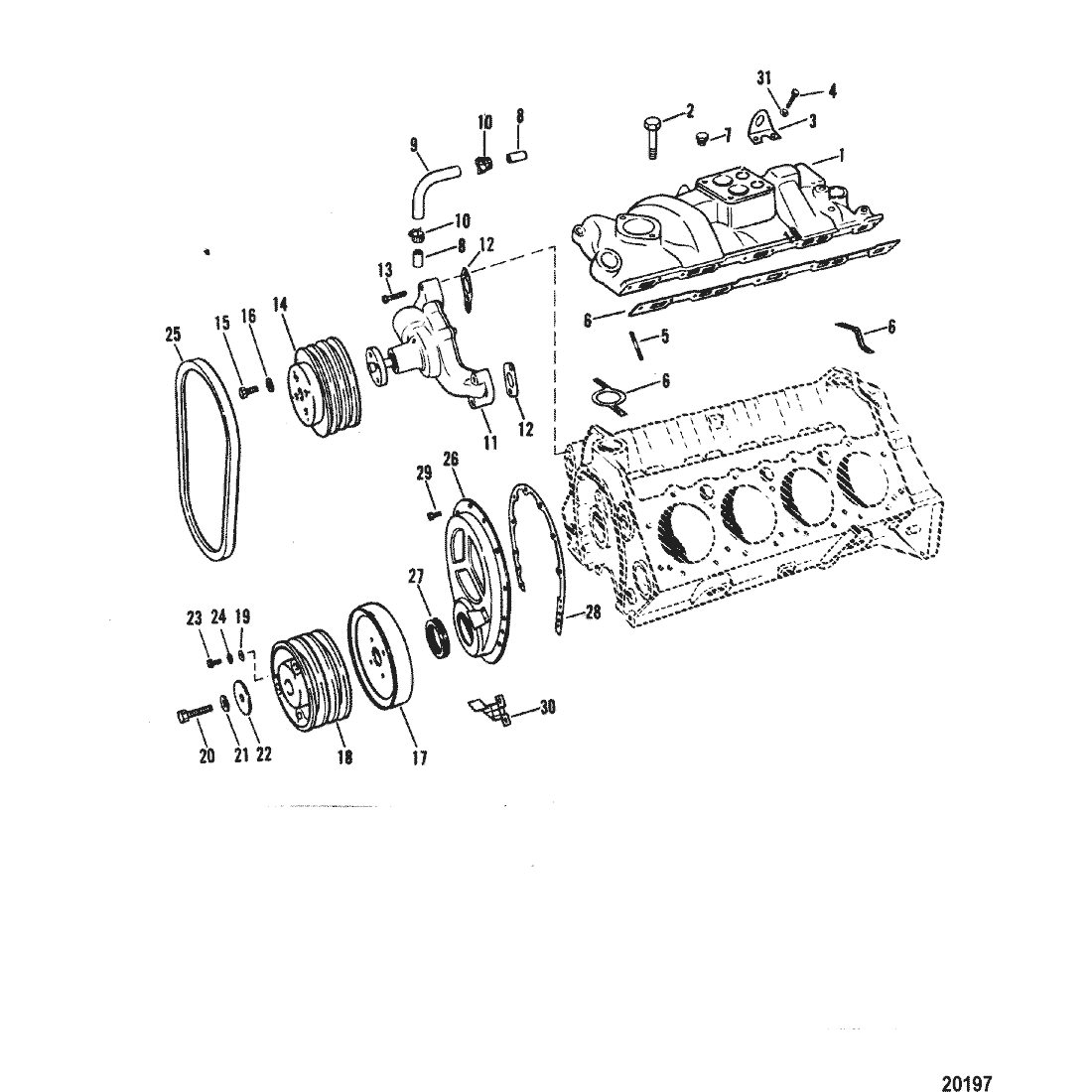

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 811575T | MANIFOLD, Intake | 59974 | SS/ACT |
 |
$1,144.93 | $1,049.58 | 1 | |
| 3 | 64628 | LIFTING EYE | ACT | $76.42 | $73.50 | 1 | |||
| 4 | 34354 | SCREW, (.375-16 x 1.50), LIFTING EYE | ACT | $2.30 | $2.25 | 2 | |||
| 6 | 8M0050224 | GASKET SET, INTAKE MANIFOLD | 65184 | SS/ACT |
|
$60.75 | $58.43 | 1 | |
| 7 | 75983 | PLUG, WATER PUMP/INTAKE MANIFOLD | ACT | $7.90 | $7.71 | 2 | |||
| 8 | 806242 | CONNECTOR, INTAKE PUMP/INTAKE MANIFOLD | 66201 | SS/ACT |
|
$70.50 | $67.81 | 2 | |
| 9 | 99520 | HOSE, BY-PASS - WATER PUMP/INTAKE MANIFOLD | 66206 | SS/ACT |
|
$26.25 | $25.78 | 1 | |
| 10 | 8M0204717 | CLAMP, BY-PASS HOSE | 43510 | SS/ACT |
|
$6.60 | $6.44 | 2 | |
| 11 | 8M0113735 | PUMP ASSEMBLY, Water | 17670 | SS/ACT |
|
$266.58 | $251.05 | 1 | |
| 12 | 49110 | --GASKET, Circulating Water Pump Mount | ACT | $3.80 | $3.71 | 2 | |||
| 13 | 32132 | SCREW, (.375-16 x 1.750), WATER PUMP TO CYLINDER BLOCK | ACT | $2.90 | $2.83 | 4 | |||
| 14 | 15120T | PULLEY, (5.5 In. Diameter), WATER PUMP (3 GROOVE) | ACT |
|
$449.99 | $414.72 | 1 | ||
| 15 | 47277 | SCREW, (.312-24 x .750), PULLEY TO WATER PUMP | ACT | $1.20 | $1.18 | 4 | |||
| 16 | 39107 | LOCKWASHER, (.312-24), WATER PUMP PULLEY SCREW | ACT | $1.40 | $1.37 | 4 | |||
| 17 | 816729 | BALANCER, HARMONIC - CRANKSHAFT | SS |
|
$0.00 | $0.00 | 1 | ||
| 18 | 90081T | PULLEY, CRANKSHAFT | SS |
|
$0.00 | $0.00 | 1 | ||
| 19 | 34714 | WASHER, PULLEY BOLT | ACT | $2.30 | $2.25 | 3 | |||
| 20 | 14758 | BOLT, PULLEY AND HARMONIC BALANCER | SS |
|
$0.00 | $0.00 | 1 | ||
| 21 | 14759 | LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT | SS |
|
$0.00 | $0.00 | 1 | ||
| 22 | 49103 | WASHER, PULLEY AND BALANCER BOLT | ACT | $22.50 | $22.10 | 1 | |||
| 23 | 53734 | SCREW, (.375-16 x 3.00), PULLEY | SS |
|
$0.00 | $0.00 | 3 | ||
| 24 | 35048 | LOCKWASHER, (.375), PULLEY BOLT | ACT | $1.20 | $1.18 | 3 | |||
| 25 | 78200Q1 | BELT, (47 Inches), ALTERNATOR DRIVE (47") | 78200A1 | SS/ACT |
|
$33.25 | $32.65 | 1 | |
| 26 | 66215 | COVER ASSEMBLY, CRANKCASE FRONT | SS |
|
$0.00 | $0.00 | 1 | ||
| 27 | 8219471 | --SEAL, Oil, CRANKCASE FRONT COVER | 49154 | SS/ACT |
|
$38.42 | $37.73 | 1 | |
| 28 | 54529 | GASKET, Timing Cover, CRANKCASE FRONT END COVER | ACT | $14.00 | $13.66 | 1 | |||
| 29 | 8M0040582 | SCREW, CRANKCASE FRONT END COVER TO BLOCK | 35366 | SS/ACT |
|
$15.10 | $14.73 | 10 | |
| 30 | 59966 | POINTER, TIMING | SS |
|
$0.00 | $0.00 | 1 | ||
| 31 | 35048 | LOCKWASHER, (.375), LIFTING EYE SCREW | ACT | $1.20 | $1.18 | 2 | |||
| - | 65184A88 | GASKET SET, Engine | ACT | $656.14 | $617.30 | 1 |
