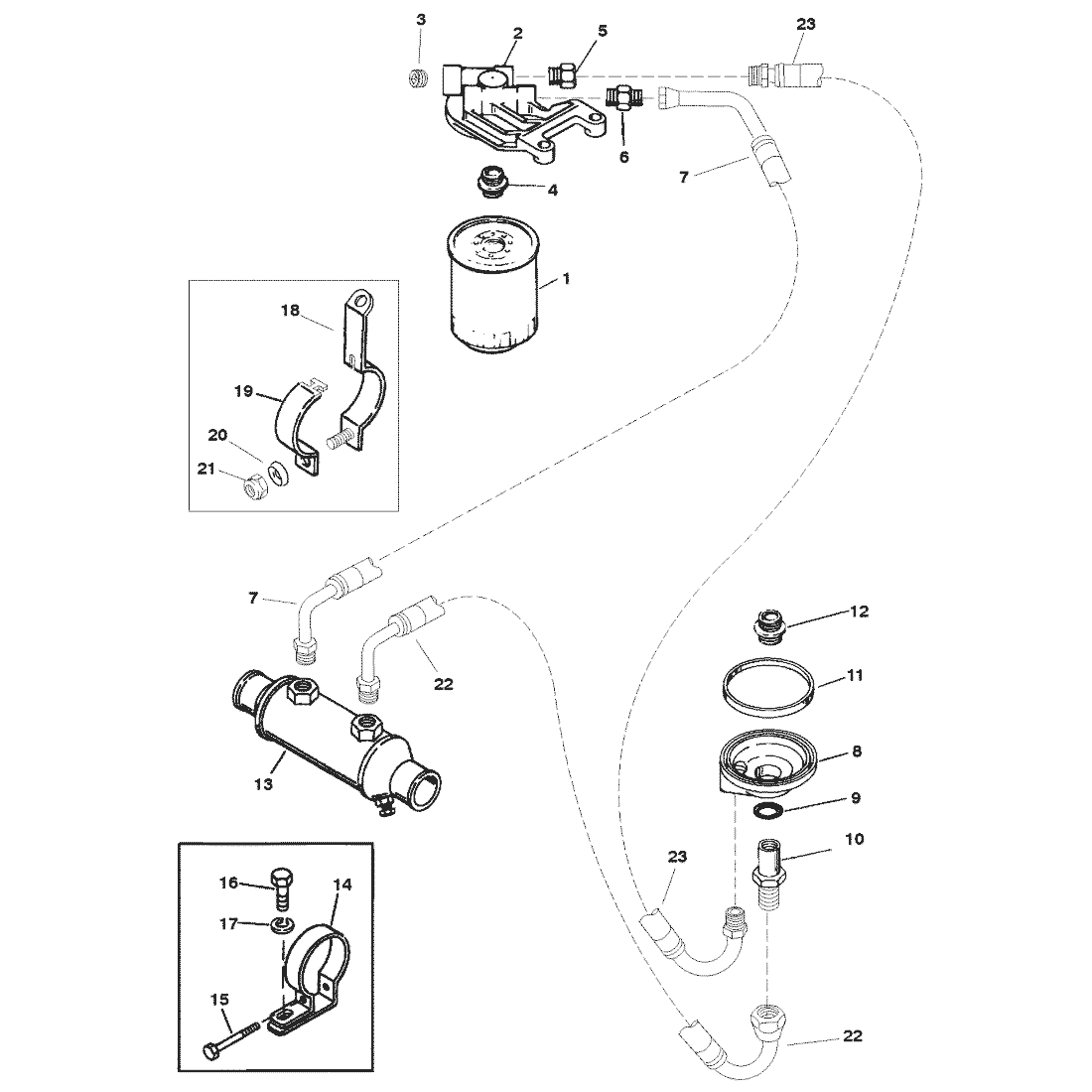

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 866340Q03 | FILTER-OIL | 14957 | SS |
|
$14.19 | $13.85 | 1 | |
| 2 | 817403A4 | BRACKET ASSEMBLY-OIL FILTER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 384071 | --PLUG-PIPE (1/2-14) | ACT | $14.99 | $14.63 | 2 | |||
| 4 | 814822 | --FITTING-OIL FILTER | ACT | $35.99 | $35.35 | 1 | |||
| 5 | 805563 | FITTING | ACT | $17.89 | $17.46 | 1 | |||
| 6 | 806186 | FITTING | ACT | $56.99 | $53.58 | 1 | |||
| 7 | 8062404 | HOSE-BRACKET TO OIL COOLER | ACT |
|
$79.49 | $74.63 | 1 | ||
| 7 | 8062401 | HOSE-BRACKET TO OIL COOLER | ACT |
|
$163.99 | $147.85 | 1 | ||
| 7 | 8062403 | HOSE-BRACKET TO OIL COOLER | ACT |
|
$116.99 | $105.10 | 1 | ||
| 8 | 818400A1 | ADAPTOR | ACT | $88.99 | $83.74 | 1 | |||
| 9 | 42077 | SEAL | ACT | $12.49 | $12.19 | 1 | |||
| 10 | 806121 | FITTING | ACT | $31.19 | $30.61 | 1 | |||
| 11 | 91892 | GASKET-ADAPTOR | SS |
|
$0.00 | $0.00 | 1 | ||
| 12 | 805632 | FITTING-ADAPTOR | ACT | $47.99 | $47.00 | 1 | |||
| 13 | 806426T | COOLER-ENGINE OIL | ACT | $461.99 | $427.70 | 1 | |||
| 14 | 65970T1 | BRACKET-OIL COOLER | ACT |
|
$17.89 | $17.46 | 1 | ||
| 15 | 41408 | SCREW (#10-32 X 1-1/2 IN.) | ACT |
|
$3.39 | $3.30 | 1 | ||
| 16 | 34354 | SCREW (3/8-16 X 1-1/2 IN.) | ACT |
|
$2.39 | $2.33 | 1 | ||
| 17 | 35048 | LOCKWASHER (3/8 IN.) | ACT |
|
$1.20 | $1.18 | 1 | ||
| 18 | 807402T1 | BRACKET-OIL COOLER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 807445T | CLAMP | ACT |
|
$21.89 | $21.44 | 1 | ||
| 20 | 35462 | WASHER | ACT |
|
$1.80 | $1.76 | 1 | ||
| 21 | 8267088 | NUT (1/4-20) | 72008 | SS |
|
$1.70 | $1.66 | 1 | |
| 22 | 8062611 | HOSE-COOLER TO ADAPTOR | ACT |
|
$126.99 | $114.12 | 1 | ||
| 22 | 806125 | HOSE-COOLER TO ADAPTOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 8061787 | HOSE-BRACKET TO ADAPTOR | ACT |
|
$169.49 | $152.58 | 1 | ||
| 23 | 8061784 | HOSE-BRACKET TO ADAPTOR | ACT |
|
$194.99 | $175.72 | 1 | ||
| - | 850470A96 | GASKET SET | ACT | $1,076.49 | $964.17 | 1 |
