Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

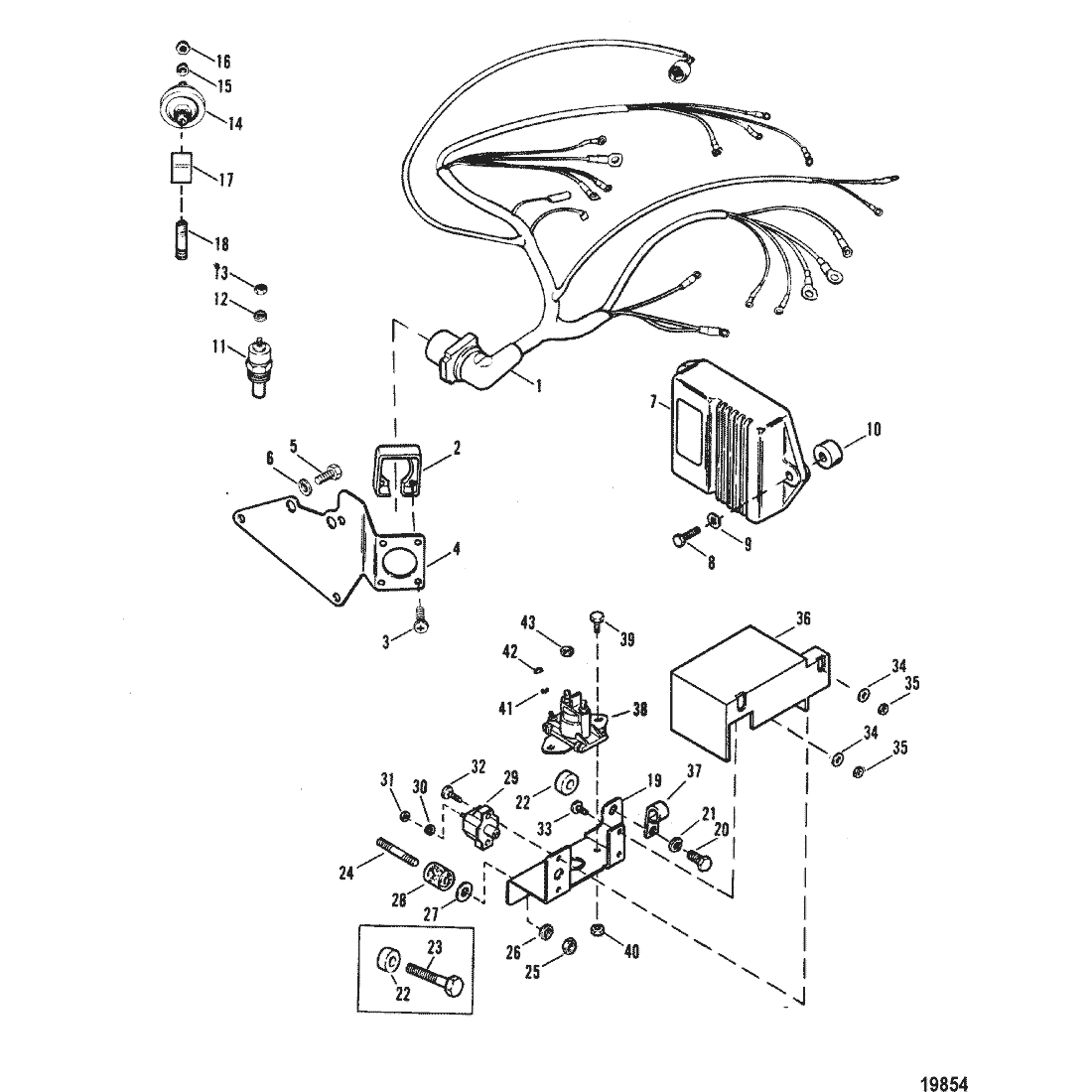

1 93947A8 HARNESS ASSEMBLY NLA $0.00 $0.00 1
2 26079A2 PLATE KIT, Wire Harness Mount ACT $29.99 $29.38 1
2 26079A2 PLATE KIT, Wire Harness Mount ACT $29.99 $29.38 1
3 34696 SCREW, (#8-32 x .750), WIRING HARNESS PLATE NLA $0.00 $0.00 4
3 15001 --SCREW, (#8-16 x .875), PLATE ACT $3.29 $3.21 4
4 98493A2 BRACKET, MOUNTING NLA $0.00 $0.00 1
5 54615 SCREW, (.250-20 x .625), MOUNTING BRACKET NLA $0.00 $0.00 3
6 26992 LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREW ACT $1.20 $1.18 3
7 15899A1 IGNITION AMPLIFIER (W/HARNESS 84-15275A1) (305CID) NLA $0.00 $0.00 1
7 15899A1 IGNITION MODULE ASSEMBLY (W/HARNESS 84-15275A1) (350CID) 814295A1 SS $0.00 $0.00 1
8 69093 SCREW, (.250-20 x 1.50), IGNITION AMPLIFIER NLA $0.00 $0.00 3
9 26992 LOCKWASHER, (.250) Stainless Steel, IGNITION AMPLIFIER SCREW ACT $1.20 $1.18 3
10 92152T SPACER, (.27 x .75 x .38), IGNITION AMPLIFIER SCREW 92152 SS $6.89 $6.73 3
11 806490T SENDER ASSEMBLY, Water Temperature (3/8-18) 97257A1 SS $41.49 $40.58 1
11 97258A1 SENDER ASSEMBLY (1/2-14) ACT $57.99 $54.62 1
11 49734 SENDER ASSEMBLY, Water Temperature (DUAL) 49734A1 SS $90.49 $85.15 1
12 26996 --LOCKWASHER, (#10) Stainless Steel, WATER TEMPERATURE SENDER TERMINAL ACT $1.20 $1.18 1
13 68219 --NUT, (#10-32) Stainless Steel, WATER TEMPERATURE SENDER TERMINAL ACT $2.99 $2.92 1
14 8M0068784 SENDER 90806 SS $133.49 $120.13 1
14 37293T SENDER ASSEMBLY, Oil Pressure (DUAL) 37293 SS $205.99 $185.41 1
15 26996 --LOCKWASHER, (#10) Stainless Steel, OIL PRESSURE SENDER TERMINAL ACT $1.20 $1.18 1
16 68219 --NUT, (#10-32) Stainless Steel, OIL PRESSURE SENDER TERMINAL ACT $2.99 $2.92 1
17 46932 ELBOW, OIL PRESSURE SENDER NLA $0.00 $0.00 1
18 885153 NIPPLE, OIL PRESSURE SENDER 42554 SS $23.59 $23.16 1
19 41170T BRACKET, MOUNTING NLA $0.00 $0.00 1
20 98260 SCREW, (.375-16 x .620), MOUNTING BRACKET (STANDARD COOLING) ACT $1.10 $1.08 1
20 37612 SCREW, (.375-16 x 1.250), MOUNTING BRACKET (CLOSED COOLING) ACT $2.49 $2.43 1
21 35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW ACT $1.20 $1.18 1
22 91034 SPACER, (.380 x 1.00 x .530), MOUNTING SCREW OR STUD (CLOSED COOLING) ACT $23.29 $22.83 2
23 35787 SCREW, (.375-16 x 2.250), MOUNTING BRACKET (CLOSED COOLING) ACT $2.79 $2.72 1
24 245851 STUD, MOUNTING BRACKET (STANDARD COOLING) NLA $0.00 $0.00 1
25 46335 NUT, MOUNTING BRACKET STUD (STANDARD COOLING) 24883 SS $2.97 $2.92 1
26 35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW OR STUD ACT $1.20 $1.18 1
27 20086 WASHER, (.390 x .620 x .060), MOUNTING BRACKET SCREW OR STUD ACT $1.70 $1.66 1
28 15895 SPACER, (.38 x 1.00 x 1.44), MOUNTING BRACKET SCREW OR STUD NLA $0.00 $0.00 1
29 11178A01 BREAKER, Circuit - 50 Ampere (50 AMP) 11178 SS $121.49 $109.31 1
30 26996 LOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINAL ACT $1.20 $1.18 2
31 27164 NUT AND LOCKWASHER, (#10-32), CIRCUIT BREAKER TERMINAL ACT $1.00 $0.98 2
32 45862 SCREW, (#10-32 x .875), CIRCUIT BREAKER ACT $1.40 $1.37 2
33 71405 SCREW, (#10-32 x .440), INSULATOR NLA $0.00 $0.00 1
34 30164 WASHER, (.192 x .375 x .0312) Stainless Steel, CIRCUIT BREAKER SCREW ACT $2.49 $2.43 3
35 46438 NUT, (#10-32), INSULATOR SCREW ACT $5.79 $5.66 3
36 96819T INSULATOR, CIRCUIT BREAKER NLA $0.00 $0.00 1
37 78945 J CLAMP, Harness Support-BRACKET SCREW ACT $5.19 $5.08 1
38 8M0185149 SOLENOID ASSEMBLY, Starter 96054 SS $38.99 $38.14 1
39 96138 SCREW, (1/4-28 x 5/8), STARTER SOLENOID (5/8") 47910 SS $0.00 $0.00 2
40 20088 NUT, STARTER SOLENOID SCREW NLA $0.00 $0.00 2
41 26992 LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID TERMINAL ACT $1.20 $1.18 2
42 26419 NUT, (#8-32) Brass, STARTER SOLENOID TERMINAL ACT $1.70 $1.66 2
43 94330 NUT, (.250-20) Brass, STARTER SOLENOID TERMINAL ACT $1.70 $1.66 2
- 11149A5 HARNESS ASSEMBLY, Adapter NLA $0.00 $0.00 1
