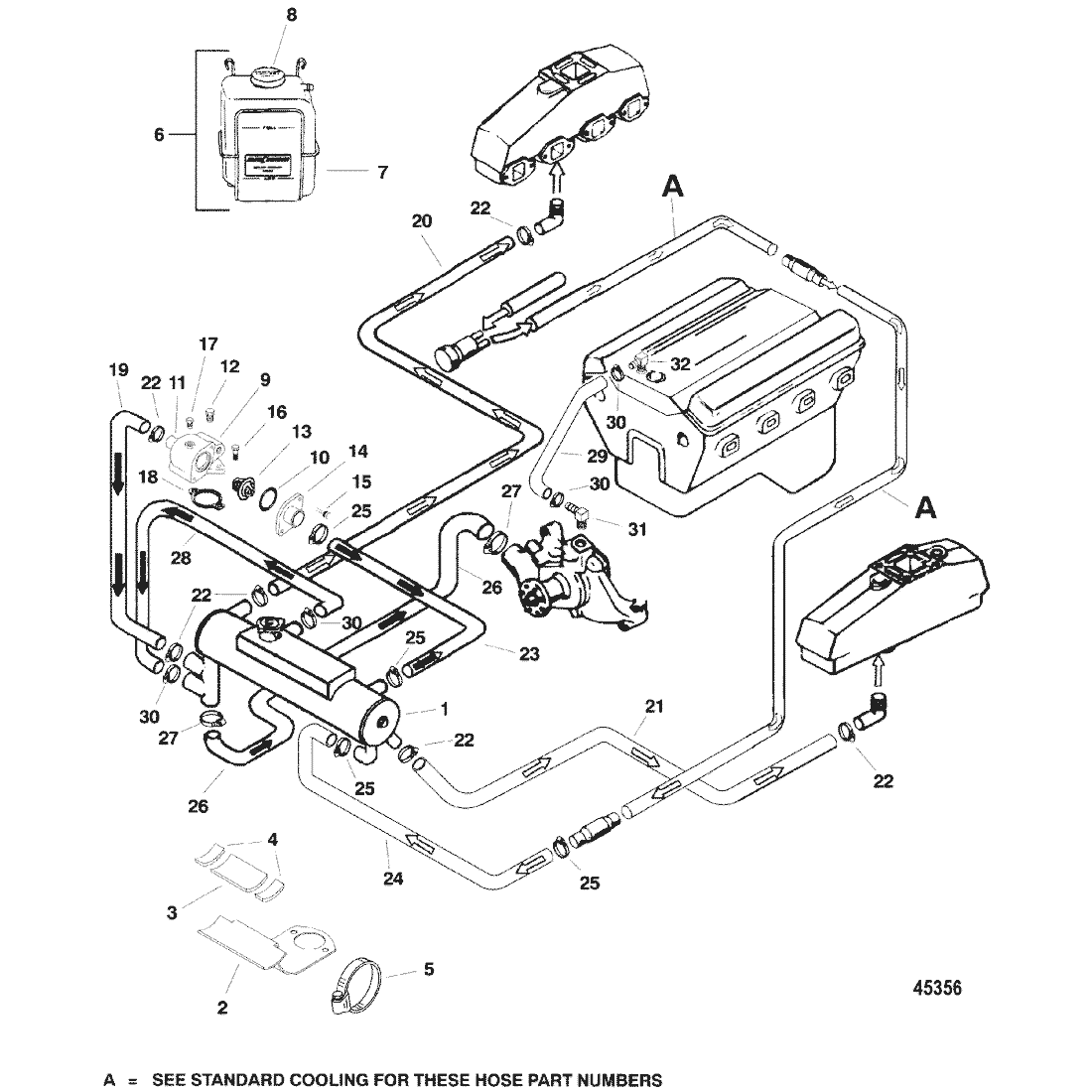

- 71587A10 Coolant Recovery System is sold as complete kit only. The component parts can be purchased locally.
| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 860234A1 | HEAT EXCHANGER | ACT |
 |
$2,308.50 | $2,116.25 | 1 | ||
| 2 | 860326A1 | BRACKET ASSEMBLY, Heat Exchanger | ACT |
|
$198.42 | $186.85 | 1 | ||
| 3 | 18431 | --PAD | ACT | $33.67 | $33.06 | 1 | |||
| 4 | 772233 | --PAD | ACT | $5.80 | $5.66 | 2 | |||
| 5 | 815504388 | CLAMP, Worm Gear | ACT | $24.83 | $24.39 | 2 | |||
| 6 | 71587A10 | RECOVERY KIT, Coolant | ACT |
|
$93.50 | $89.93 | 1 | ||
| - | 774572 | --HOSE, (48.00 Inches Bulk) | ACT | $67.58 | $65.01 | 1 | |||
| 7 | 71587A11 | --BOTTLE, Plastic | ACT |
|
$71.83 | $69.09 | 1 | ||
| 8 | 72058 | ----CAP | ACT | $10.90 | $10.63 | 1 | |||
| 9 | 861188A1 | HOUSING ASSEMBLY, Thermostat | ACT |
|
$316.67 | $298.21 | 1 | ||
| 10 | 8071341 | --SEAL | ACT |
|
$15.00 | $14.63 | 1 | ||
| 11 | 52020 | --SLEEVE, Hose | SS |
|
$0.00 | $0.00 | 1 | ||
| 12 | 8M0180565 | --PLUG, Pipe (.375-18) Brass | 32803 | SS/ACT |
|
$7.70 | $7.51 | 1 | |
| 13 | 991551 | THERMOSTAT | ACT | $36.25 | $35.60 | 1 | |||
| 14 | 807075A1 | COVER, Thermostat | ACT | $221.25 | $208.36 | 1 | |||
| 15 | 29198 | SCREW AND LOCKWASHER, (.312-18 x .875) | ACT | $4.40 | $4.30 | 2 | |||
| 16 | 8M0113174 | SCREW, (.375-16 x 1.25) | ACT | $7.00 | $6.83 | 2 | |||
| 17 | 328022 | PLUG, Pipe (.125-27) Brass | ACT | $7.30 | $7.12 | 1 | |||
| 18 | 530451 | GASKET, Thermostat Housing | ACT |
|
$5.50 | $5.37 | 1 | ||
| 19 | 860380 | HOSE, Thermostat by-pass | ACT |
|
$36.75 | $36.09 | 1 | ||
| 20 | 860328 | HOSE, Heat Exchanger to Exhaust Manifold | ACT |
|
$43.92 | $43.13 | 1 | ||
| 21 | 860327 | HOSE, Heat Exchanger to Exhaust Manifold | ACT |
|
$50.42 | $48.50 | 1 | ||
| 22 | 815504220 | CLAMP, Worm Gear | ACT | $7.30 | $7.12 | 6 | |||
| 23 | 807691 | HOSE, Thermostat Housing to Heat Exchanger | ACT | $36.75 | $36.09 | 1 | |||
| 24 | 860332 | HOSE, Oil Cooler to Heat Exchanger | ACT |
|
$53.67 | $51.62 | 1 | ||
| 25 | 815504222 | CLAMP, Worm Gear (1.98 DIameter) | ACT | $6.20 | $6.05 | 4 | |||
| 26 | 861059 | HOSE, Water Pump to Heat Exchanger | ACT |
|
$73.25 | $70.46 | 1 | ||
| 27 | 815504232 | CLAMP, Worm Gear (2.50 Diameter) | ACT | $8.60 | $8.39 | 2 | |||
| 28 | 8M0062634 | HOSE, (44.00 Inches Bulk), Heat Exchanger to Heat Exchanger | 4285069 | SS/ACT |
|
$39.42 | $38.71 | 1 | |
| 29 | 99520 | HOSE, Water Pump To Intake Manifold | 860482 | SS/ACT |
|
$26.25 | $25.78 | 1 | |
| 30 | 815504212 | CLAMP, Worm Gear | ACT | $5.70 | $5.56 | 4 | |||
| 31 | 860346 | FITTING, Elbow (90 Degree) (.750) | ACT |
|
$27.08 | $26.60 | 1 | ||
| 32 | 808042 | FITTING, Elbow (90 Degrees) (.50 NPT x .75 Bars) | ACT | $28.25 | $27.74 | 1 | |||
| - | 75611A96 | GASKET SET | ACT | $647.29 | $608.97 | 1 |
