Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

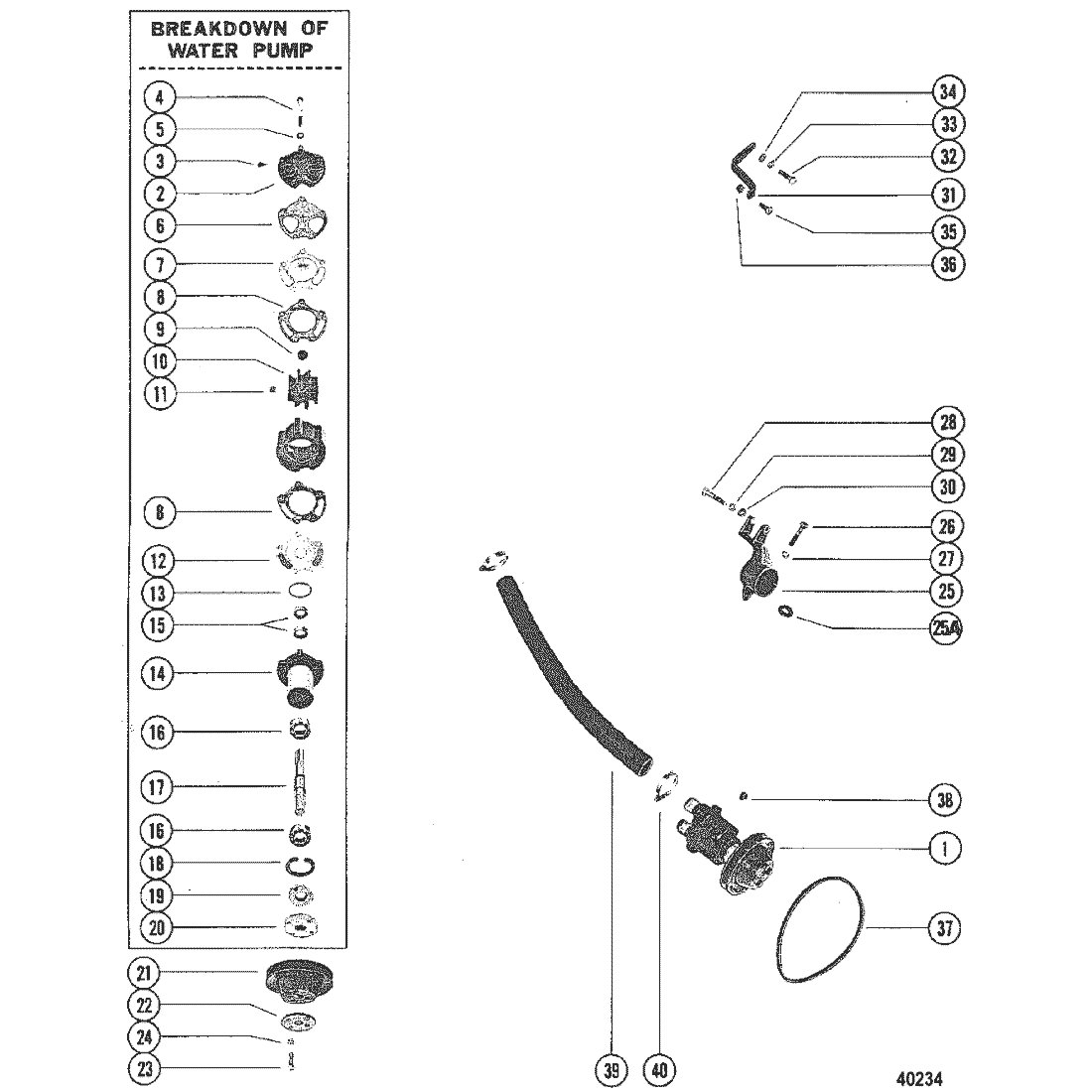

1 72774A32 PUMP ASSEMBLY, Sea Water - Complete 72774A11 SS $765.49 $719.78 1
- 72774A40 --BODY, WATER PUMP 72774 SS $0.00 $0.00 1
2 87631A5 --COVER, WATER PUMP 87631 SS $141.49 $133.24 1
3 28642 --SCREW, (#2 x 0.25), WATER PUMP SLEEVE ACT $0.20 $0.20 4
4 63328 --SCREW, (.312-18 x 3.00), COVER TO BODY NLA $7.01 $6.85 5
5 20084 --WASHER, (.328 x .562 x .062), COVER TO BODY SCREW ACT $2.97 $2.92 5
6 8052151 --GASKET, COVER TO OUTER WEAR PLATE 72779 SS $9.59 $9.37 1
7 94916 --WEAR PLATE 72777 SS $27.79 $27.25 1
8 94914 --GASKET, BODY TO WEAR PLATE 72780 SS $3.69 $3.59 2
9 59504 --PLUG, IMPELLER ACT $13.89 $13.56 1
10 59362T1 --IMPELLER ASSEMBLY 59362A1 SS $45.99 $45.09 1
11 8M0032837 --KEY, IMPELLER DRIVE 56662 SS $5.69 $5.56 1
12 8M0204674 --WEAR PLATE 72778 SS $27.49 $26.93 1
13 37340 --O-RING, PUMP HOUSING TO INNER WEAR PLATE ACT $5.69 $5.56 1
14 94913A1 --HOUSING ASSEMBLY, Water Pump 71497A2 SS $391.49 $374.08 1
15 90562 ----SEAL, Oil, WATER PUMP SHAFT 23300 SS $18.89 $18.50 2
16 72961 ----BEARING, Ball, WATER PUMP SHAFT ACT $16.99 $16.62 2
17 59501A1 ----SHAFT, WATER PUMP 59501 SS $208.99 $196.58 1
18 23720 ----RING, Retaining, BALL BEARING RETAINING ACT $2.99 $2.92 1
19 72785 ----SEAL, WATER PUMP SAHFT ACT $22.19 $21.77 1
20 47530 --HUB, WATER PUMP PULLEY ACT $65.49 $62.95 1
21 73798A1 PULLEY, WATER PUMP 73798 SS $0.00 $0.00 1
22 58265 RING, Clamping, PUMP PULLEY NLA $0.00 $0.00 1
23 47277 SCREW, (.312-24 x .750), PULLEY TO WATER PUMP ACT $1.20 $1.18 4
24 39107 LOCKWASHER, (.312-24), WATER PUMP PULLEY SCREW ACT $1.50 $1.47 4
25 47488A1 BRACKET, WATER PUMP 47488 SS $0.00 $0.00 1
25A 79643 WASHER, BRACE SCREW (FOR SLOT) NLA $0.00 $0.00 1
26 34354 SCREW, (.375-16 x 1.50), WATER PUMP BRACKET CLAMPING ACT $2.39 $2.33 1
27 35048 LOCKWASHER, (.375), WATER PUMP BRACKET SCREW ACT $1.20 $1.18 1
28 34353 SCREW, (.375-16 x 1.00), WATER PUMP BRACKET TO ENGINE ACT $2.59 $2.53 1
29 35048 LOCKWASHER, (.375), WATER PUMP BRACKET SCREW ACT $1.20 $1.18 1
30 34714 WASHER, WATER PUMP BRACKET SCREW ACT $2.39 $2.33 1
31 47544 BRACE, WATER PUMP ADJUSTING NLA $0.00 $0.00 1
32 34353 SCREW, (.375-16 x 1.00), BRACE TO STEERING PUMP ACT $2.59 $2.53 1
33 35048 LOCKWASHER, (.375), ADJUSTING BRACE SCREW ACT $1.20 $1.18 1
34 34714 WASHER, ADJUSTING BRACE SCREW ACT $2.39 $2.33 1
35 35786 SCREW, (.375-24 x 1.00), ADJUSTING BRACE TO BRACKET SCREW ACT $0.80 $0.79 1
36 46335 NUT, ADJUSTING BRACE SCREW 24883 SS $2.97 $2.92 1
37 74271Q BELT, WATER PUMP 74271 SS $38.49 $37.62 1
38 328022 PLUG, Pipe (.125-27) (FOR WATER PUMP BODY) 32802 SS $7.59 $7.42 1
39 86216 HOSE, MOLDED - WATER PUMP TO TRANSMISSION COOLER NLA $0.00 $0.00 1
40 815504220 CLAMP, HOSE ATTACHING 32780 SS $7.59 $7.42 2
